Product Description
- Adjustable Combo Mount Sway Towing Kit: Black Combo Ball Mount Hitch w/ Welded Sway Tabs & Sway Control Arm Kit.
- Great for Reducing Trailer Sway: Air hitch absorbs road shock and smooths out the ride and the friction sway bar helps prevent trailer sway. Use 1 system for trailers under 10,000 lbs and 2 sway kits for trailers over 10,000 lbs. Adjustable Friction Bar: Can be adjusted to fine-tune your towing experience.
- Adjustable Drop Hitch: Choose either a 2″, 2-1/2″ or 3″ receiver hitch shank.

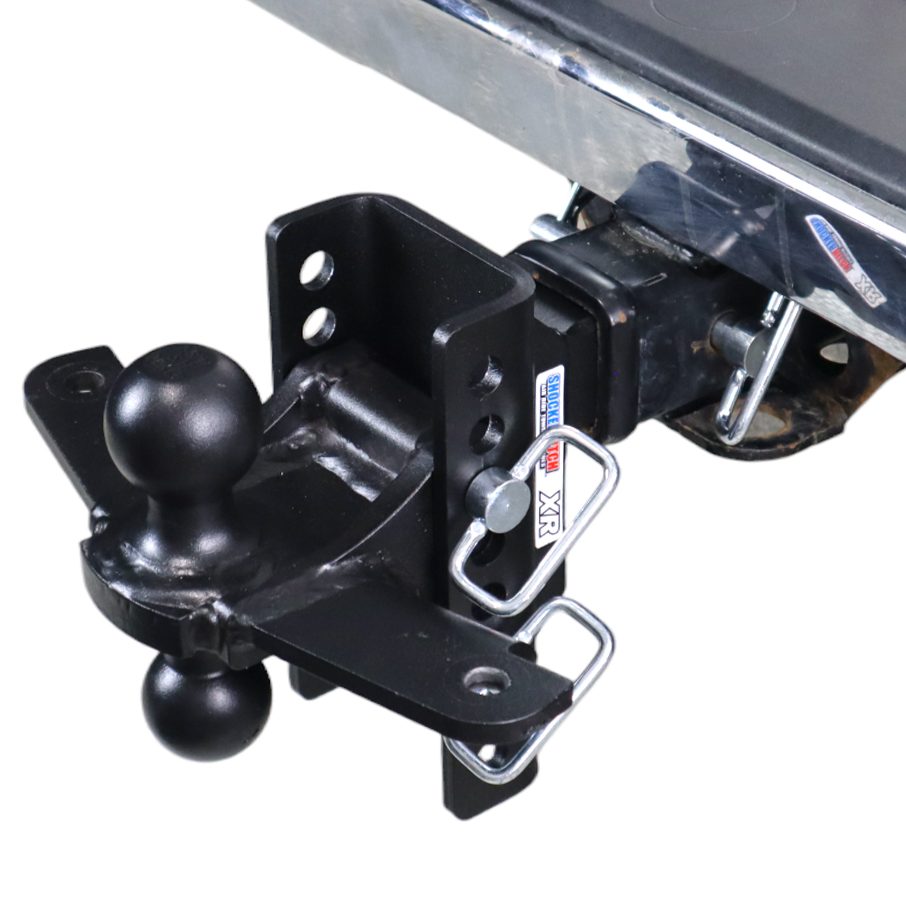

- Black Sway Tab Combo Ball Mount: 1 piece construction 2″ and 2-5/16″ with a black powder coat finish trailer ball with welded sway tabs.

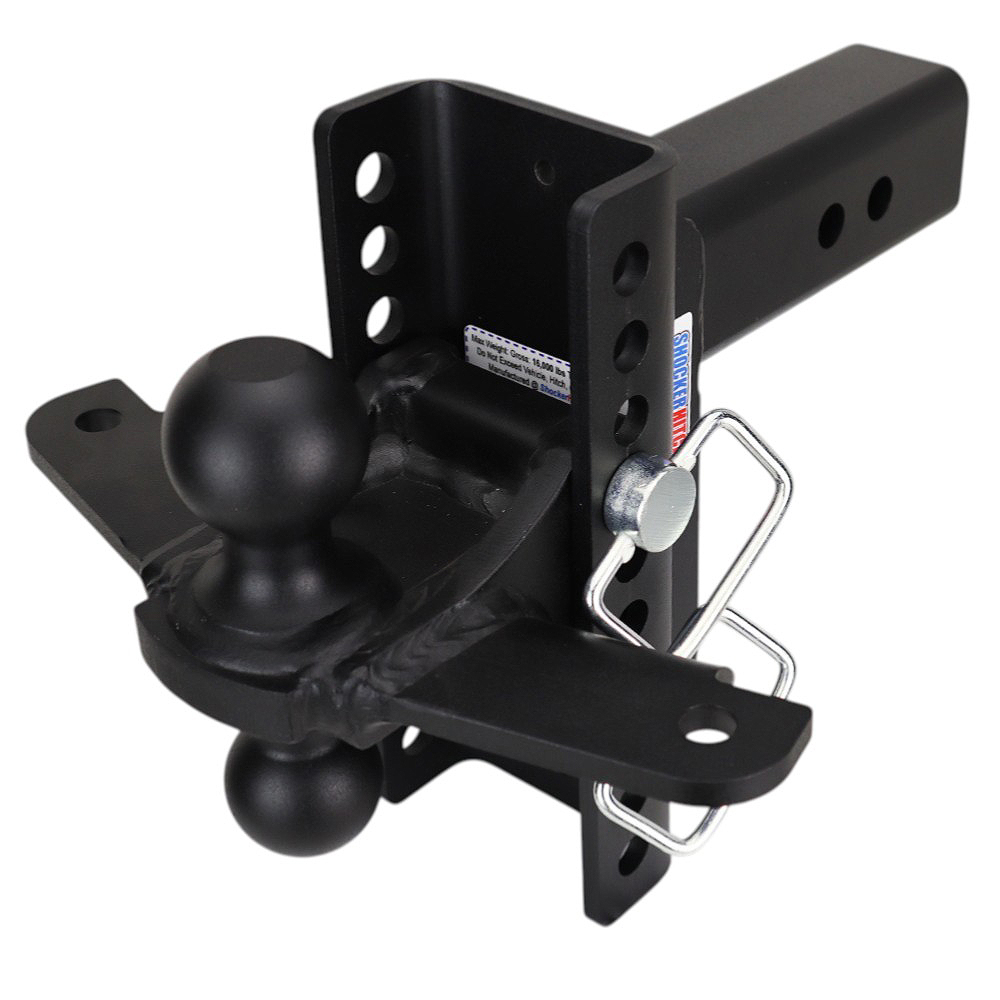

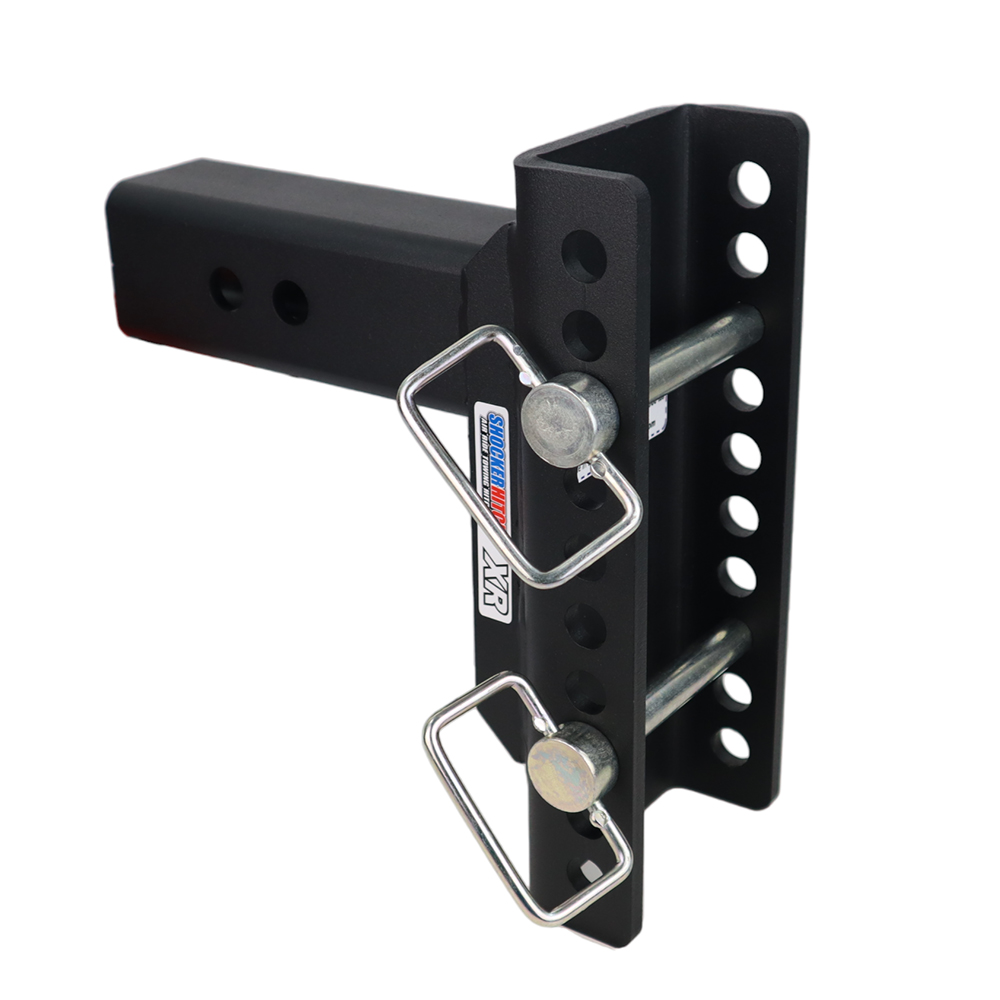

- 8 or 10 Adjustment Holes: It has 8″ to 10″ of height adjustment range from 4″ of rise to 4″ or 5-1/2″ rise to 5-1/2″ of drop depending on hitch selected.

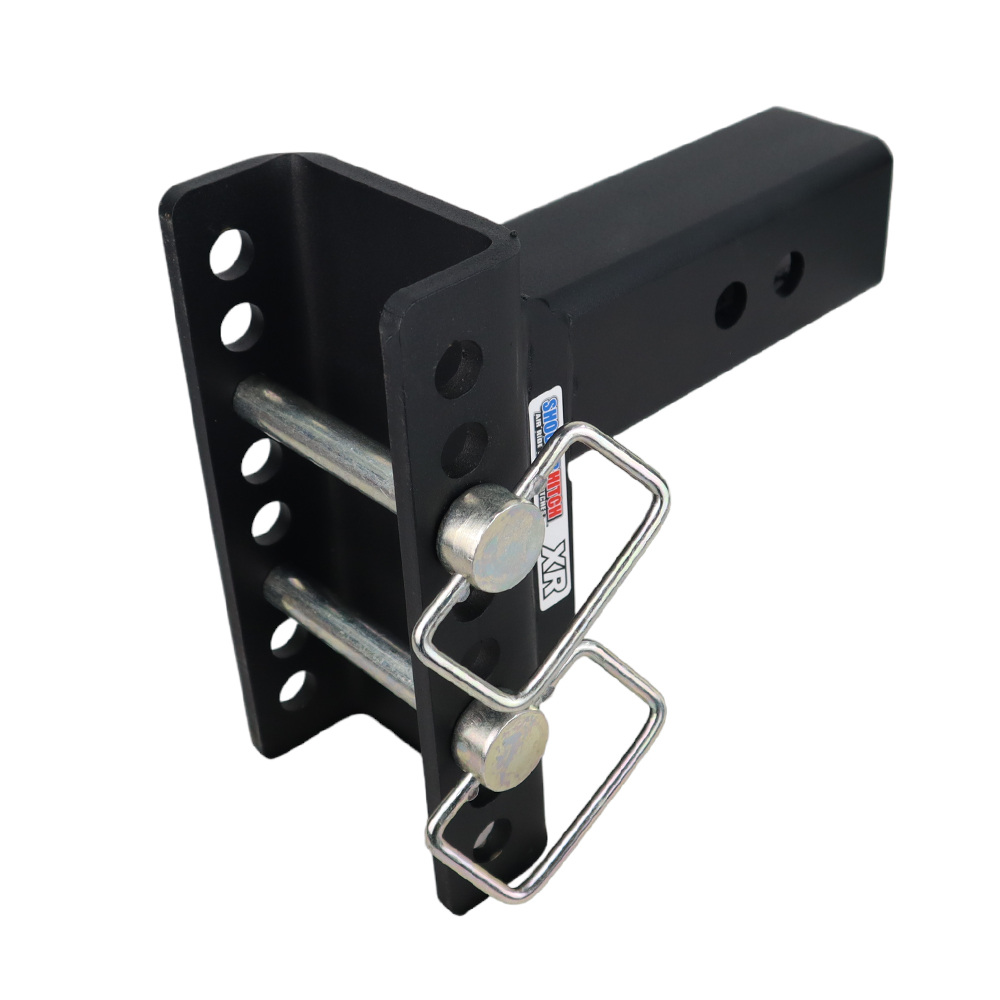

- Flip Around Design: Entire hitch frame can be flipped around for more drop or rise (4″ of rise to 4″ of drop).
- Hitch Pins: 2 hitch pin holes allow adjustment on the shank length and there is plenty of room on the receiver shank to accommodate hitch mounted towing mud flaps or shocker bumper tow flaps.
- Designed For: HD contractor type, camper, and enclosed trailer towing.
- 12,000 to 20,000 lb GTW Hitch: 12,000 lbs for 2″ hitch, 16,000 lbs GTW for 2-1/2″ and 20,000 lbs GTW for 3″. Tongue weight is 10% of GTW.
- Combo Ball with Sway Tabs Rating: 2-5/16″ ball is 20,000 lbs GTW, 2″ Ball is 10,000 GTW. Tongue weight is 10% of GTW.

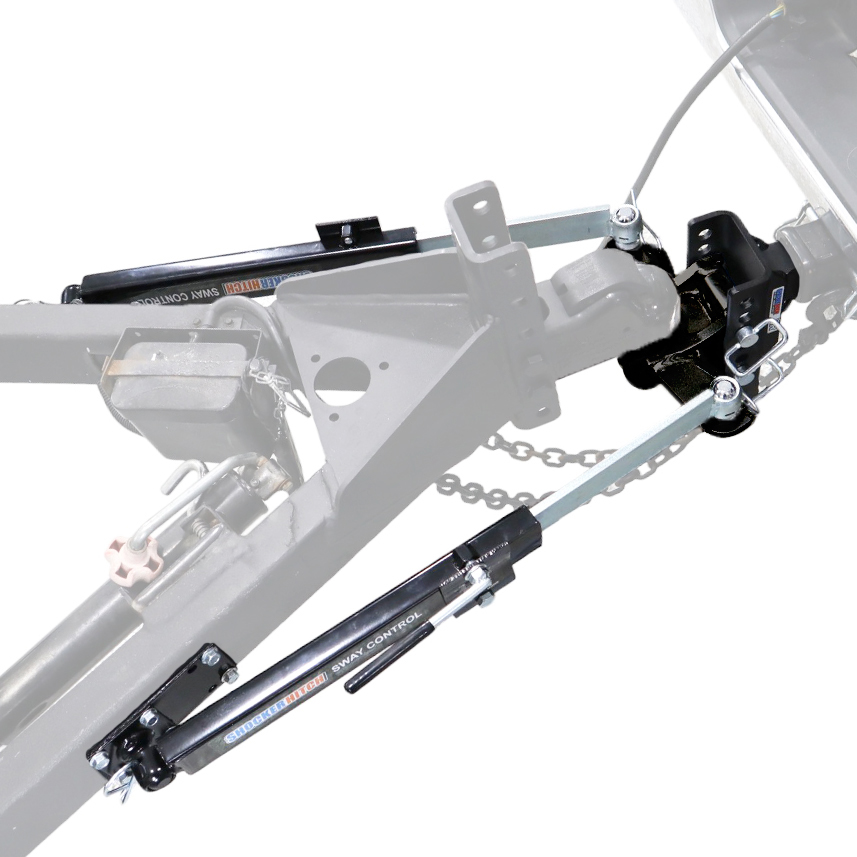

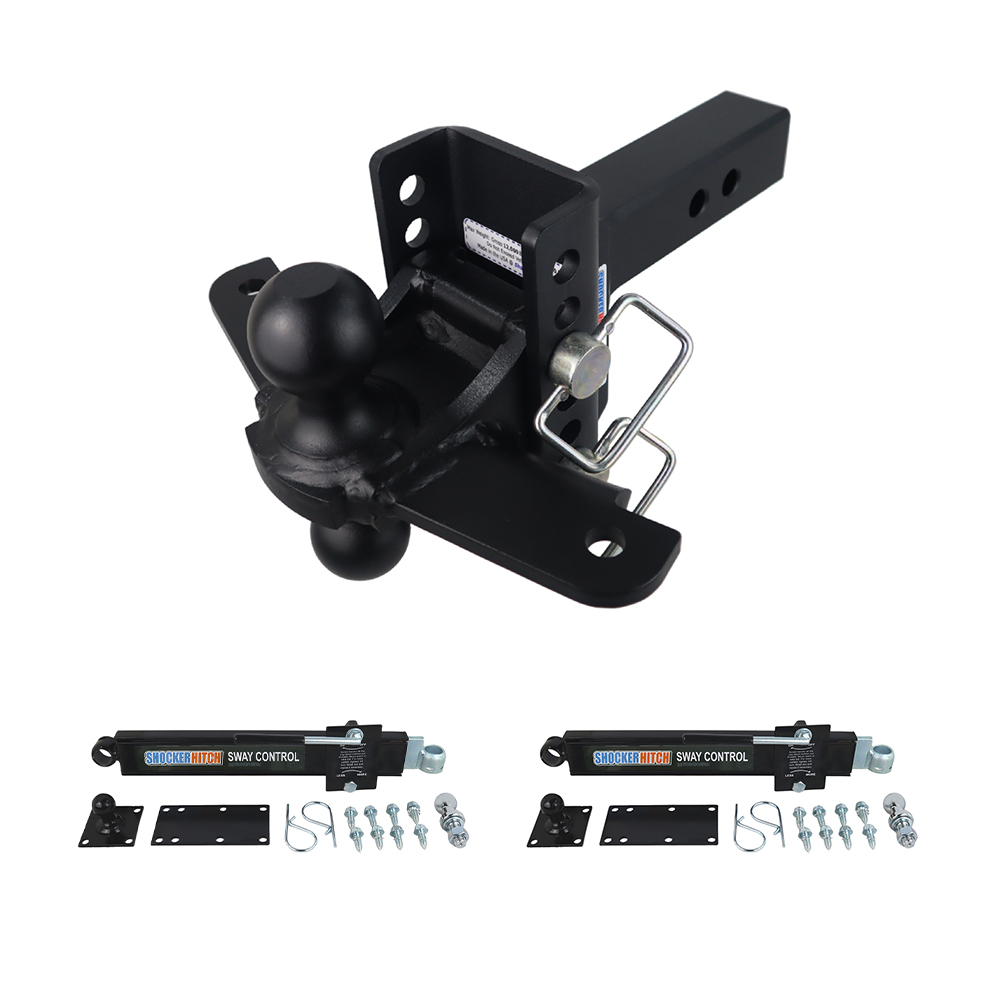

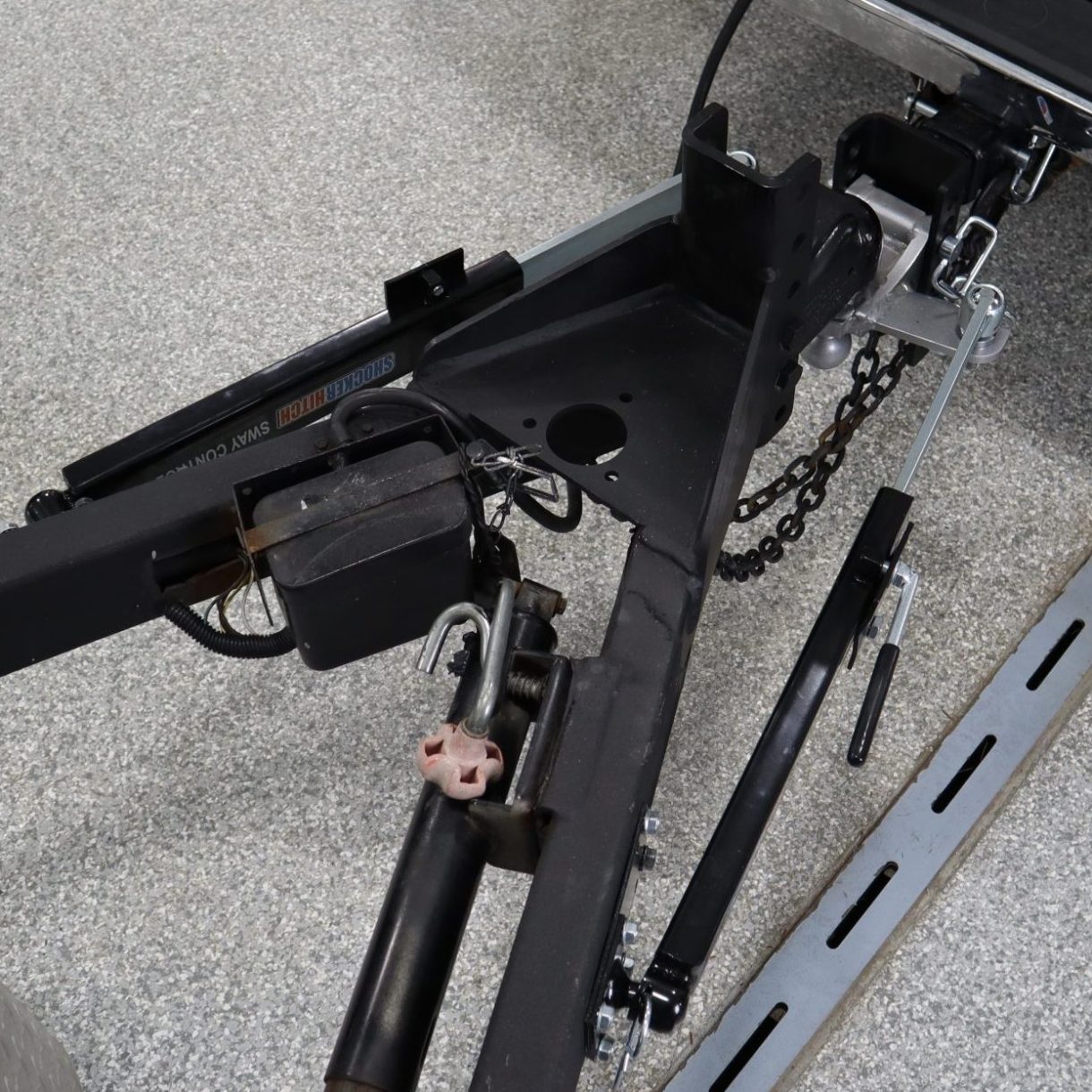

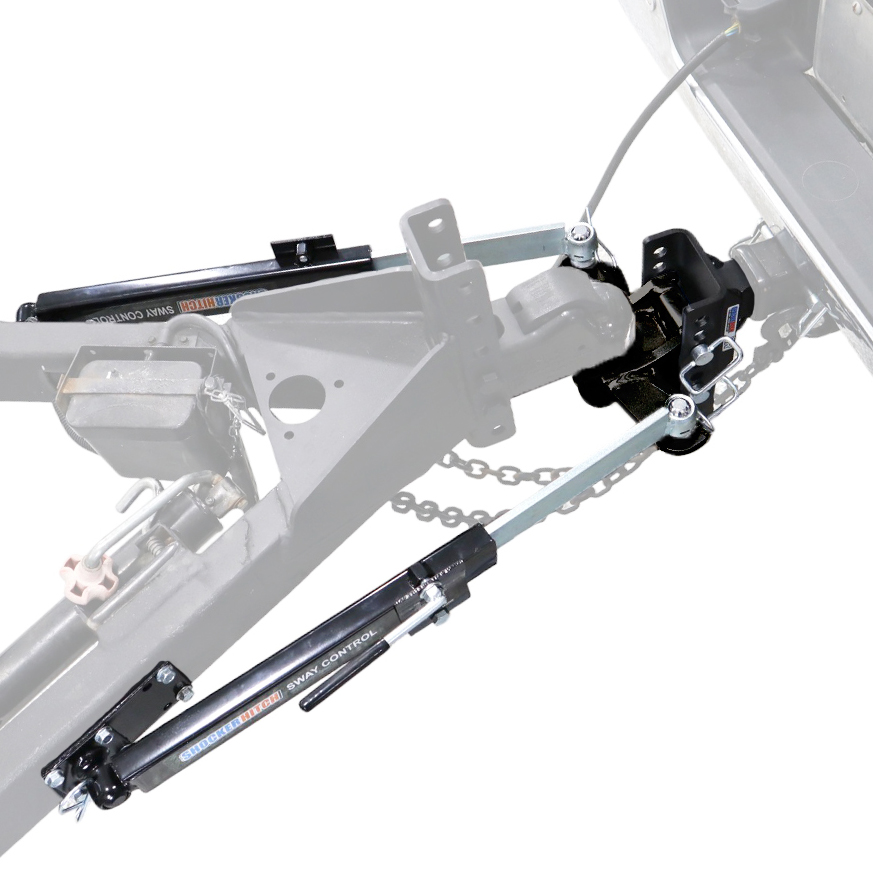

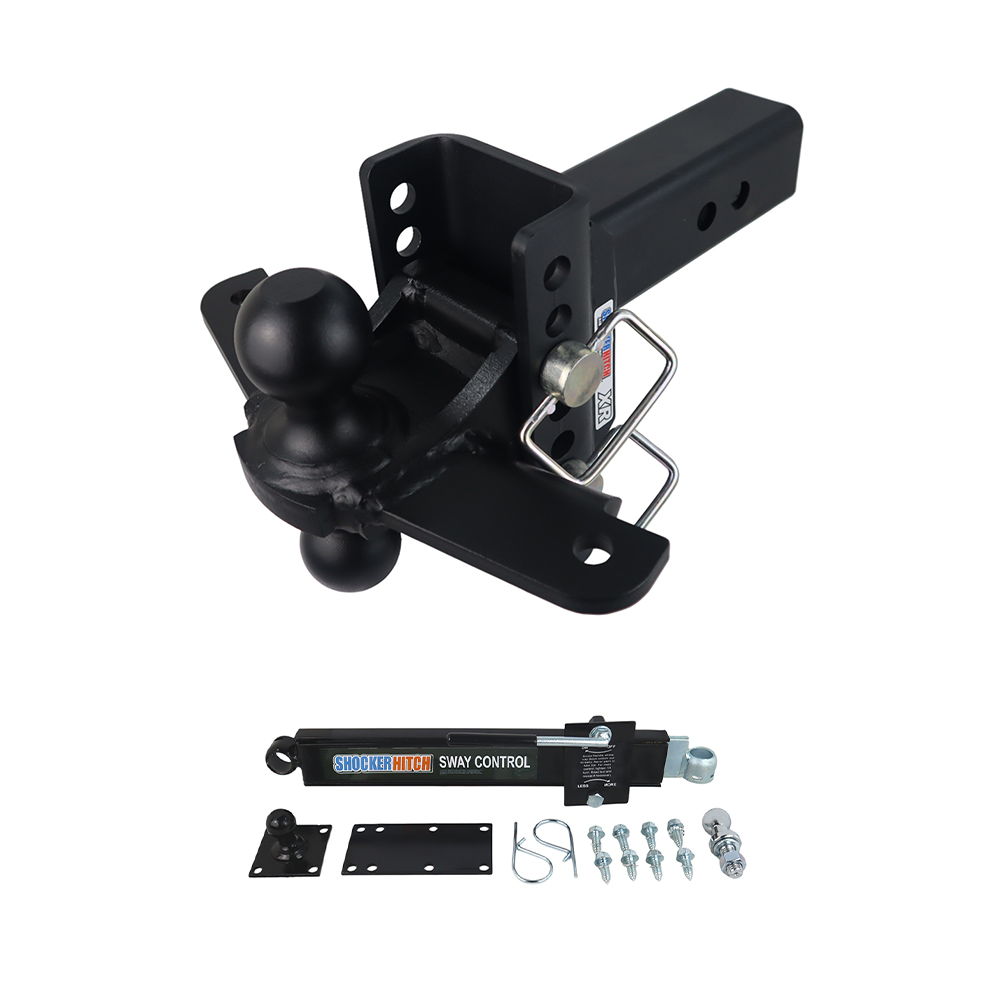

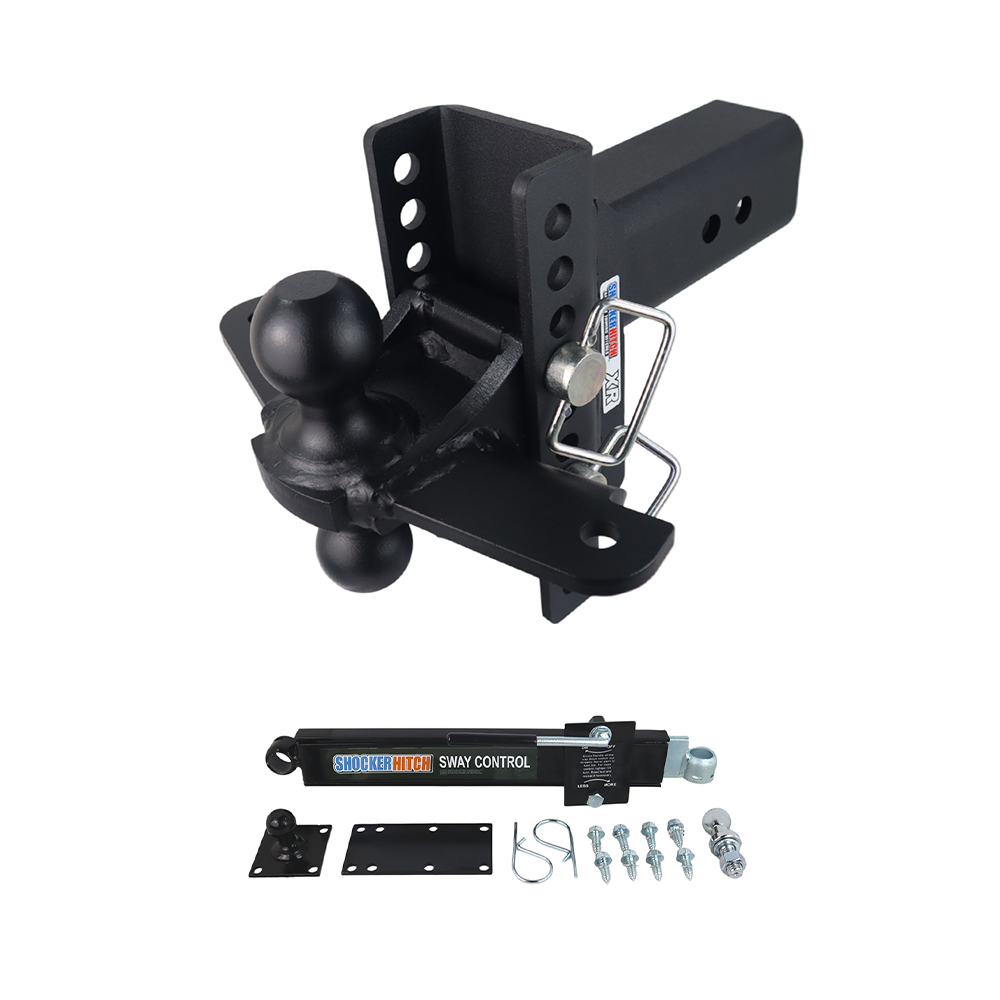

- Sway Control Towing Kit Includes: Complete adjustable Shocker XR hitch base frame assembly, combo dual ball mount with 2″ & 2-5/16″ hitch balls & 2 sway bar tabs, 2 ball mount pins & one or two friction sway control arm kits. Choose between a single or dual sway control system.

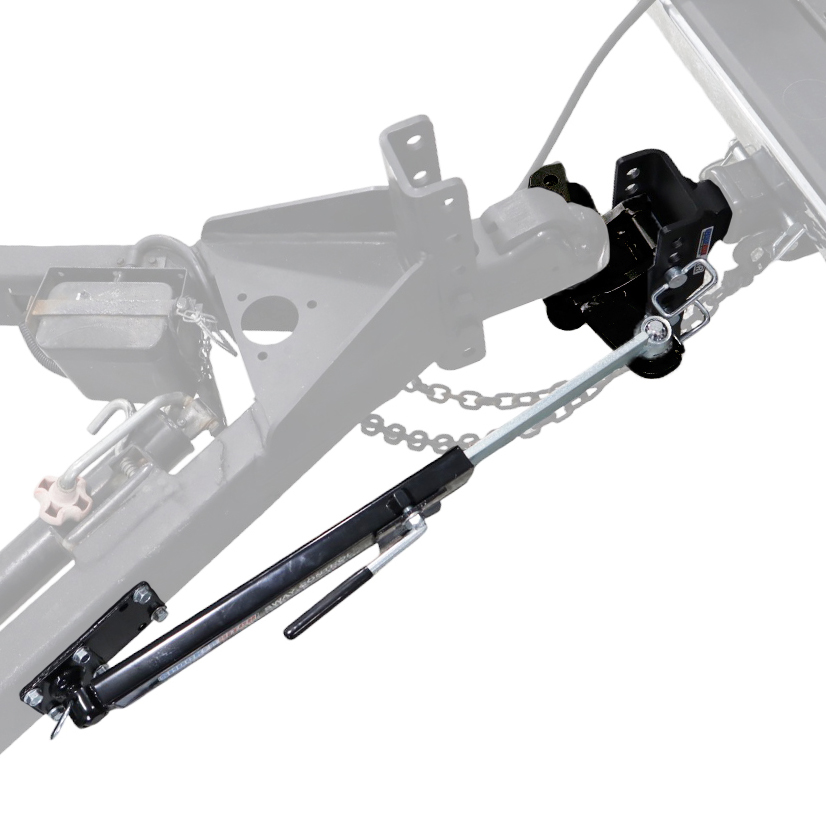

- Friction Sway Control Bar Kit Options: Order 1 Sway Arm Kit for use with Trailer up to 10K lbs. Order 2 Sway Arm Kits for use with Trailers over 10K lbs.
- Great for reducing trailer sway: Use 1 system for trailers under 10K and 2 systems for trailers over 10K.
- Adjustable Friction Bar: Can be adjusted to fine-tune your towing experience.

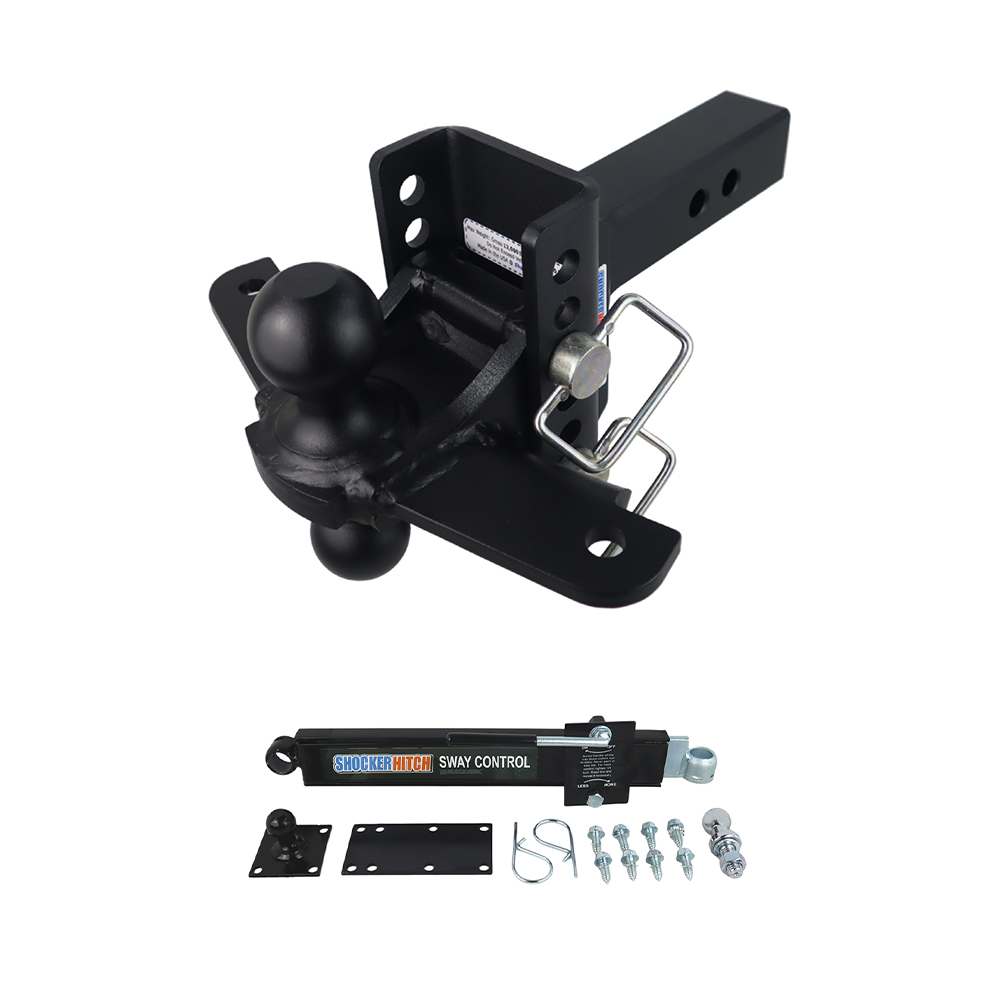

- A single sway control arm kit comes with the sway control friction arm assembly, 1 1-1/4″ trailer mounted mini ball, 1 1-1/4″ hitch mounted ball with a lock washer and nut for your sway control ball mount tab along with 4 metal lag screws and 2 retaining clips. This is great for travel camping trailers, heavy-duty trailers, race trailers, and toy haulers.
- 10+ Ball Mount Options: We have dual ball, drop, raised, pintle hooks, pintle & ball, combo multi-ball, clevis pin, dual ball with sway bar tabs, cushioned drawbar, drawbar and more (Sold Separately).
- Safety Notice: Towing capacity is limited by lowest rated component. Manufactured by Shocker Hitch® USA in Jamestown, ND.
- What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube? Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
- How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

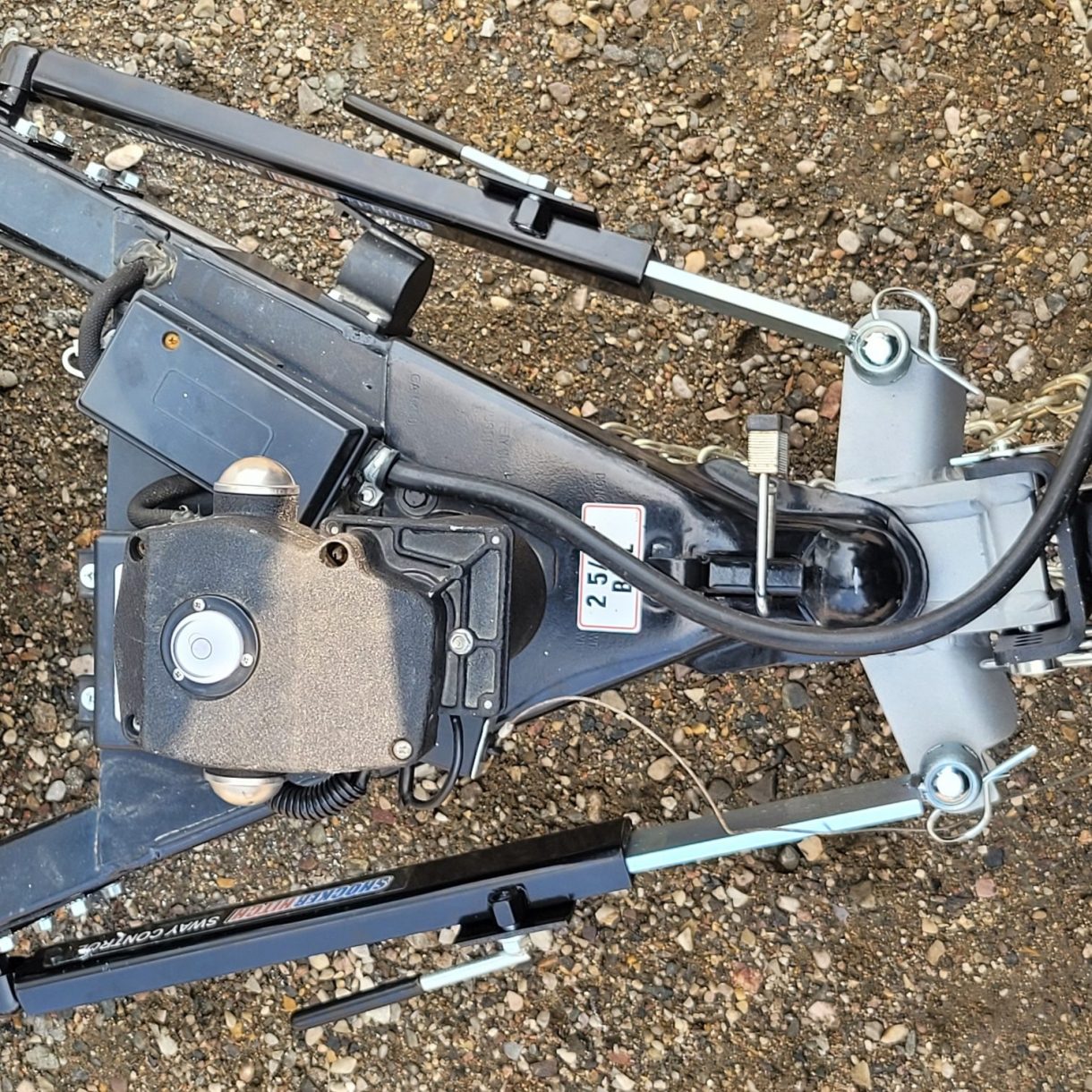

Reduce trailer sway and tow with ease of mind when using the Shocker XR Series Hitch with Sway Control Towing Starter kit. Designed specifically to reduce trailer sway when towing this kit includes air ride hitch & black combo ball mount with welded sway bar mounting tabs along with 1 or 2 sway arm bars. The Shocker XR hitch with black combo ball mount kit with welded tabs for sway control arm bars includes the friction sway arm & ball kit along with everything else you need. Featuring a combo multi-ball mount with both a 2″ hitch ball and a 2-5/16″ hitch ball. Up to 20,000 lbs tow rating capacity and 2,000 lbs tongue weight depending on shank size. It has 8″ to 10″ of height adjustment range from 4″ of rise to 4″ or 5-1/2″ rise to 5-1/2″ of drop depending on hitch selected. Combo ball mount with a premium powder-coated black finish along with sway bar tabs for the mini ball on each side. Shocker XR adjustable hitch ball mount provides versatility and a way simpler towing experience than a standard solid ball mount. The XR ball mount has built-in adjustability maximum versatility with 8 adjustment holes for your towing needs for pulling campers to enclosed trailers.
When towing larger trailers, you may experience trailer sway from wind, passing vehicles, rough & uneven road surfaces. This sway control arm kit system is made to prevent the trailer from swaying. We offer a sway control arm bar system kit that connects from the Shocker sway control ball mount (sold separately) of the hitch to the front of the trailer. This sway control system is used to stiffen the connection between the truck and trailer, keeping it straight and in line with the towing vehicle.
You will want to use one (1) friction sway control arm kit when towing up to 10,000 pounds and/or 24′ trailers & when towing over 10,000 pounds and/or trailers longer than 24′, use two (2) friction sway control arm kits. A single sway control arm kit comes with the sway control friction arm assembly, 1 1-1/4″ trailer mounted mini ball, 1 1-1/4″ hitch mounted ball with lock washers and nut for your sway control ball mount tab along with 4 metal lag screws and 2 retaining clips. This is great for travel camping trailers, heavy-duty trailers, race trailers, and toy haulers.
This Shocker XR sway control hitch kit comes with everything you need. Use this adjustable ball mount however you need to for tons of versatility. Works great on motorhomes, RV’s, pickup trucks, vans, SUVs, CUVs, and minivans. Plus the shank has 2 holes for the pin for length adjustability as well as allowing it to work with hitch-mounted mud flaps. Sway Bar combo mounts come with a durable powder coat finish. Made by Shocker Hitch® USA
