Product Description
- 20,000 lb GTW / 2,000 lb TW — HD air ride capacity for serious bumper pull towing on taller and lifted trucks
- Air Ride + Friction Sway Control — Built-in HD airbag absorbs bumps, jerks, and tugs while the friction sway bar stiffens the truck-to-trailer connection to keep it tracking straight

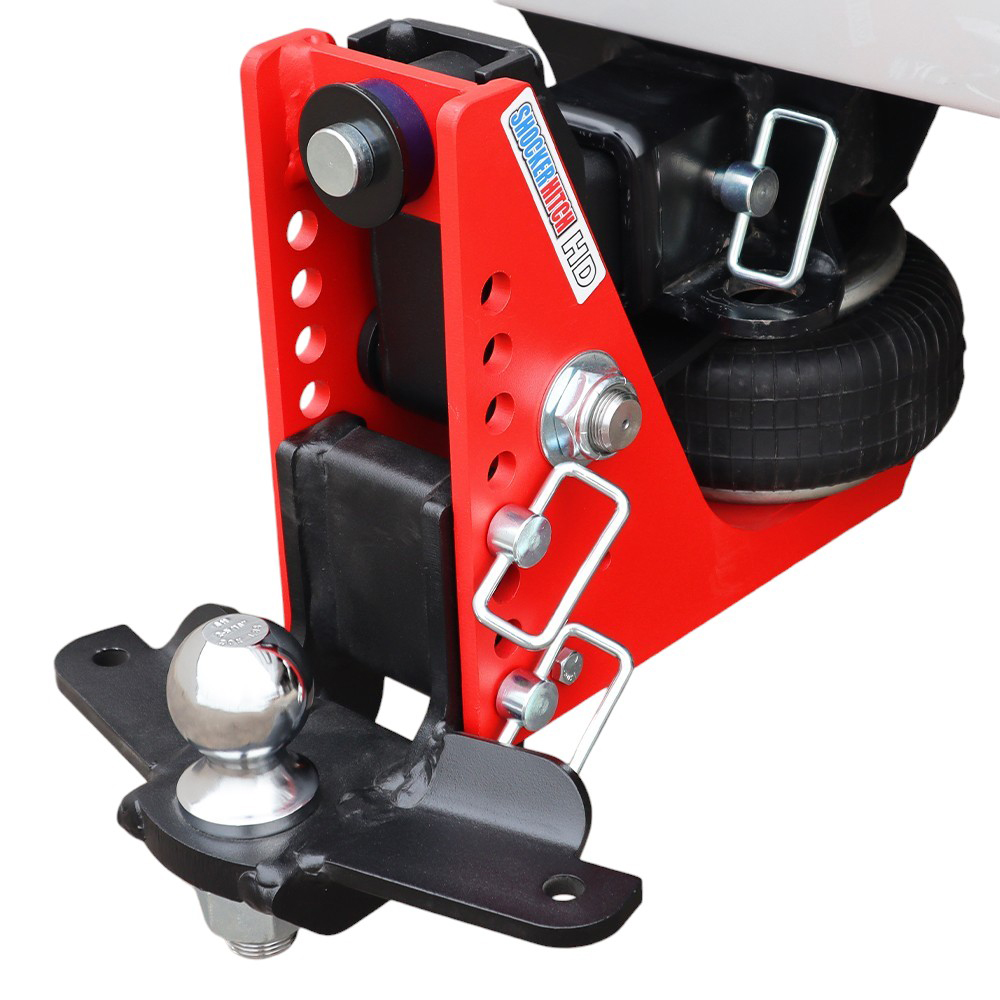

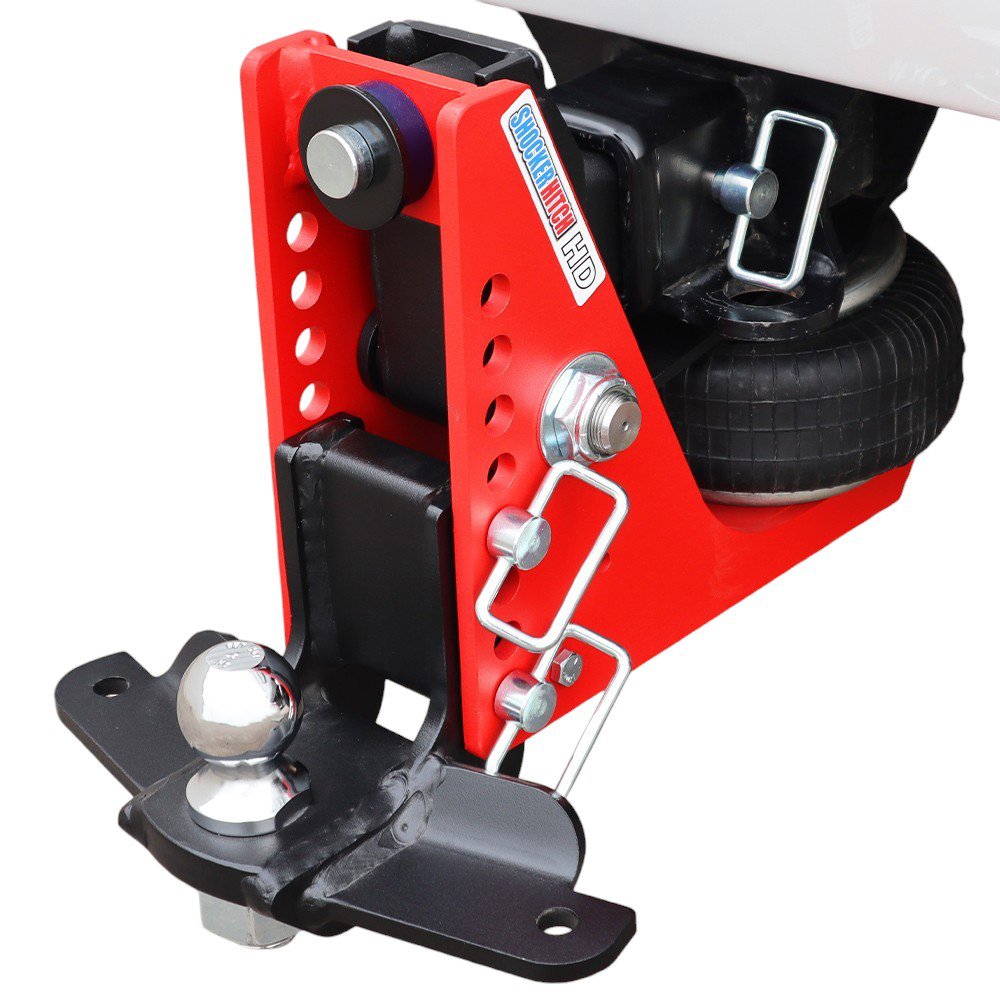

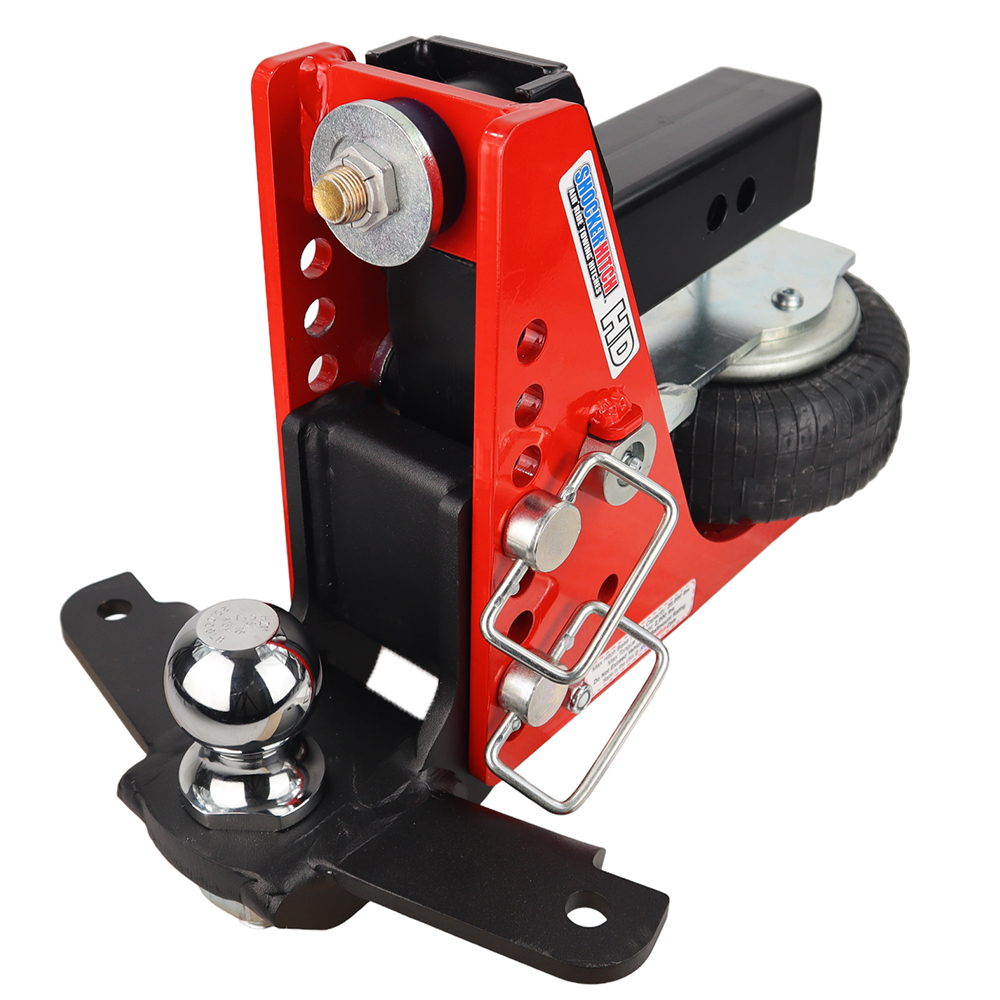

- Drop Ball Mount with Sway Tabs — 4½″ to 8½″ of drop with 8 adjustment holes; welded sway control tabs on both sides; choose 2″ (10,000 lb) or 2-5/16″ (20,000 lb) hitch ball

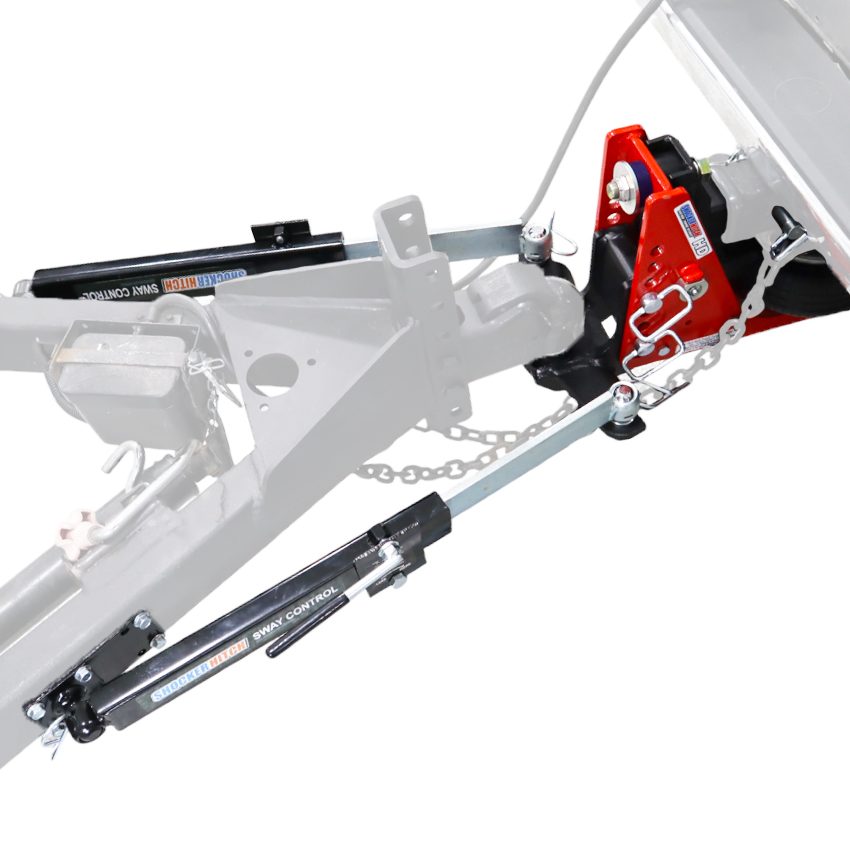

- 1 or 2 Sway Kits Included — Use one friction sway arm for trailers up to 10,000 lb or 24′; use two for trailers over 10,000 lb or longer than 24′

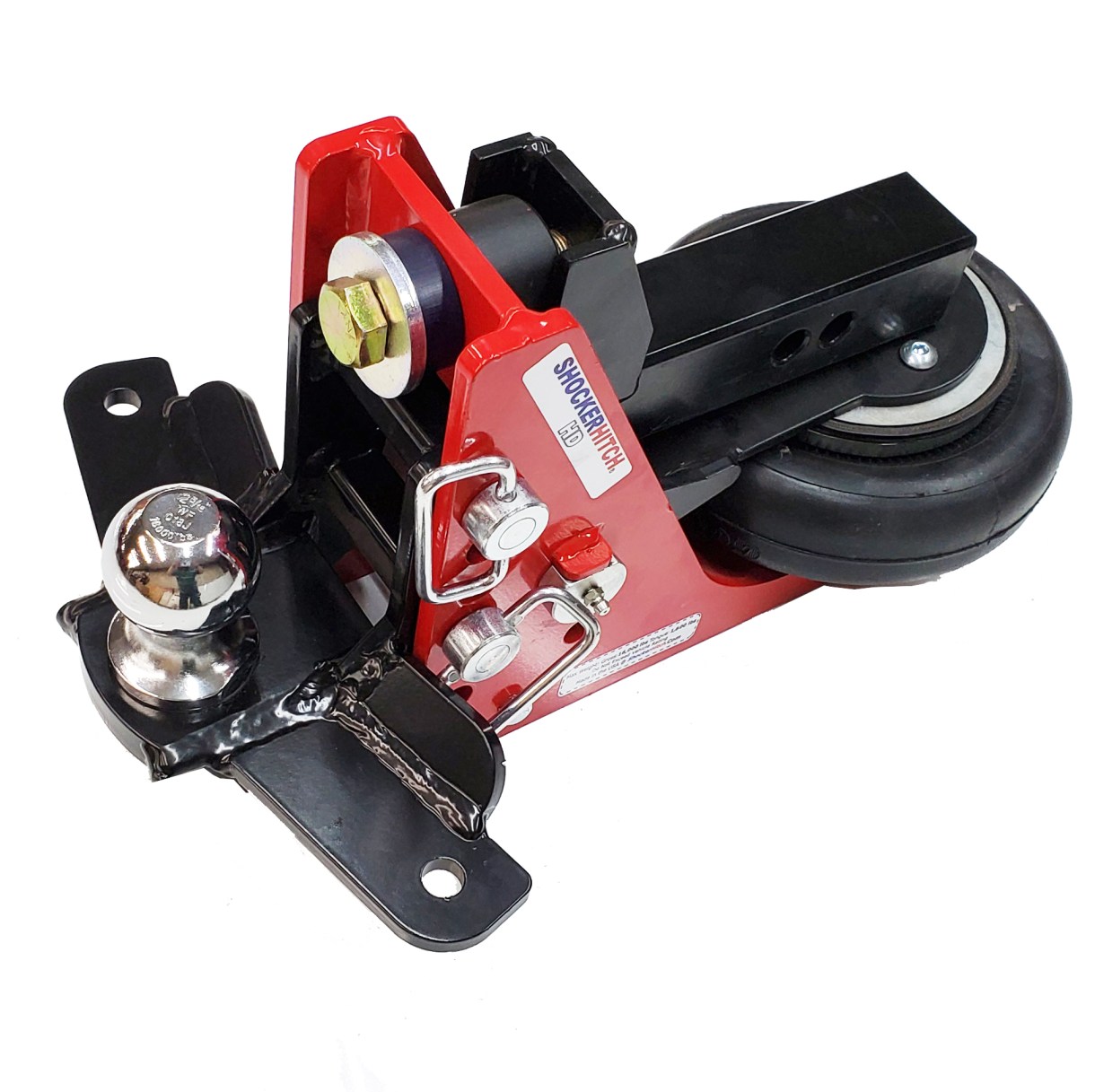

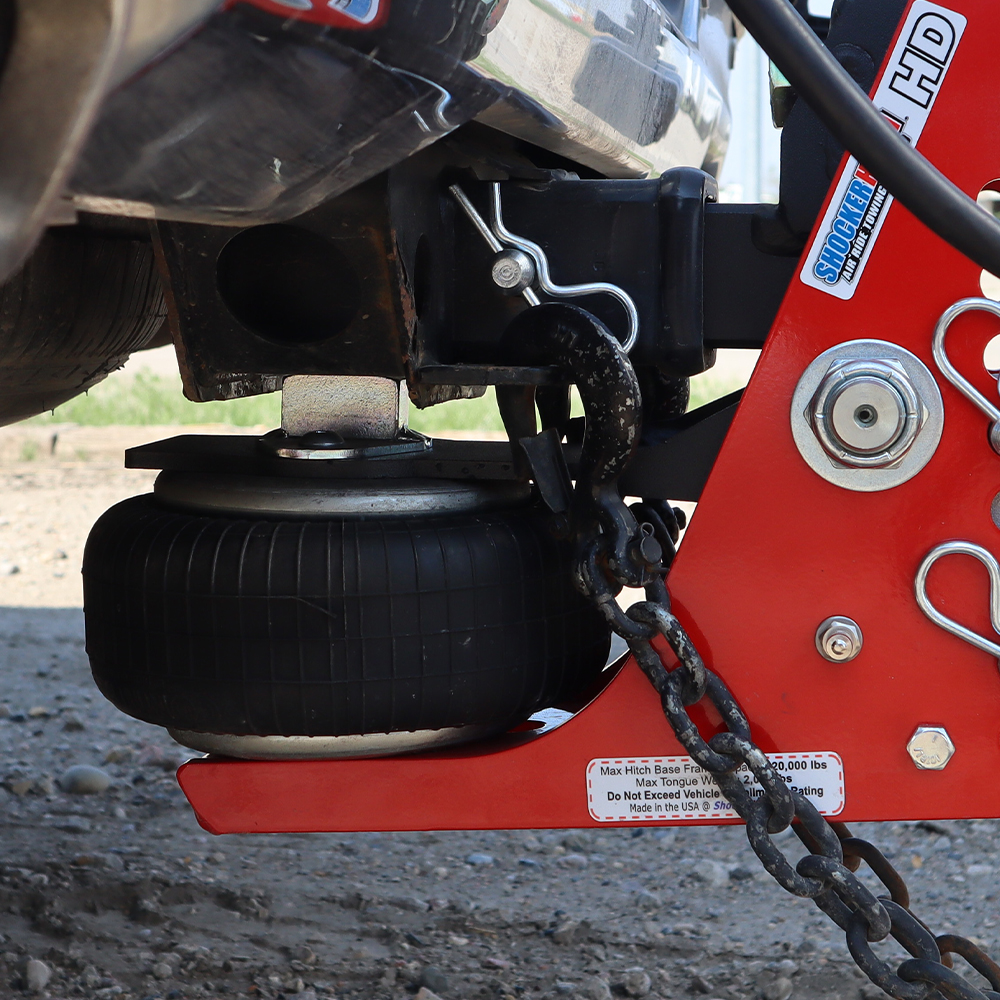

- Pressure-Adjustable Airbag — Airbag sits under the receiver tube; adjust pressure to fine-tune ride quality and load control
- Dual Rubber Bump Cushions — Additional HD dampening performance alongside the main airbag
- Safety Red Finish — Impact-resistant premium red powder-coat finish on base frame
- 2-Hole Receiver Shank — Available in 2″, 2½″, and 3″ receiver sizes; dual pin holes for length adjustability

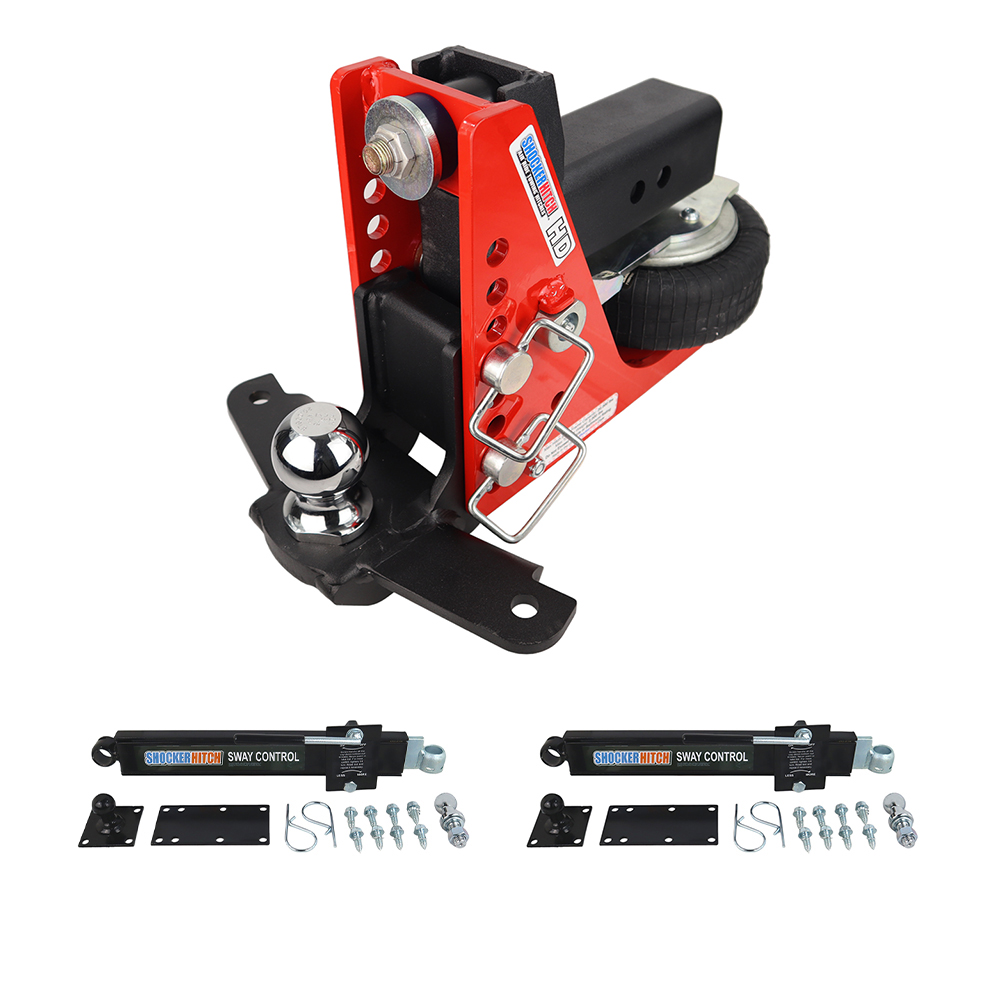

- Kit Includes — Shocker HD air hitch, drop ball mount with sway tabs, chosen hitch ball, 1 or 2 friction sway arm assemblies, 1¼″ mini balls, hardware, and 2 D-handle pins with clips
- NOTE: This product will not work with a weight-distribution hitch system, if you have a w-d hitch, check out our Shocker Hitch Air Equalizer for WD Hitches.
- What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube? Measure inside to inside. Check out our guide on how to measure receiver hitch tube size?
- How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

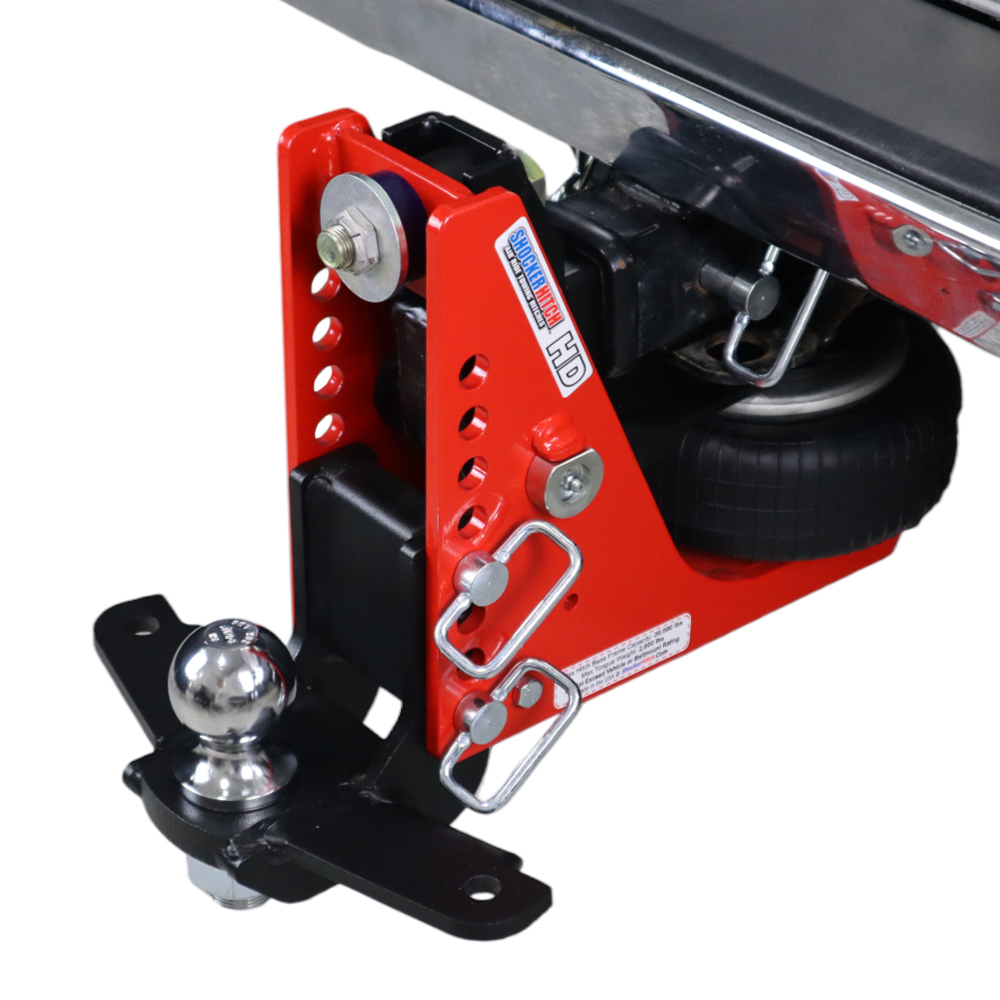

The Shocker HD Air Ride Drop Hitch Sway Control Kit is built for taller and lifted pickup trucks that need both significant drop and trailer sway management in one system. Rated at 20,000 lb GTW / 2,000 lb TW, it pairs the Shocker HD airbag hitch with a drop ball mount offering 4½″ to 8½″ of drop and welded sway control tabs — giving you up to 8½″ of drop with friction sway control built in. The base frame carries a premium safety red powder-coat finish.

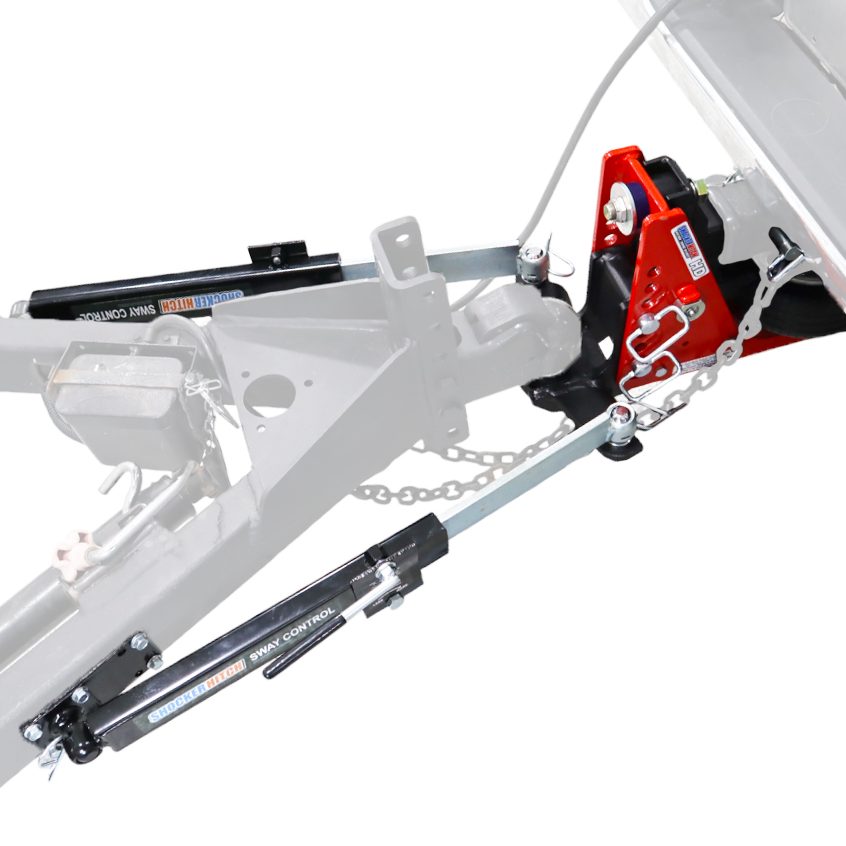

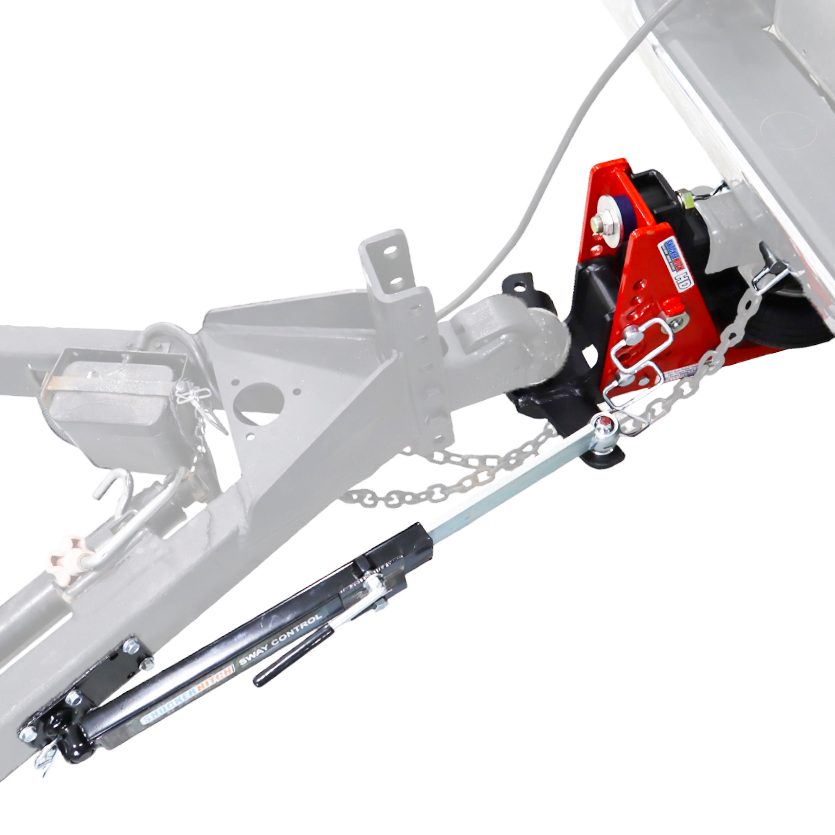

The HD airbag sits under the receiver tube and absorbs the bumps, jerks, bangs, and tugs that a hard connection transfers directly to your truck and trailer. Dual rubber bump cushions add further dampening. Adjust the air pressure to suit your load. The friction sway arms connect from the sway tabs on the drop ball mount to the front of the trailer, stiffening the connection and keeping everything tracking straight. Use one arm for trailers up to 10,000 lb or 24′; use two for trailers over 10,000 lb or longer than 24′.
The drop ball mount features 8 adjustment holes for 4½″ to 8½″ of drop and is available with either a 2″ (10,000 lb GTW / 1,000 lb TW) or 2-5/16″ (20,000 lb GTW / 2,000 lb TW) hitch ball. Each friction sway arm kit includes the sway arm assembly, one 1¼″ trailer-mounted mini ball, one 1¼″ hitch-mounted ball with lock washer and nut, four metal lag screws, and two retaining clips. Receiver shank available in 2″, 2½″, and 3″ sizes.
Compatible with full-size and midsize pickup trucks, vans, and select SUVs with a receiver hitch mounted under the bumper. Not compatible with weight-distribution hitch systems.
Manufactured by Shocker Hitch® USA in Jamestown, ND.
