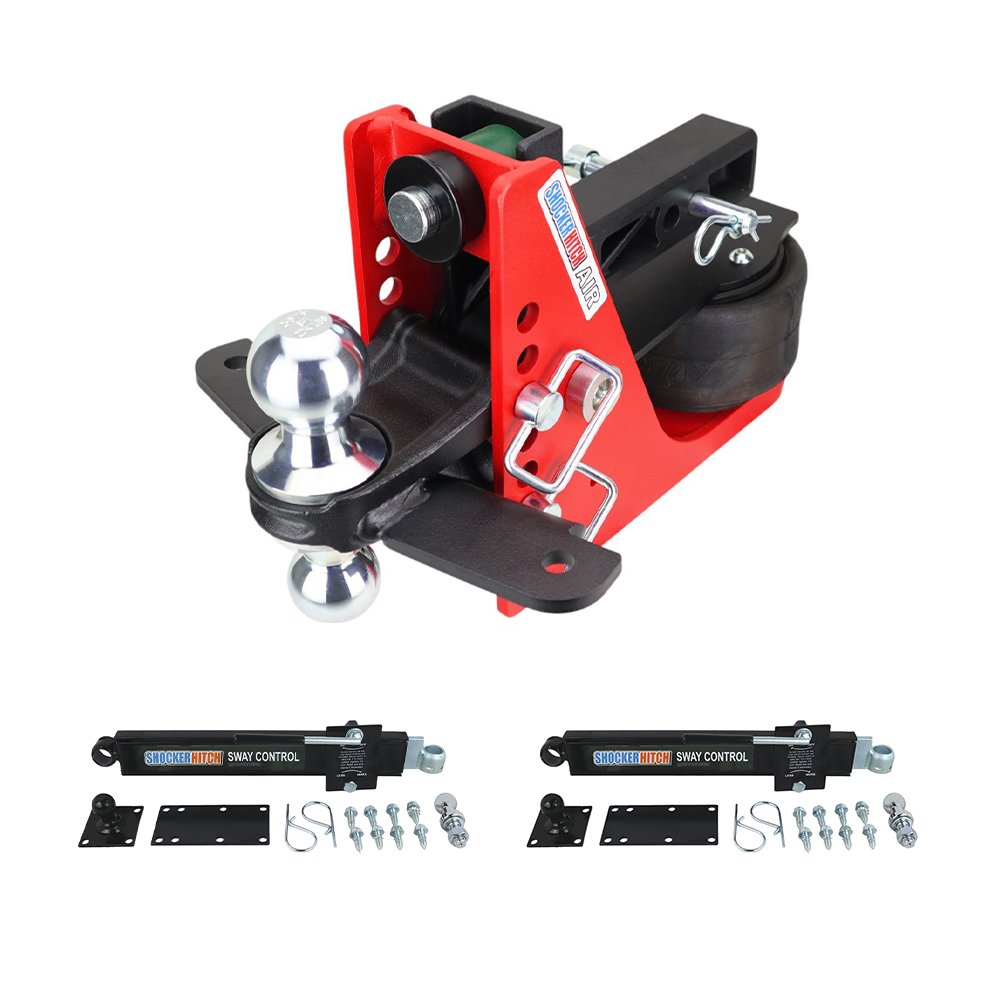

Shocker Air Hitch Combo Ball & Sway Control Towing Kit

Rated 5.00 out of 5 based on 9 customer ratings

CAD$1,061.61CAD$1,253.99CAD$1,214.99CAD$1,454.99

Money IconExtra 5% OFF, hurry limited time offer.
Free Ground Shipping*
Usually Ships on or Before Fri 11/08/24
Usually Ships on or Before Fri 11/08/24
Usually Ships on or Before Fri 11/08/24
Usually Ships on or Before Fri 11/08/24
Usually Ships on or Before Fri 11/08/24
Usually Ships on or Before Fri 11/08/24
Clear
OR

  • Videos arrow

    Videos

    Shocker Air Hitch & Sway Control Towing Kit Videos

  • Install arrow

    Install

    Shocker Sway Control Air Bumper Hitch Installation Instructions

    The Shocker Air Hitch is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

    Shocker Air Hitch Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag. Once the bag has been compressed, you can install the unit into the receiver tube. Next, install the hitch pin.

    To Set Air: Hook up a trailer using a properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to lightly compress top bushing or until bump stop clearance is approximately 1/8″.

    Shocker Sway Control Air Hitch Install Video

    Shocker Air Bumper Hitch Air Pressure Setting Video


    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
    • Spacer block included and may be required when using 2″ shank (see spacer block instructions in manual below)
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

    Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Download Install Instructions

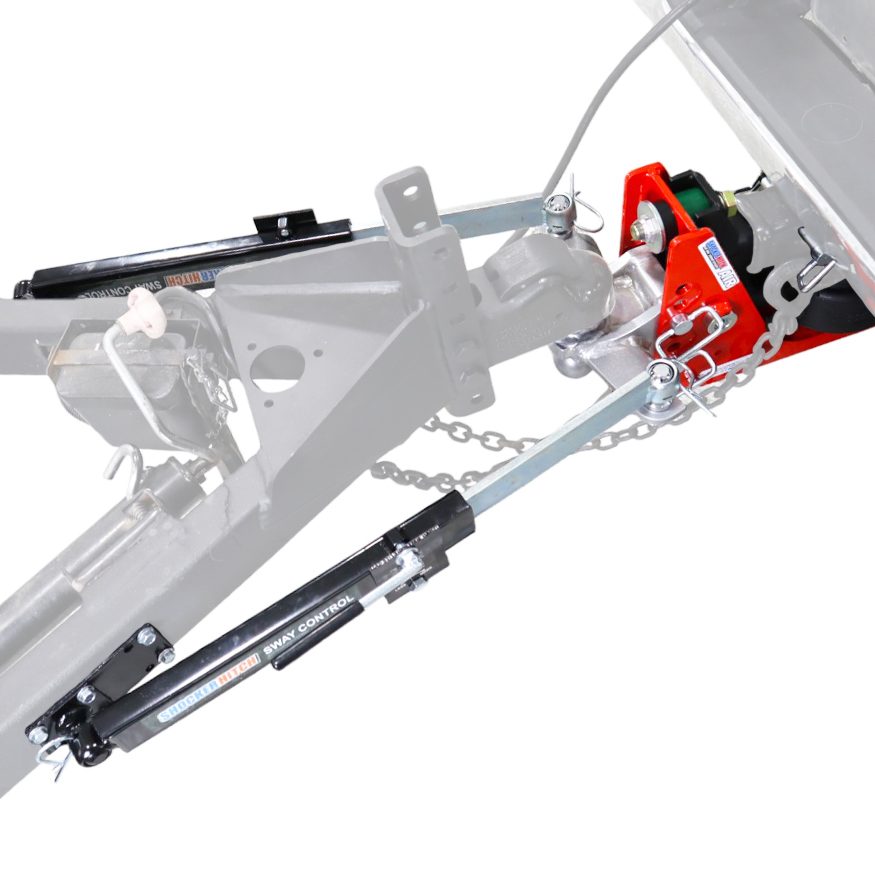

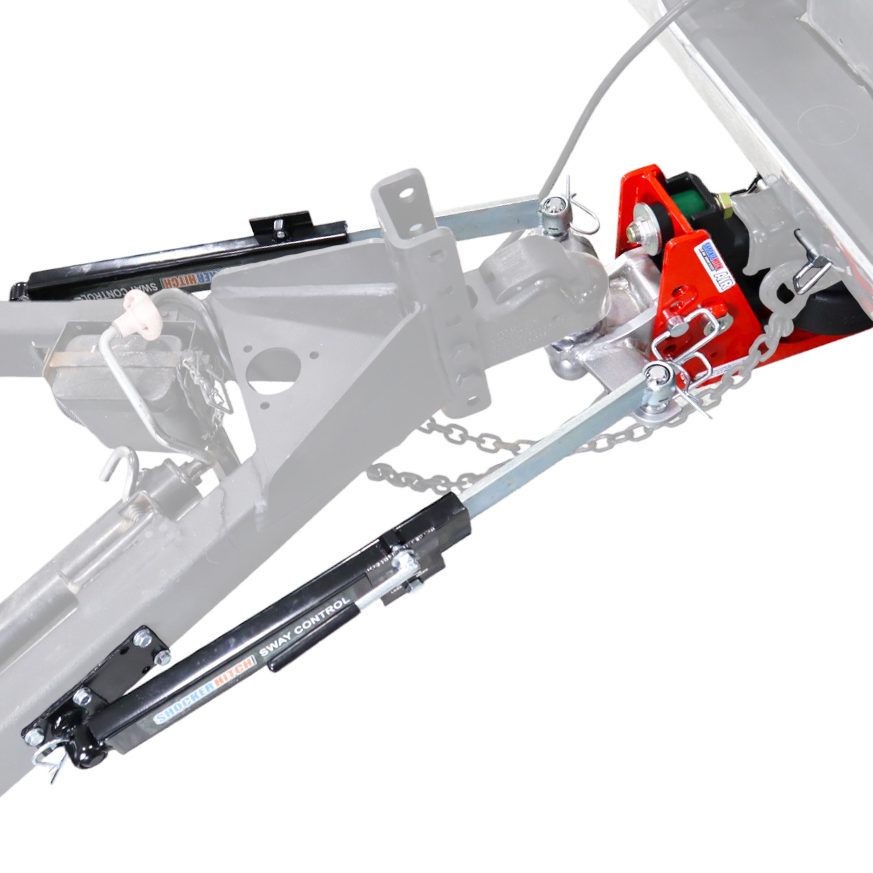

    Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you have an equalizer or weight distribution hitch then it will not. However, check out our Shocker Air Equalizer for weight distribution hitches. If you are just using friction sway bars that hook to a mini ball (such as the shocker sway control arm bar kit), then yes, if you also have one of our sway bar tab mounts such as the combo sway control ball mount attachment.

    Note: Towing capacity is limited by the lowest rated component.

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    • Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide
      – Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
       Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
      – Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
      – Clevis Mount: 3.5″ Drop to 7.5″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.

    Safety Notice: Towing capacity is limited by lowest rated component.

    Check out our guide to find out how much drop or rise you need.

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 587-897-4625 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Questions & Answers (7) arrow

    Questions and answers of the customers

      I all ready have a shocker hitch now but I need the sway bars now for a bigger camper is there anyway to buy just the sway bars and hitch ball
    1. 0 votes
      Q I all ready have a shocker hitch now but I need the sway bars now for a bigger camper is there an...... Read more answer now
      A Yes, Please contact us at 587-897-4625, service@shockerhitches.ca, or by our chat online.
    2. How much hangs below the receiver tube
    3. 0 votes
      Q How much hangs below the receiver tube answer now
      A

      Depending on your receiver size, for 2" receivers hang about 6-1/2" below, for 2-1/2" receivers it hangs around 6" below, and for 3" receivers it hangs around 5-1/2" below.

    4. My trailer hitch is a 2 5/16"-- can I get that size ball?
    5. 0 votes
      Q My trailer hitch is a 2 5/16"-- can I get that size ball? answer now
      A

      Our sway towing kits do come with a combo ball mount that can be flipped around. This combo ball will include both a 2" and 2-5/16" ball.

    6. What is the size of mini ball plate for the frame? Will it fit a 4 3/8 channel?
    7. 0 votes
      Q What is the size of mini ball plate for the frame? Will it fit a 4 3/8 channel? answer now
      A

      The dimensions on that mini ball plate are 8.5" x 5" x 2.25". I do not believe this would fit that 4-3/8" channel.

      A

      The mini ball plate is 8.5 x 5 x 2.25"

    8. Adjustable drop height?
    9. 0 votes
      Q Adjustable drop height? answer now
      A

      The Shocker Air Hitch Combo Ball has a 1/2" to 4-1/2" adjustable drop height. We do have other drop mounts available with sway control if more than 4-1/2" of drop is required. Check out our Shocker Drop Sway Control Ball Mount attachment here:

      https://shockerhitches.ca/product/drop-sway-ball-mount-attachment/

    10. Do the sway bars make it more difficult to back up or take away from the trailer mobility while backing up?
    11. 0 votes
      Q Do the sway bars make it more difficult to back up or take away from the trailer mobility while b...... Read more answer now
      A   Yes, sway bars do limit the mobility while backing up, such as when parking the camper in a camping spot, garage etc. The friction bars like we sell are easy to turn the dial or lever to relax the tension/friction to allow backing and maneuvering easily.
      A Yes, sway bars do limit the mobility while backing up, such as when parking the camper in a camping spot, garage etc. The friction bars like we sell are easy to turn the dial or lever to relax the tension/friction to allow backing and maneuvering easily.
    12. Will the shocker hd bumper hitch work on a cm flatbed?
    13. 0 votes
      Q Will the shocker hd bumper hitch work on a cm flatbed? answer now
      A There is not enough clearance directly underneath the receiver for the airbag hitch to fit properly on your CM flatbed. You would want to look at the tongue mount hitches.
