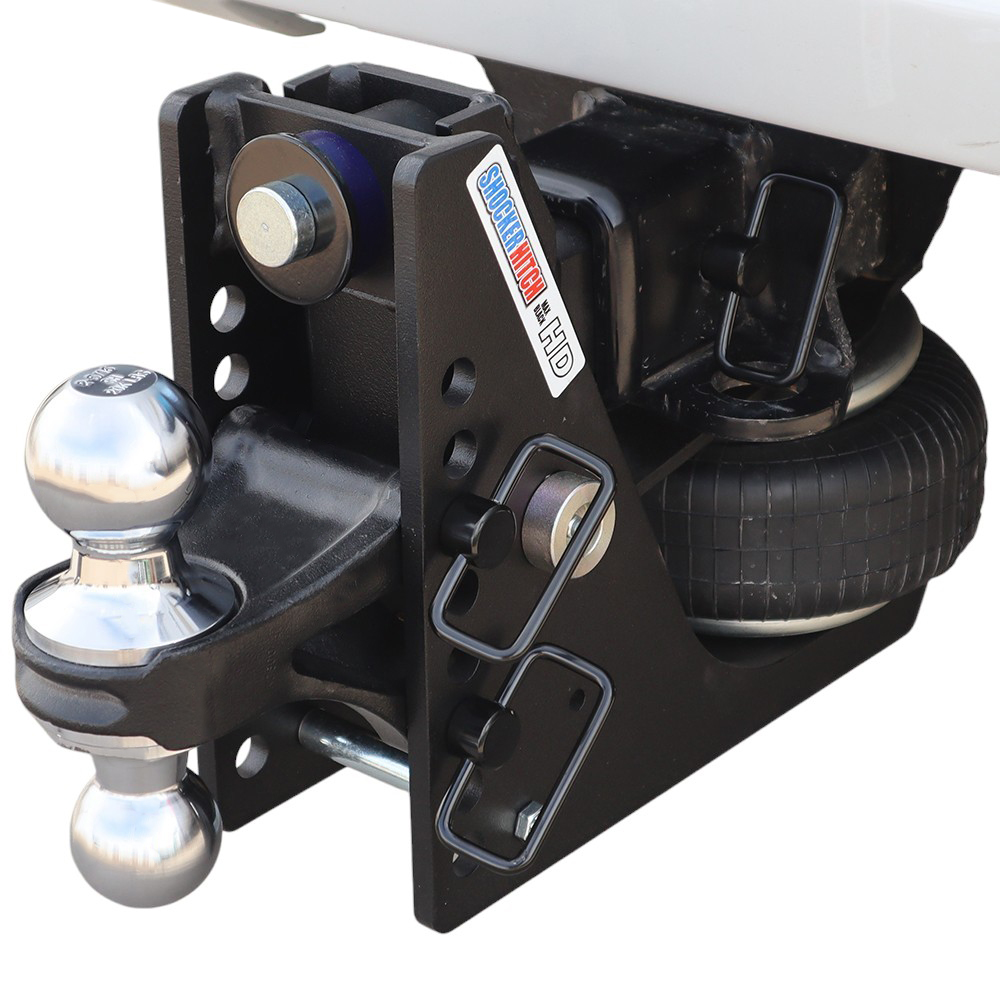

HD Max Black Air Hitch & Chrome Combo Ball Installed
HD Max Black Air Hitch & Chrome Combo Ball Installed

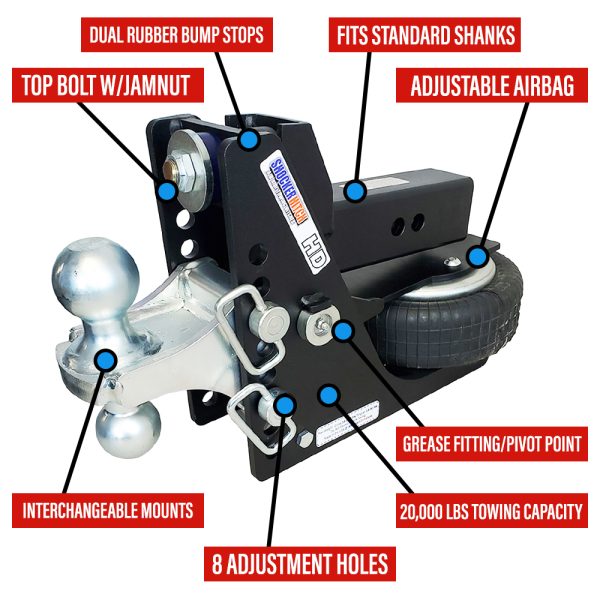

20K HD Max Black Air Hitch - Diagram - Features - Specifications
20K HD Max Black Air Hitch - Diagram - Features - Specifications

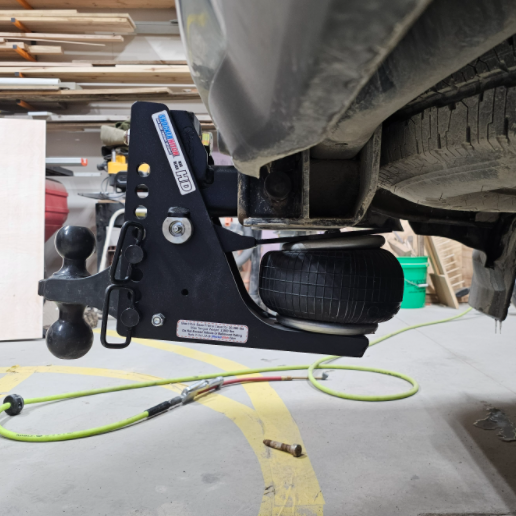

Shocker HD Max Black Air Combo Hitch Installed Side View
Shocker HD Max Black Air Combo Hitch Installed Side View

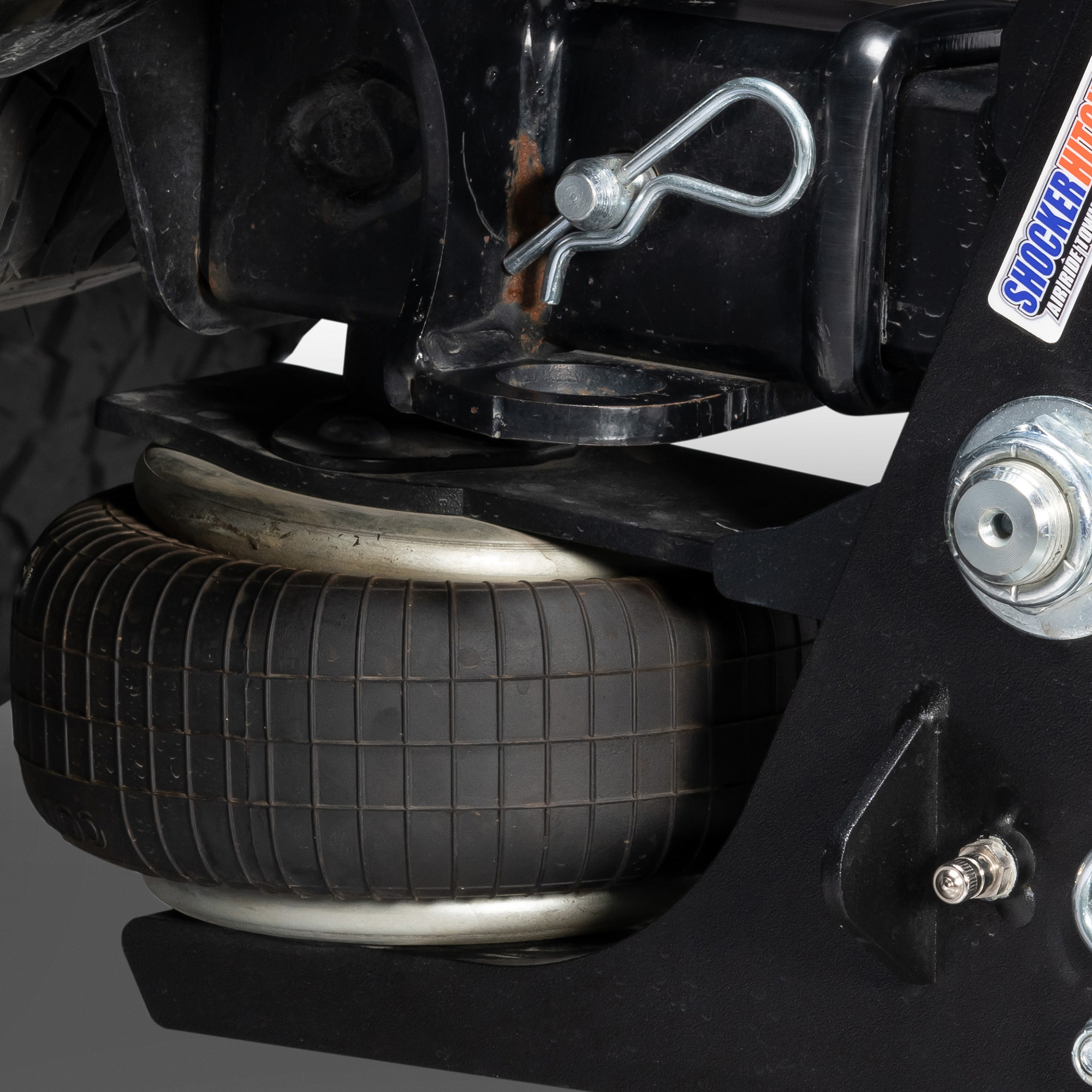

Built in Air Ride Absorbs Bumps, Tugs & Jerks - HD Max Black Air Hitch - Fully Adjustable
Built in Air Ride Absorbs Bumps, Tugs & Jerks - HD Max Black Air Hitch - Fully Adjustable
HD Max Black Air Hitch - Built in Dual Bump Cushions for Max Performance
HD Max Black Air Hitch - Built in Dual Bump Cushions for Max Performance
Premium Air Line & Air Tank Valve System with HD Max Black
Premium Air Line & Air Tank Valve System with HD Max Black
HD Max Black Air Receiver Hitch - 1" Diameter 1045 Carbon Steel Pivot Bolt Grease Zerk
HD Max Black Air Receiver Hitch - 1" Diameter 1045 Carbon Steel Pivot Bolt Grease Zerk
Easy To Use Air Valve on HD Max Black Air Hitch
Easy To Use Air Valve on HD Max Black Air Hitch

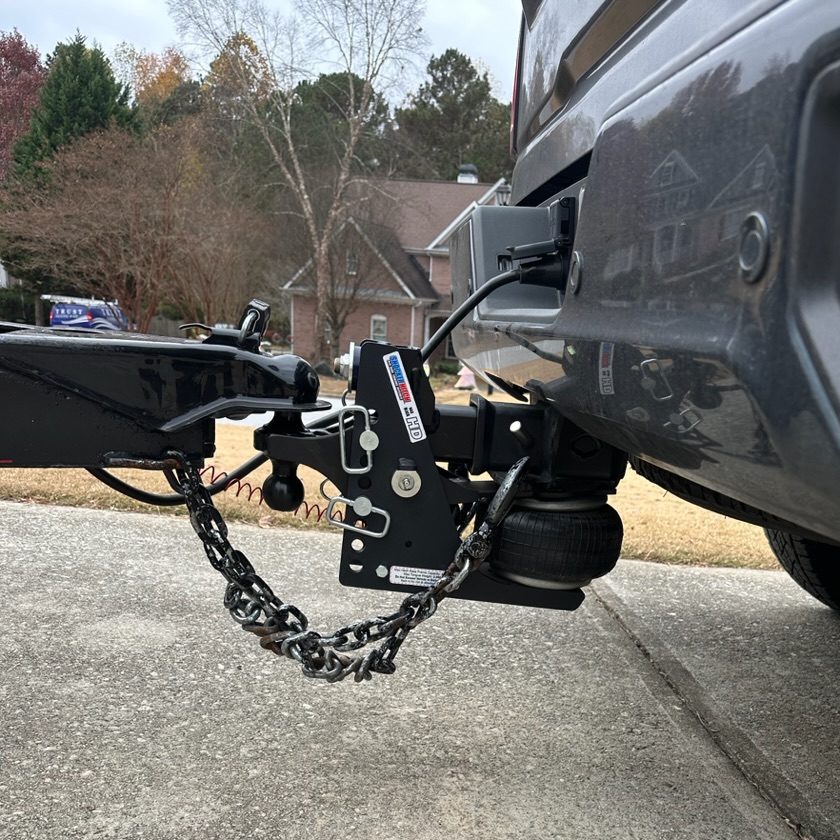

Shocker HD Max Black Combo Ball Installed
Shocker HD Max Black Combo Ball Installed

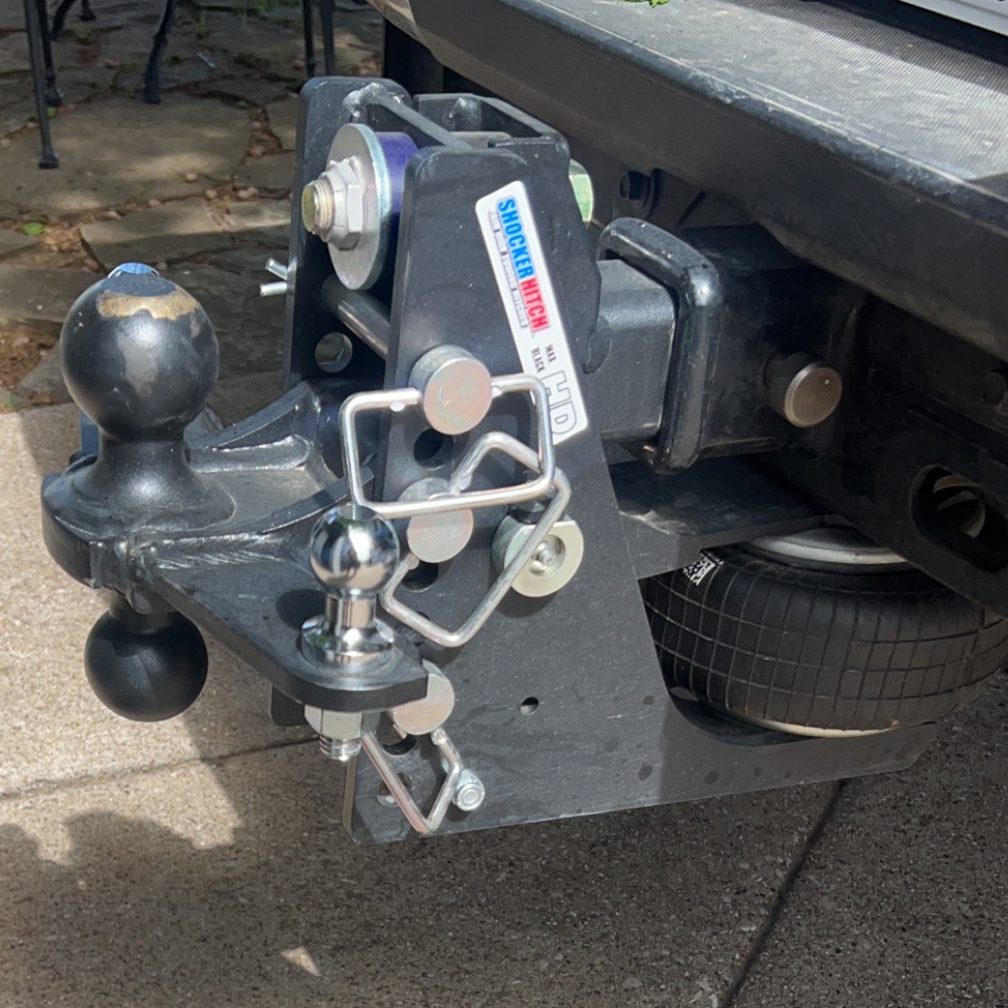

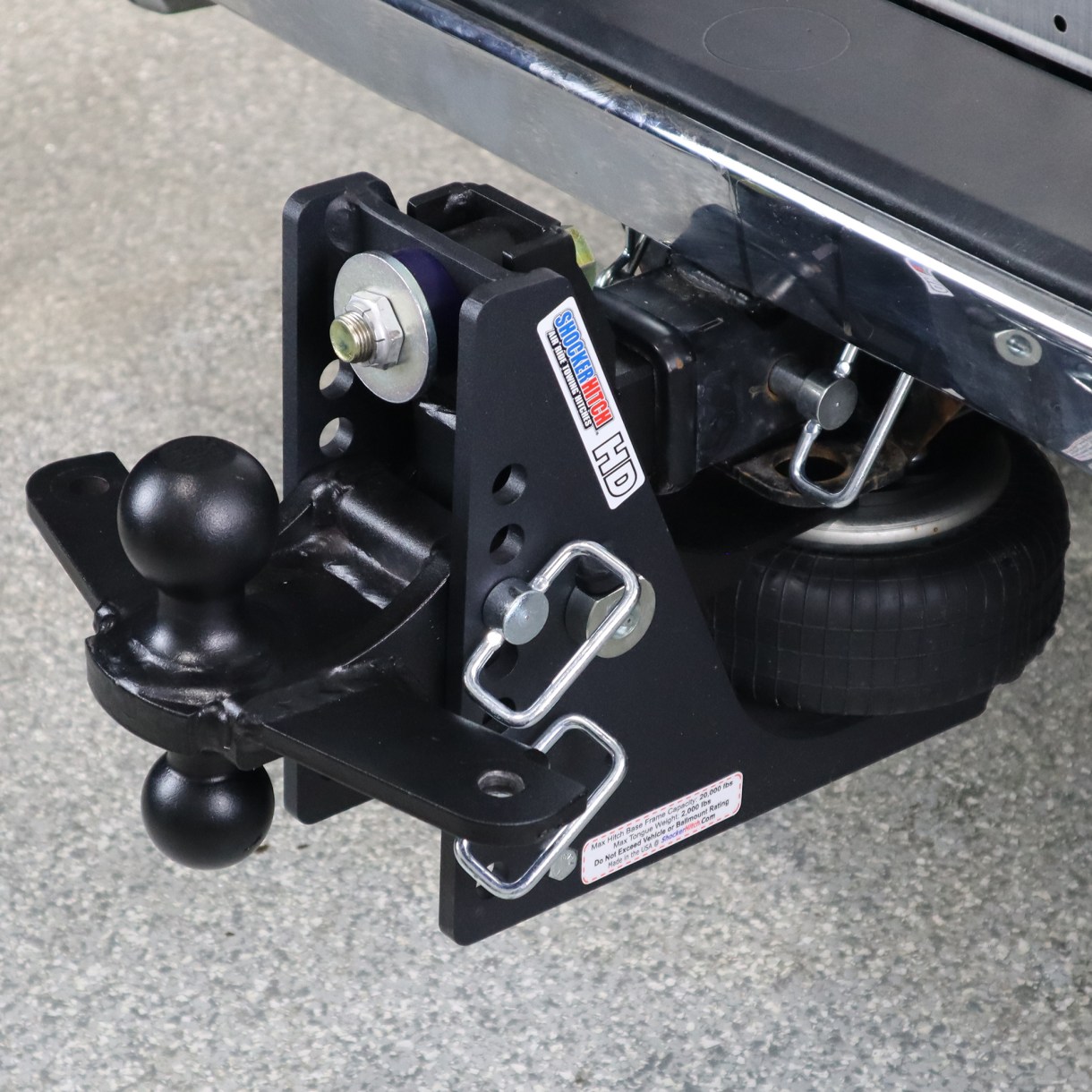

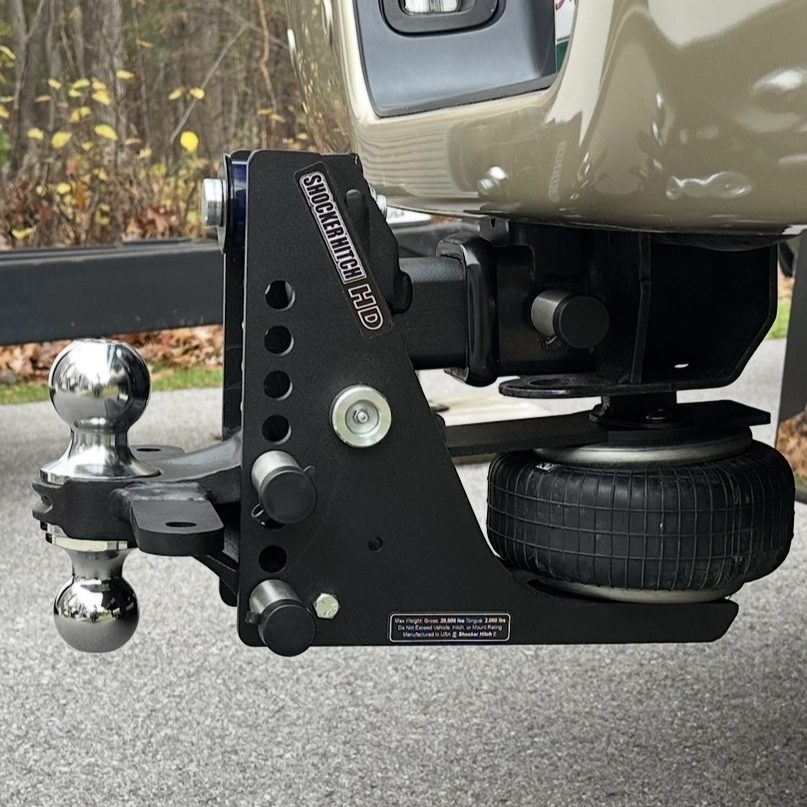

Shocker HD Max Air Hitch & Combo Sway Installed
Shocker HD Max Air Hitch & Combo Sway Installed

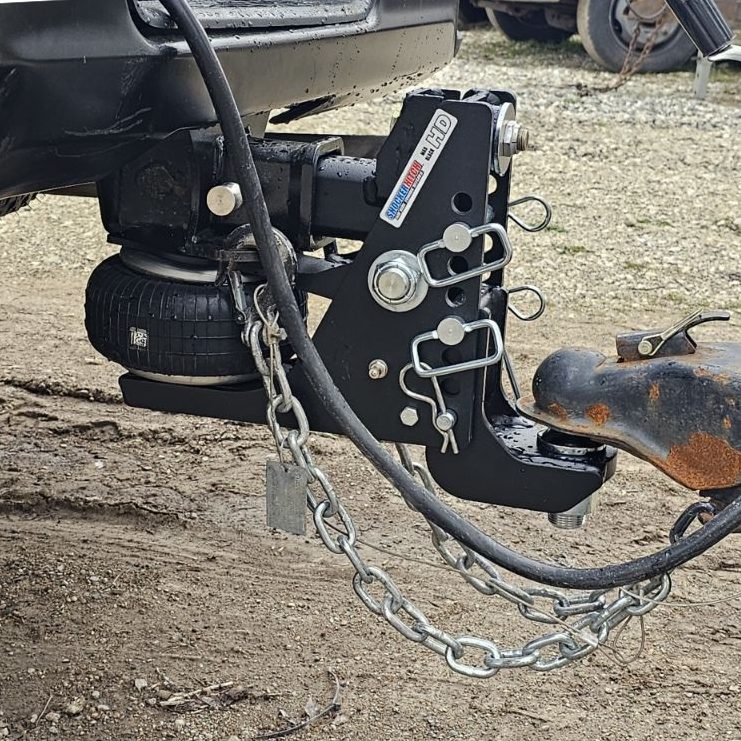

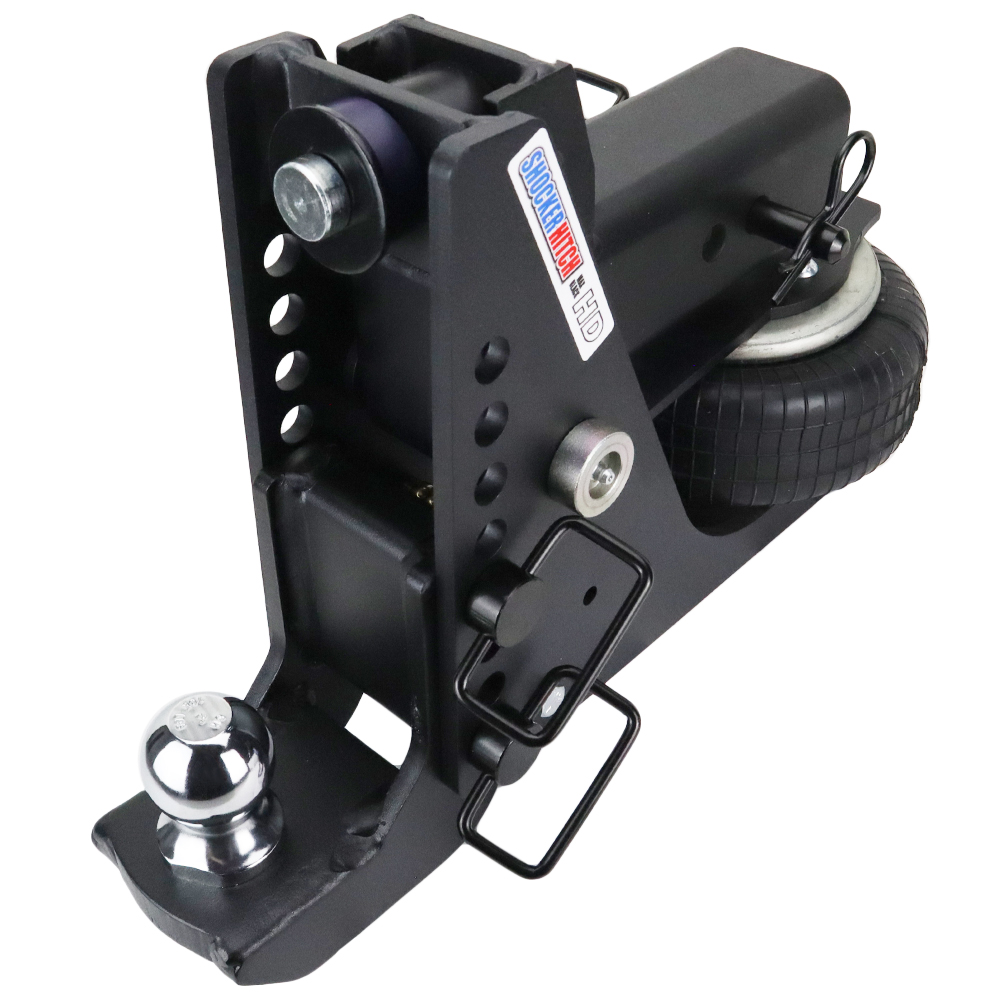

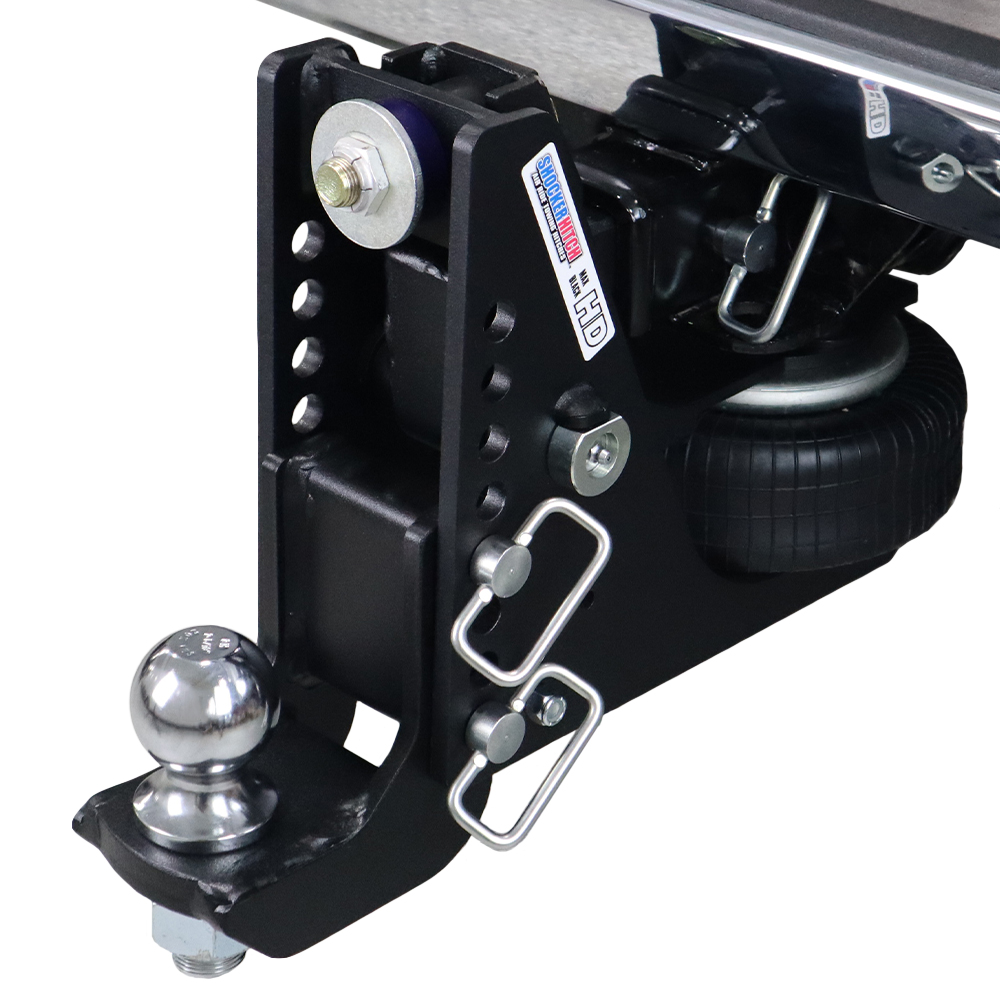

Shocker HD Max Black Drop Air Hitch Installed
Shocker HD Max Black Drop Air Hitch Installed

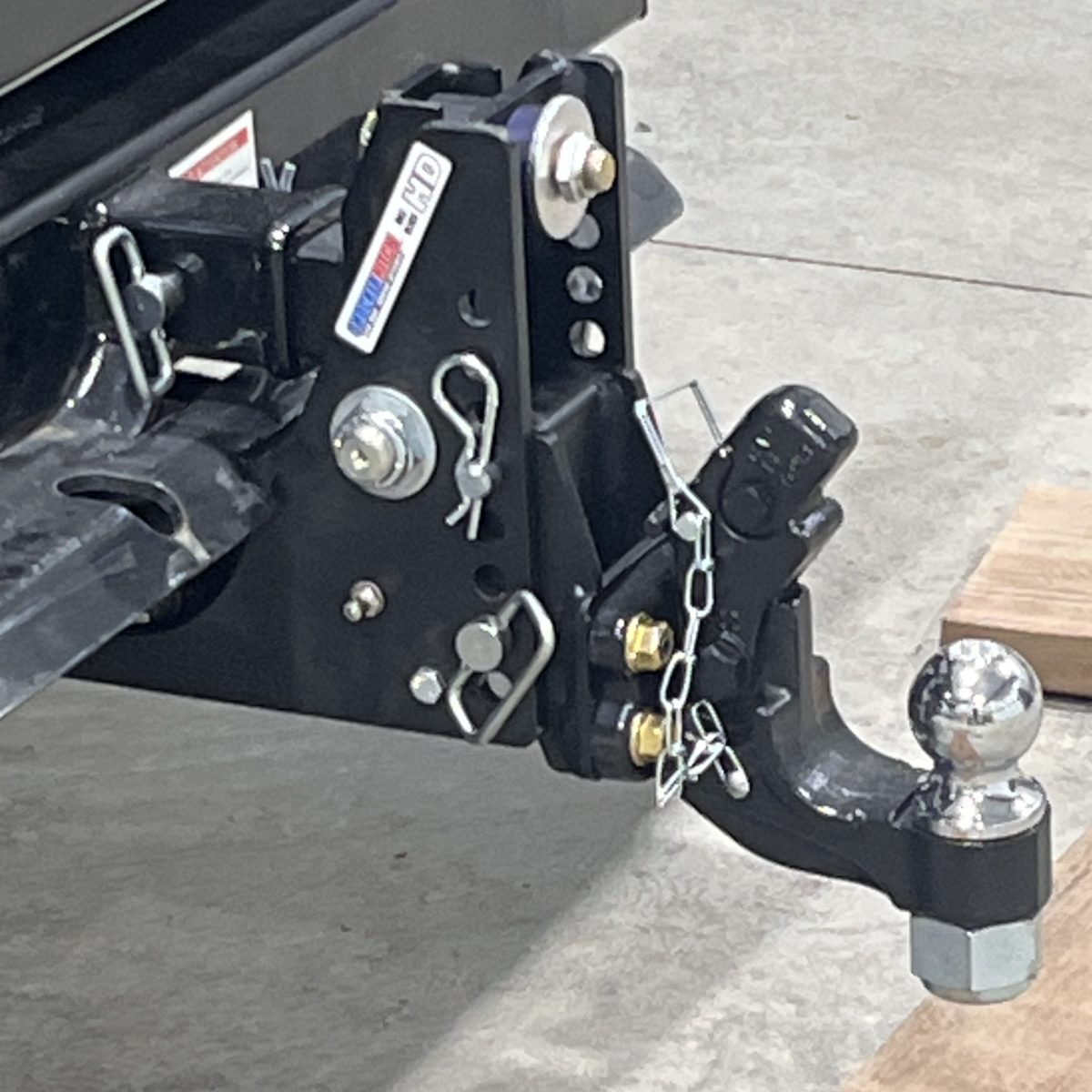

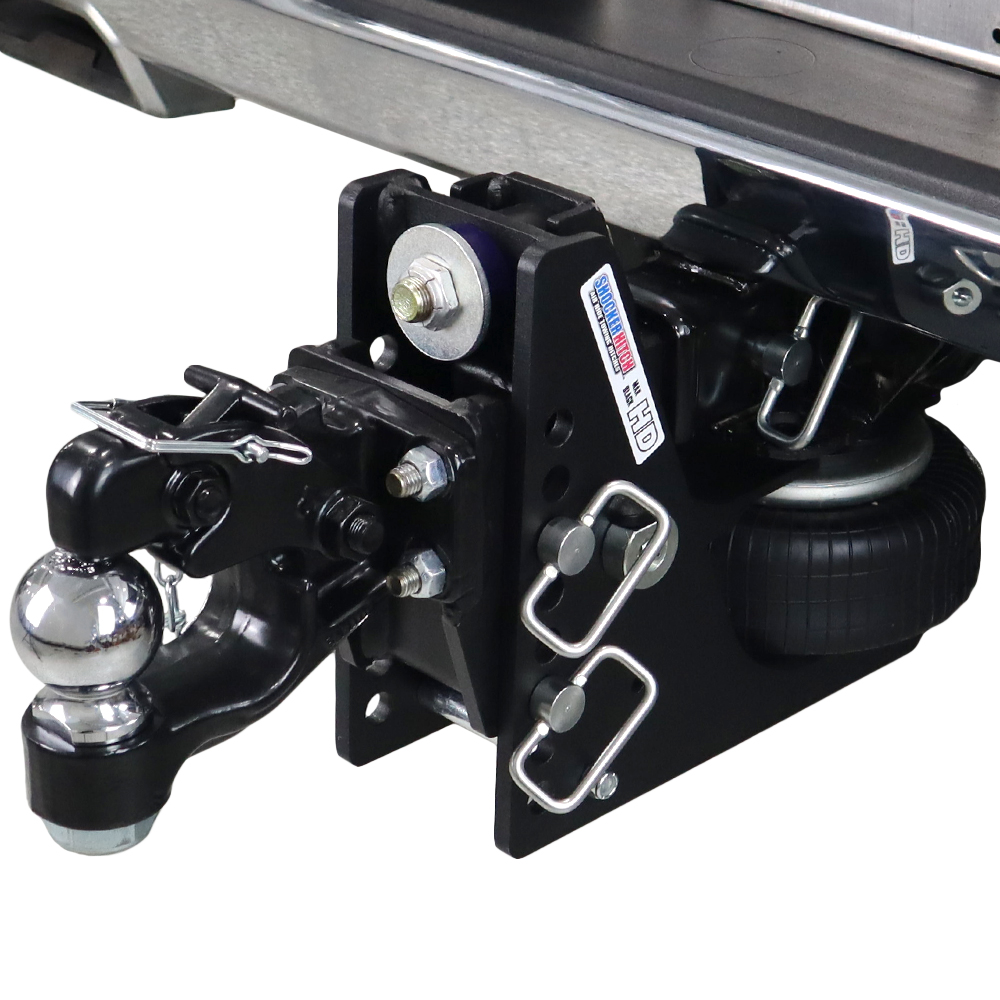

Shocker HD Max Black Air Hitch with Pintle & Ball Mount (Dropped Position)
Shocker HD Max Black Air Hitch with Pintle & Ball Mount (Dropped Position)

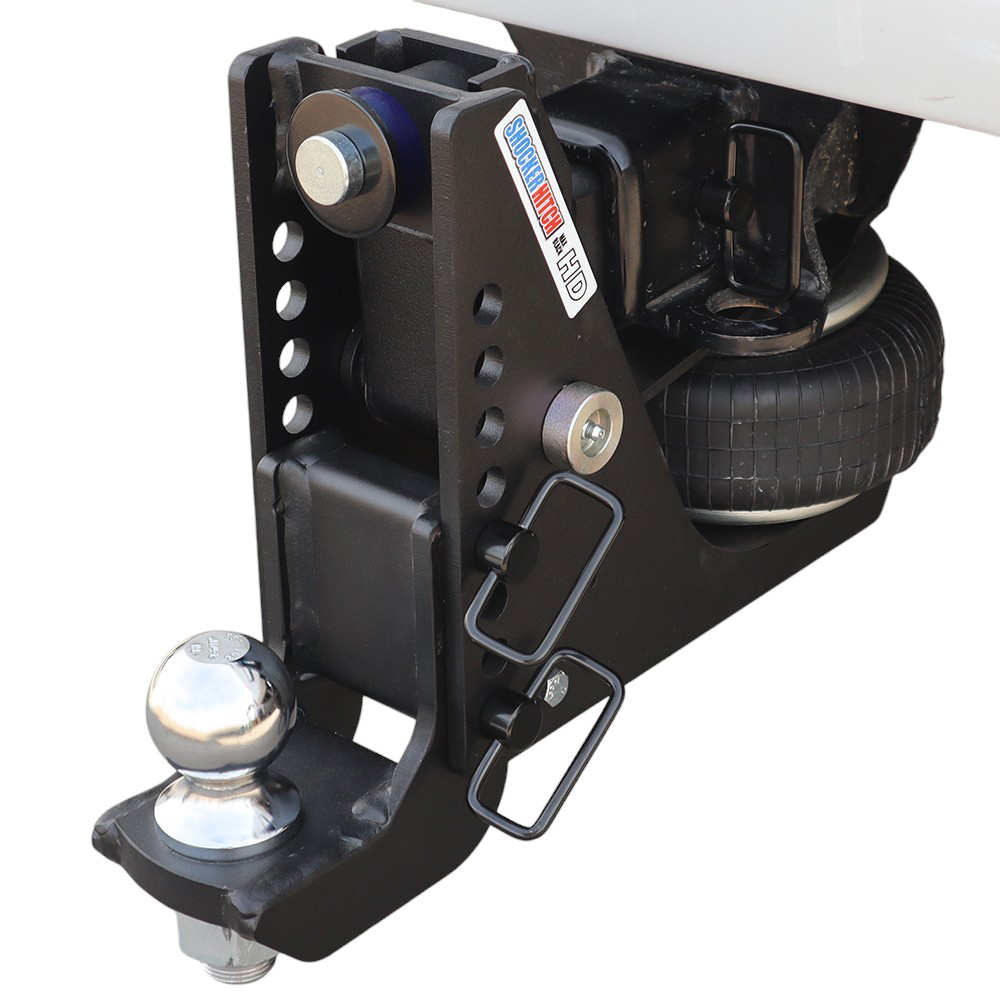

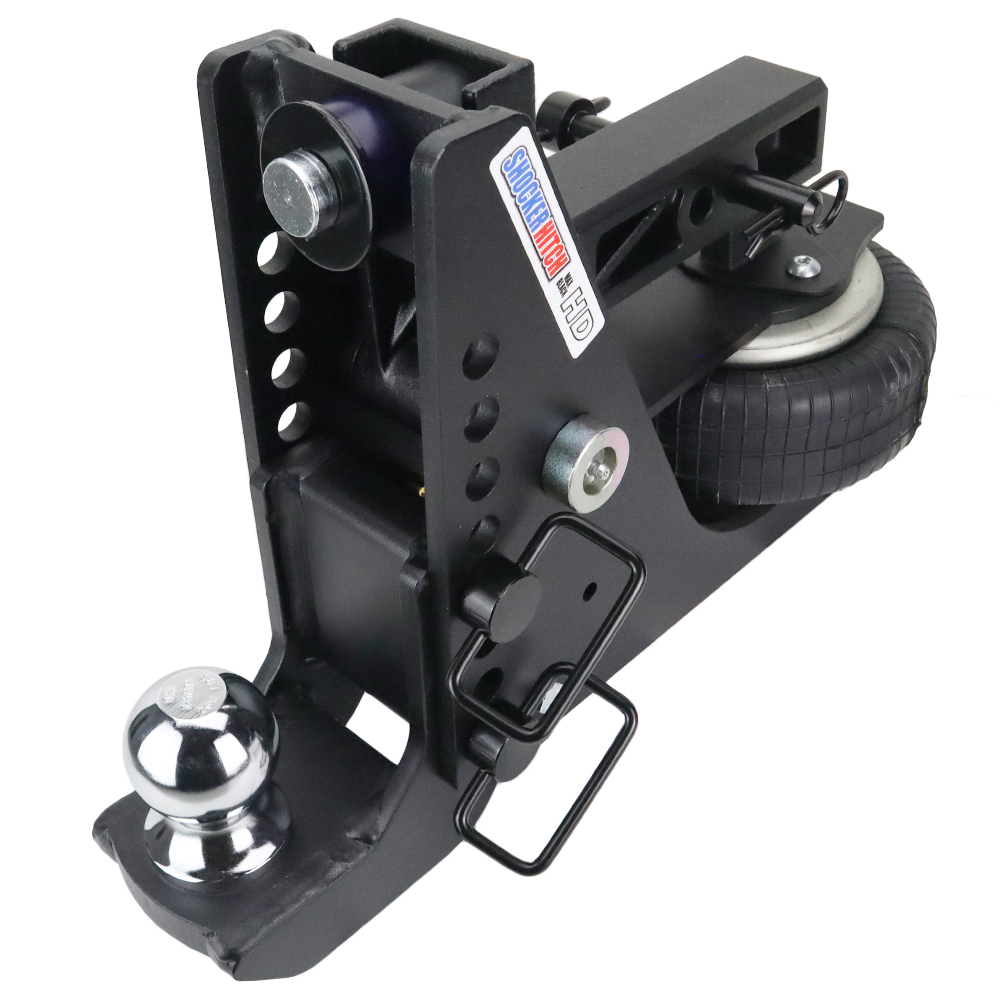

20K HD Max Black Air Hitch & Drop Mount w/ 2-5/16" Ball Installed
20K HD Max Black Air Hitch & Drop Mount w/ 2-5/16" Ball Installed

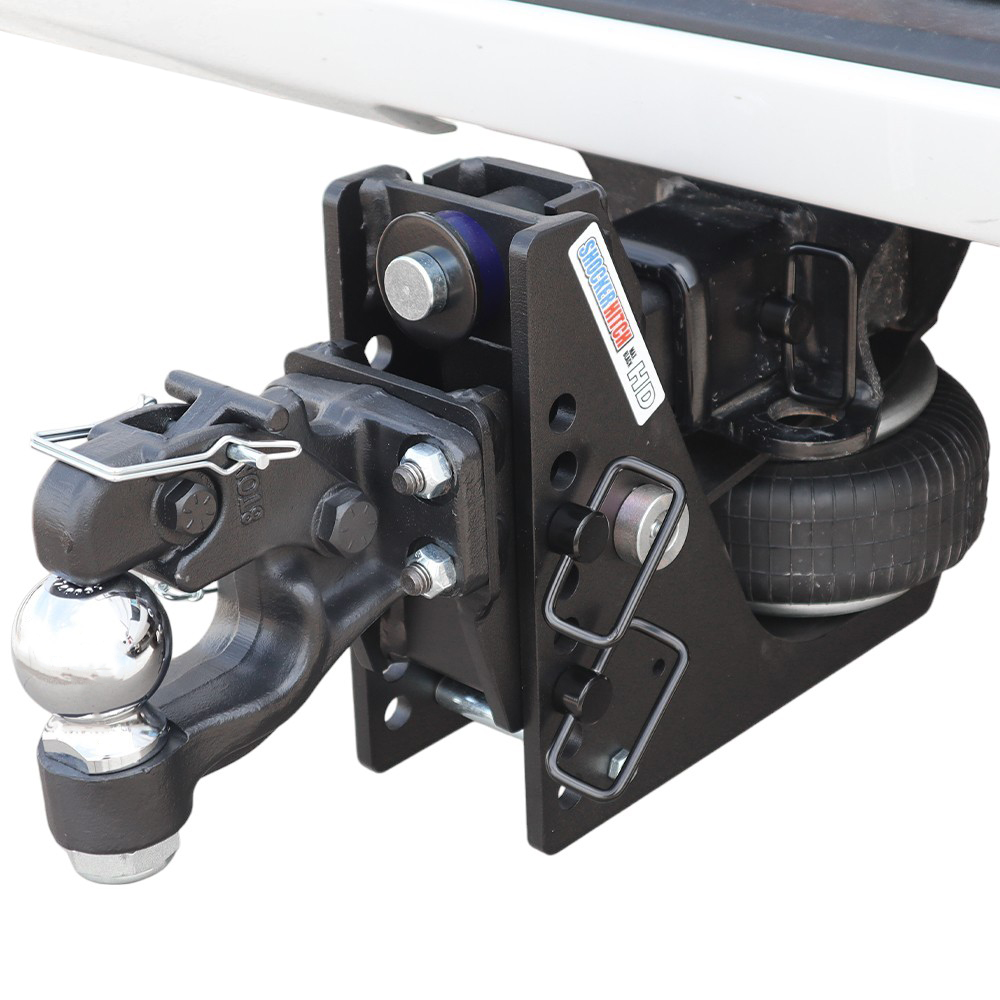

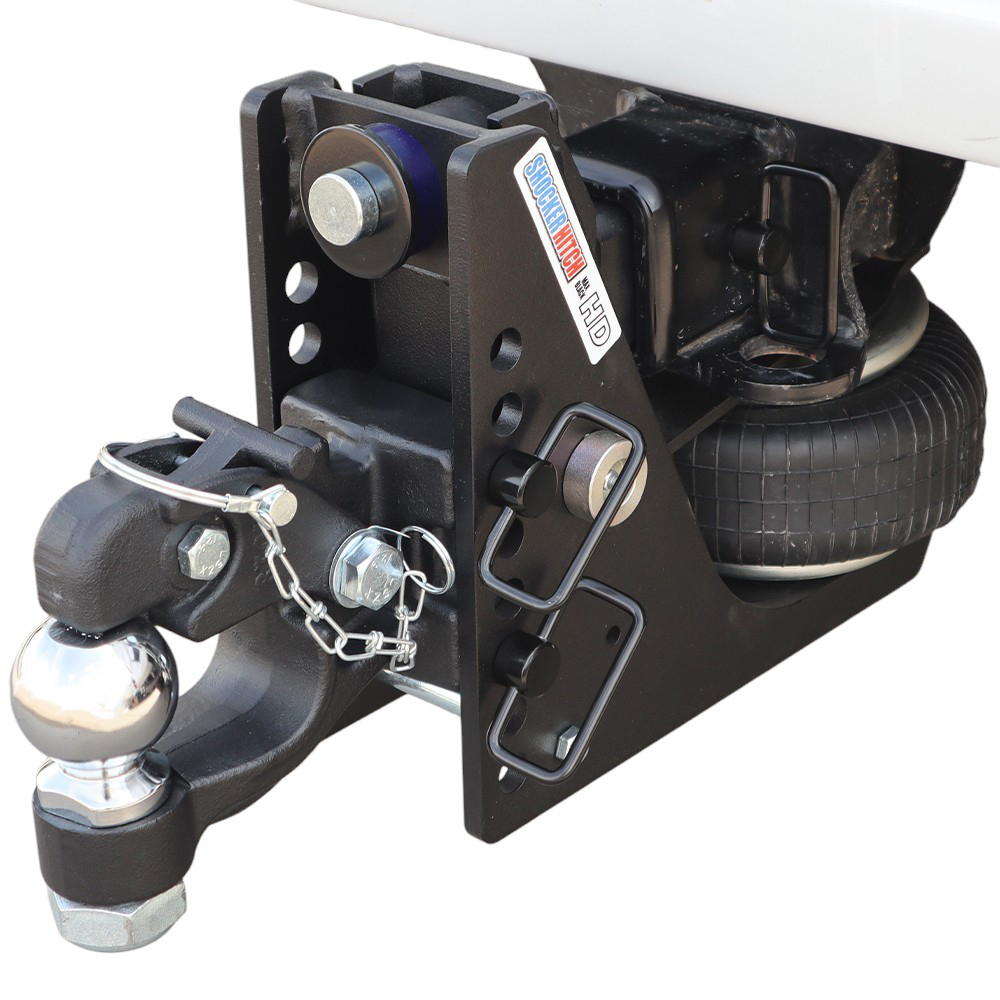

20K HD Max Black Air Hitch & Channel 8-Ton Pintle & 2-5/16" Ball Installed
20K HD Max Black Air Hitch & Channel 8-Ton Pintle & 2-5/16" Ball Installed

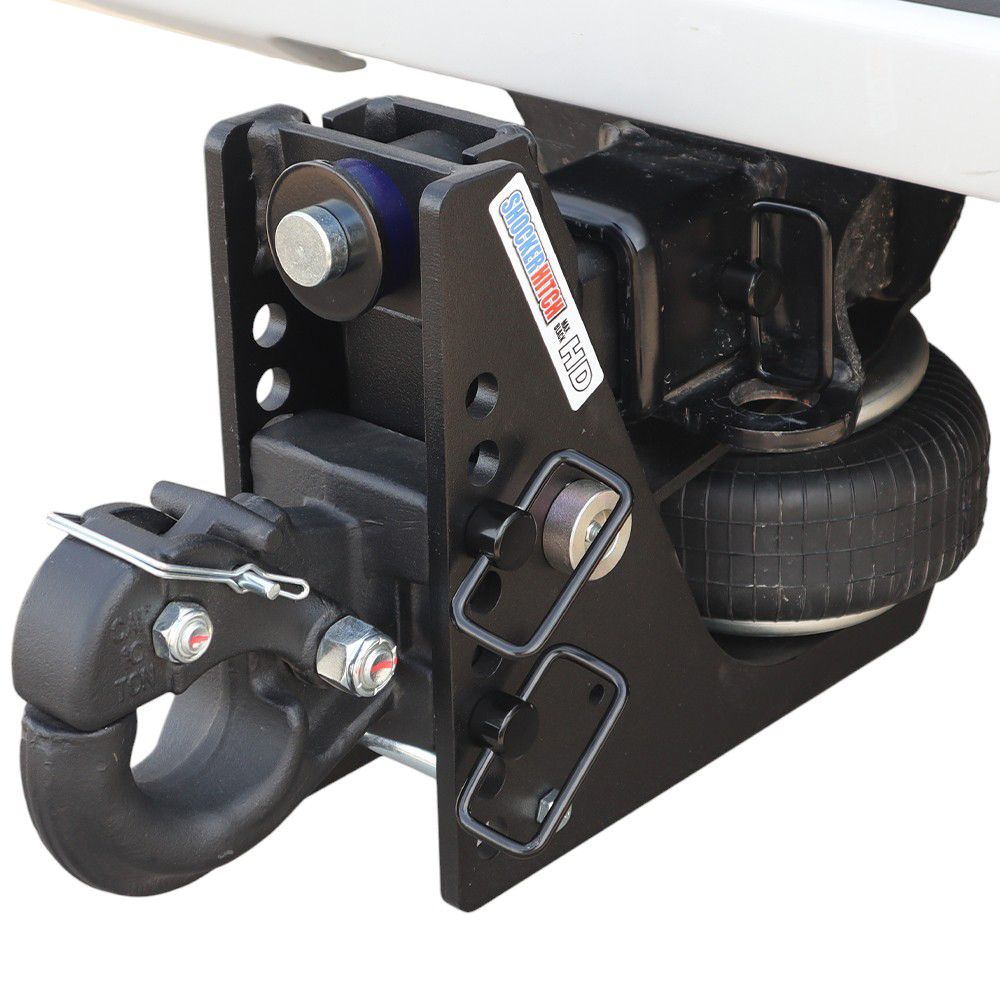

20K HD Max Black Air Hitch & Channel Pintle Installed
20K HD Max Black Air Hitch & Channel Pintle Installed

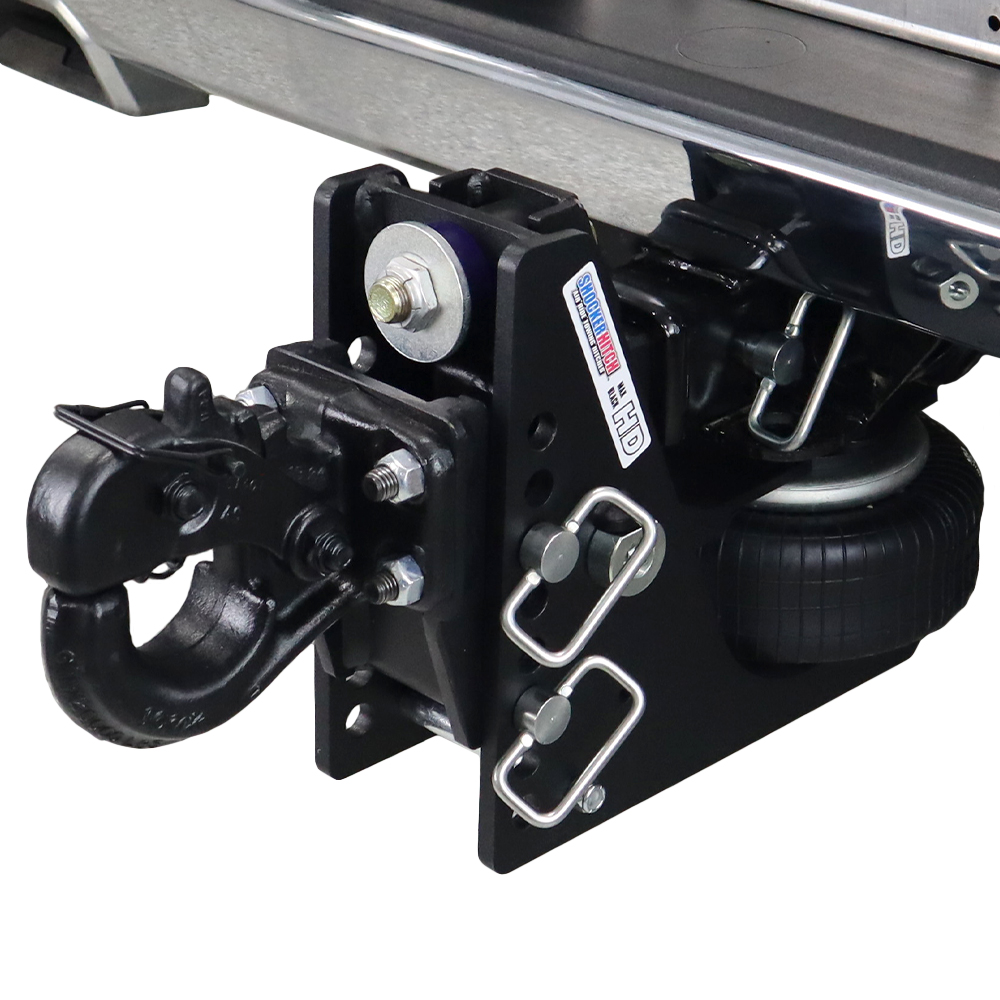

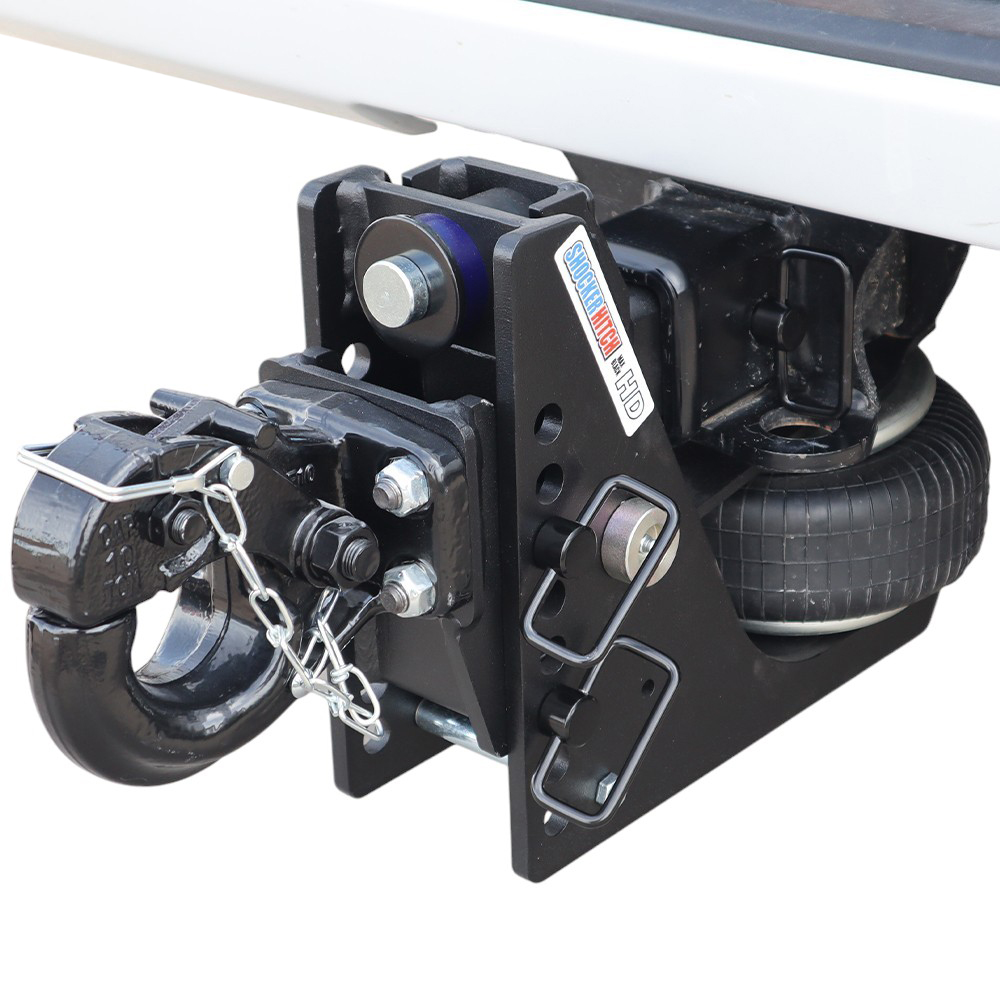

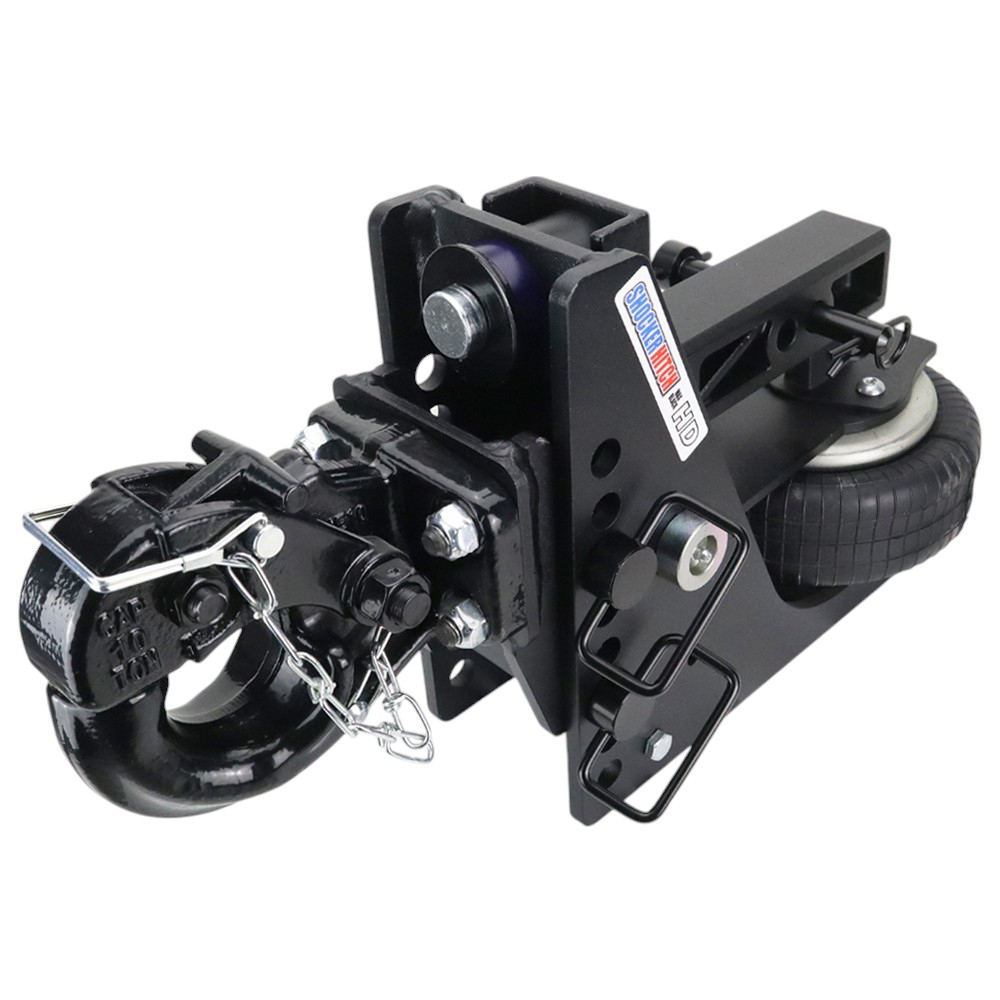

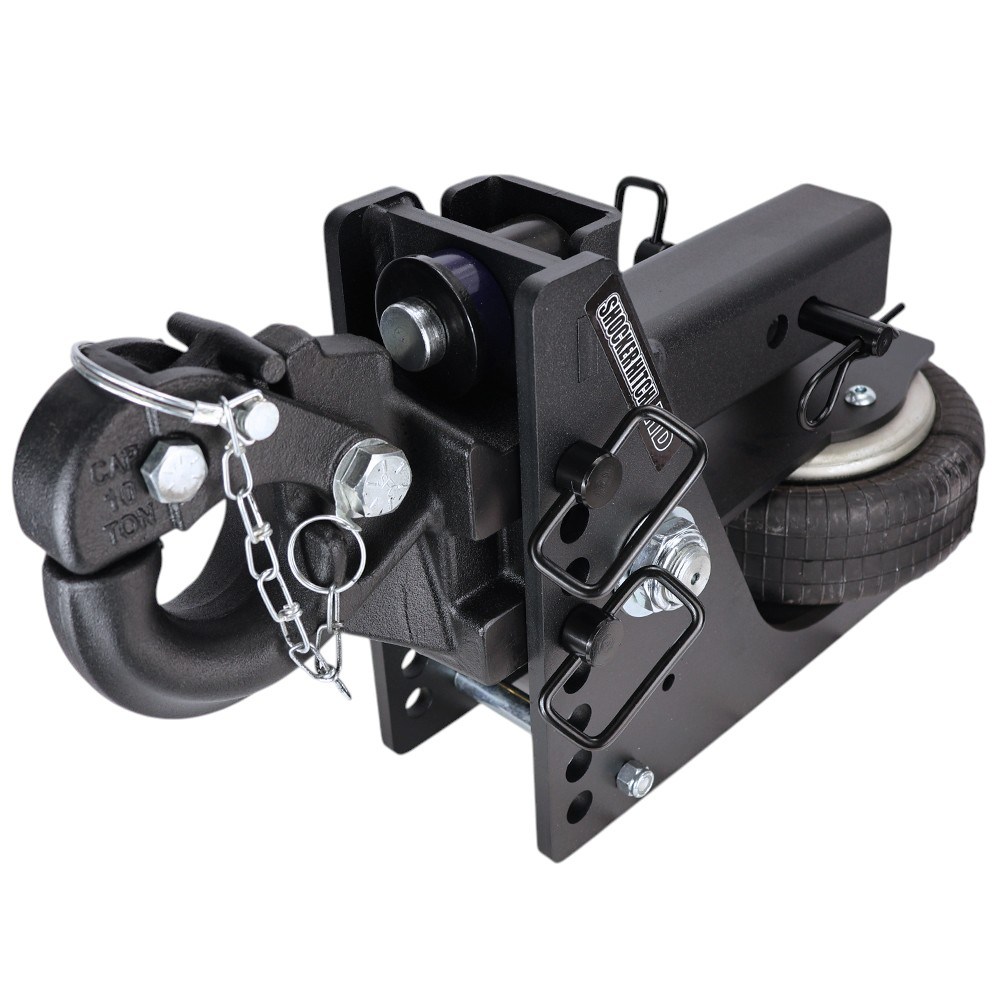

20K HD Max Black Air Hitch & Raised 10-Ton Pintle - 2-1/2" Receiver
20K HD Max Black Air Hitch & Raised 10-Ton Pintle - 2-1/2" Receiver

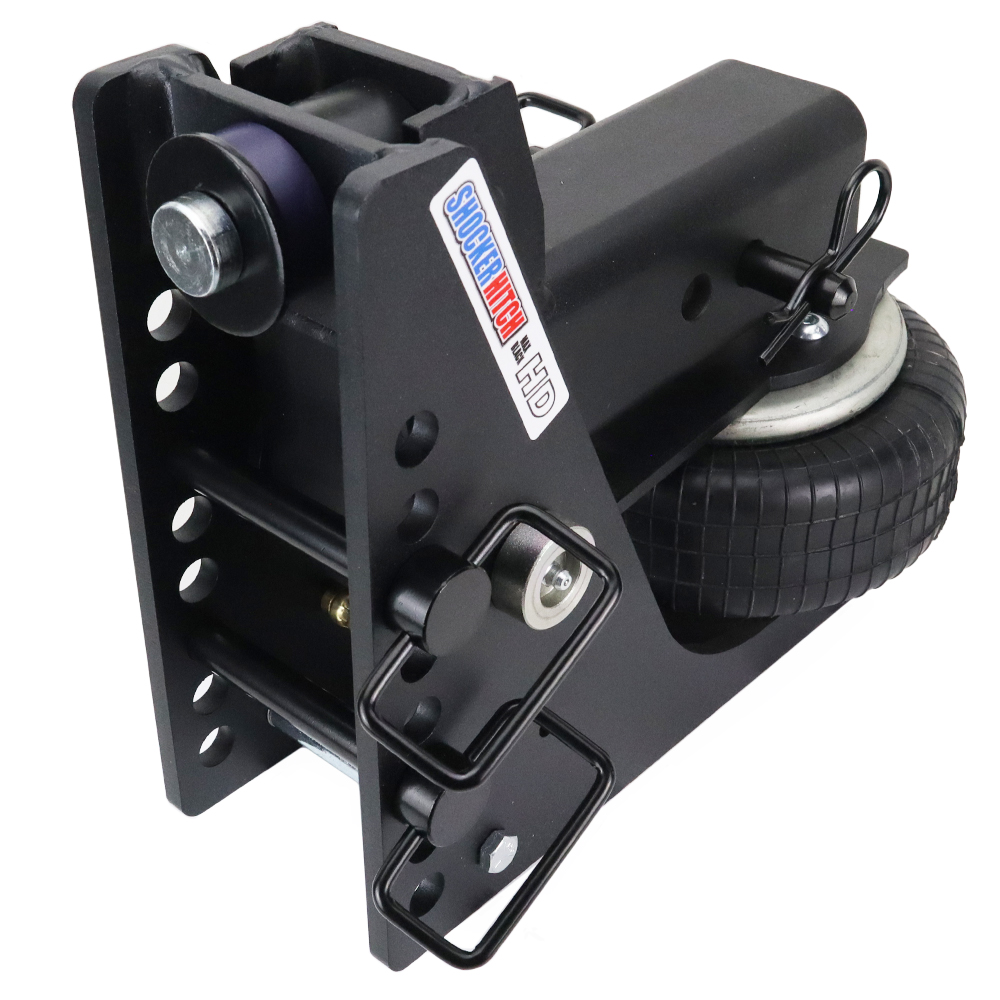

20K HD Max Black Air Hitch Base Frame with Pins - Fits 3" Receiver
20K HD Max Black Air Hitch Base Frame with Pins - Fits 3" Receiver

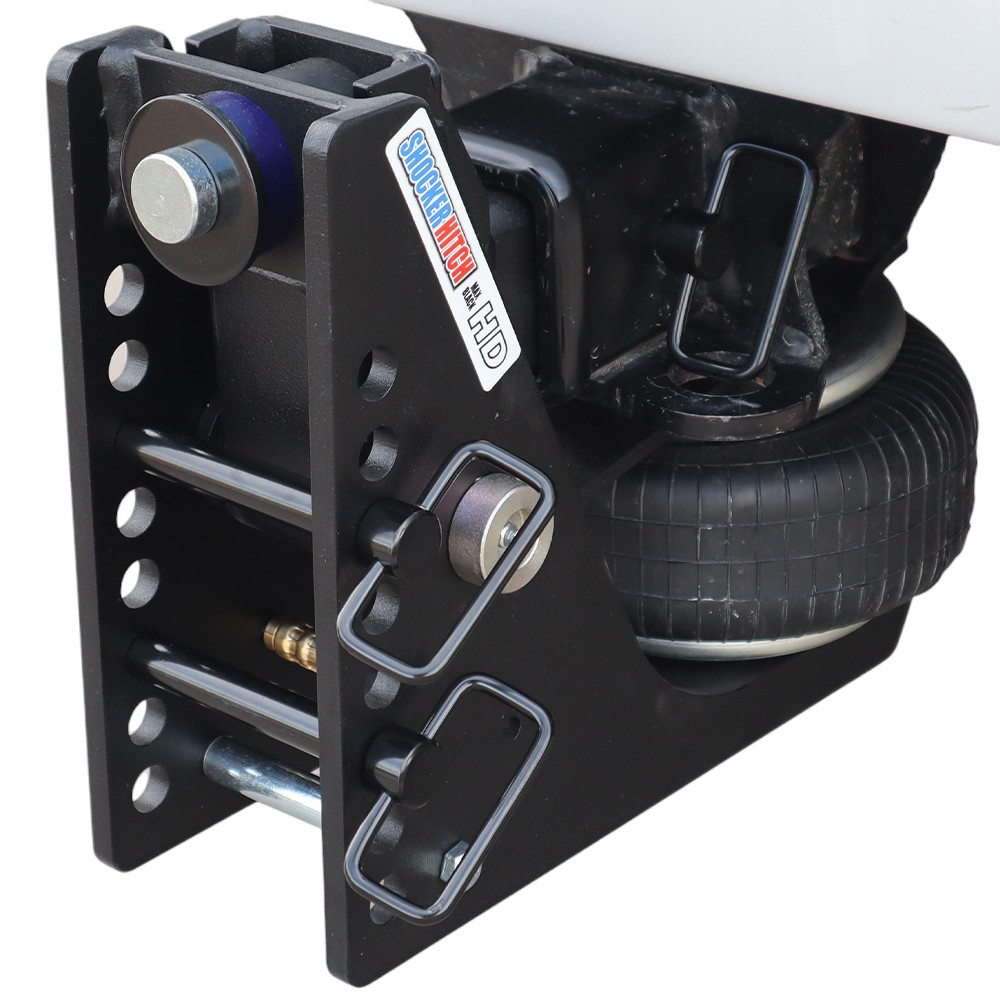

20K HD Max Black Air Hitch Base Frame with Pins Installed
20K HD Max Black Air Hitch Base Frame with Pins Installed

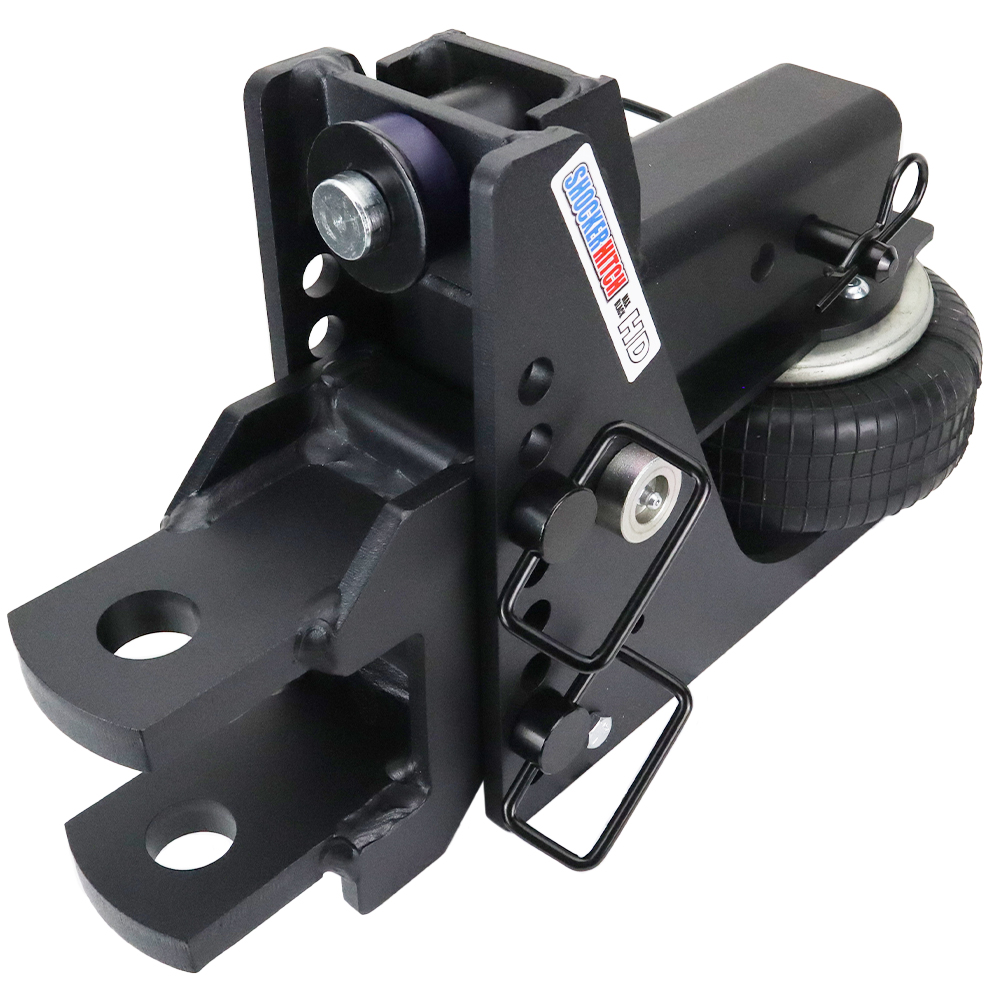

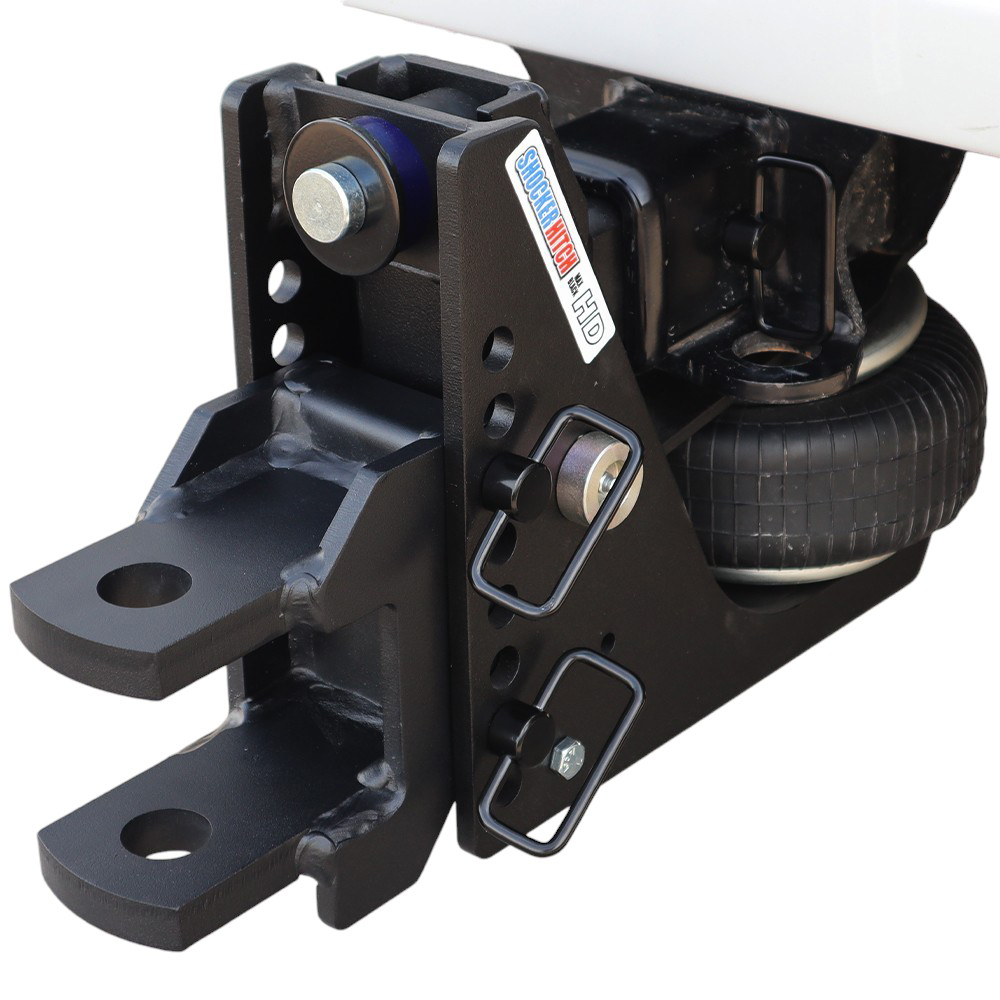

20K HD Max Black Air Hitch & Clevis Installed
20K HD Max Black Air Hitch & Clevis Installed

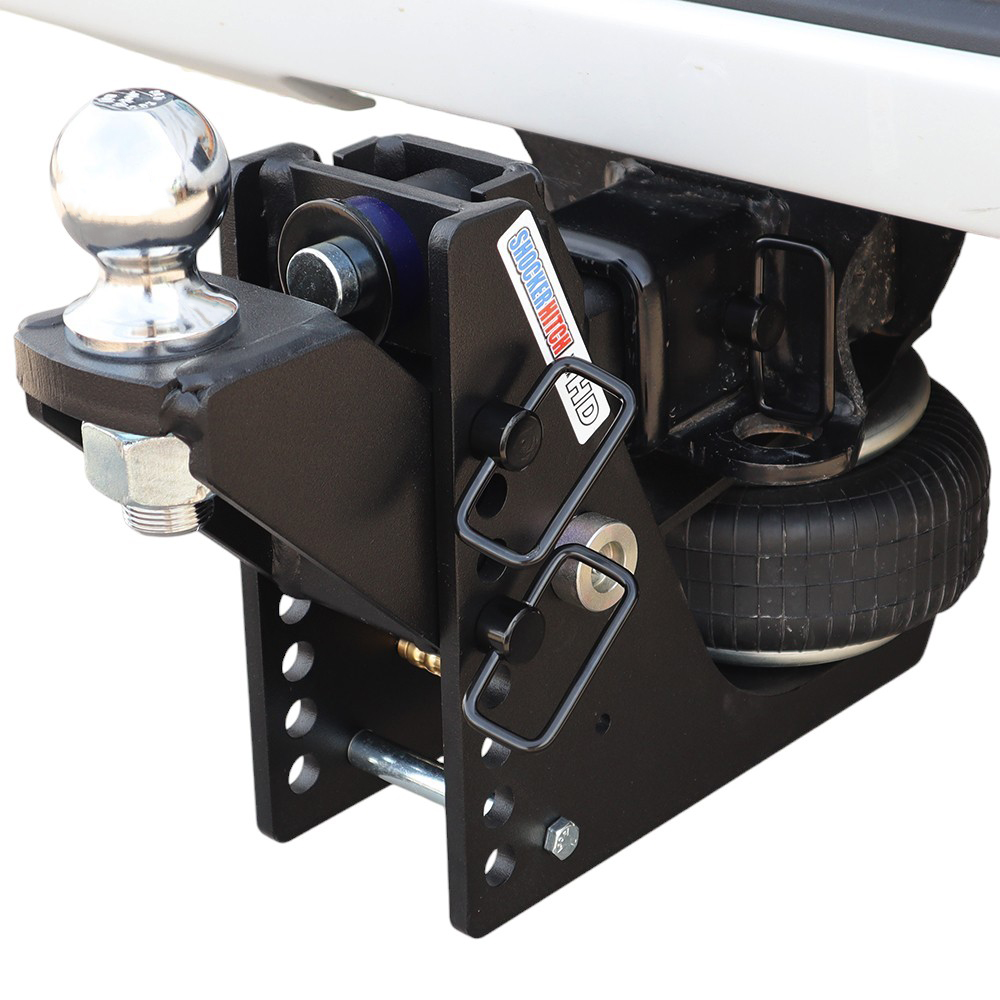

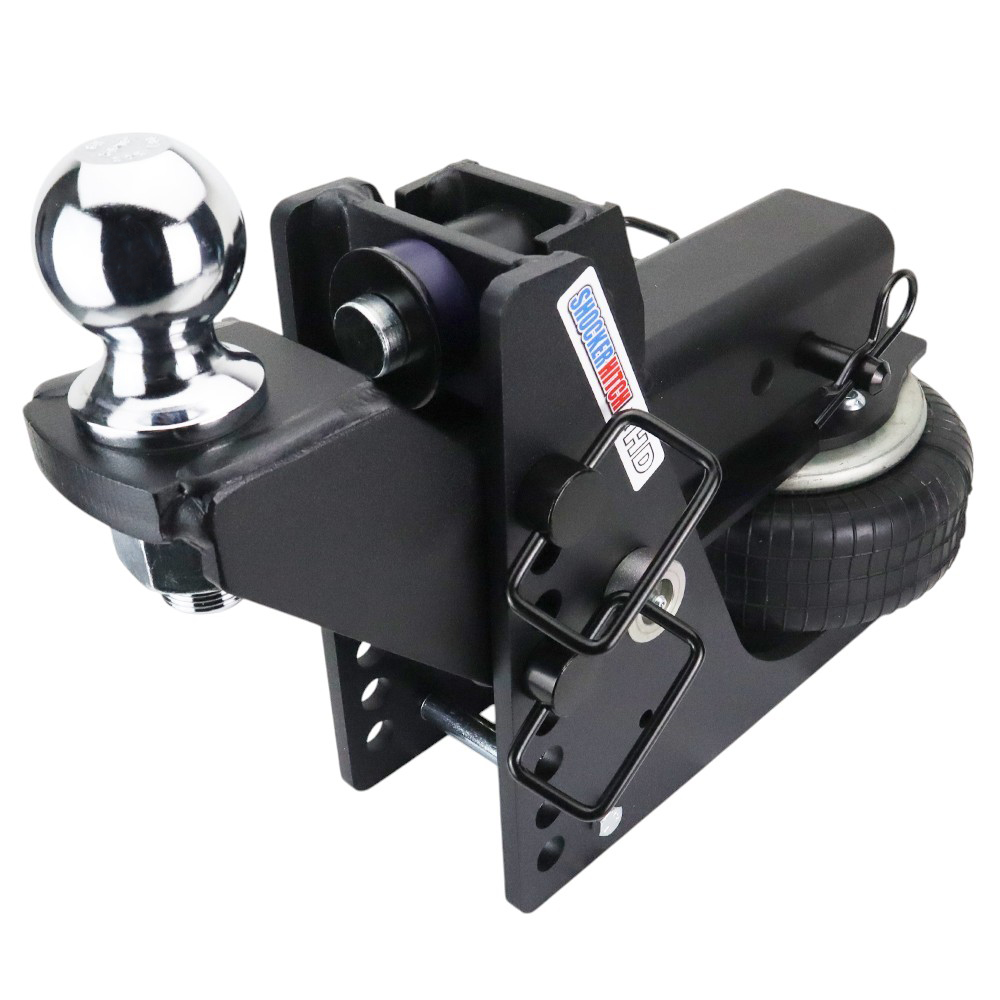

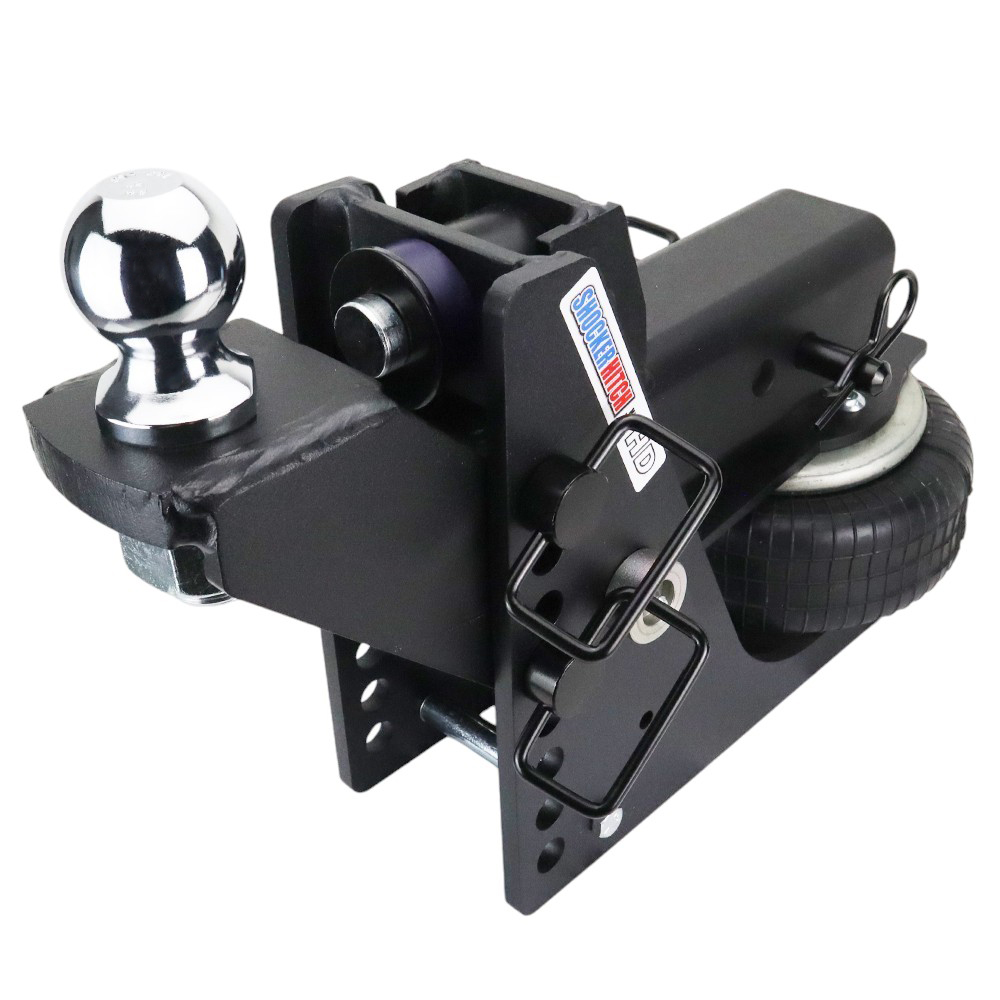

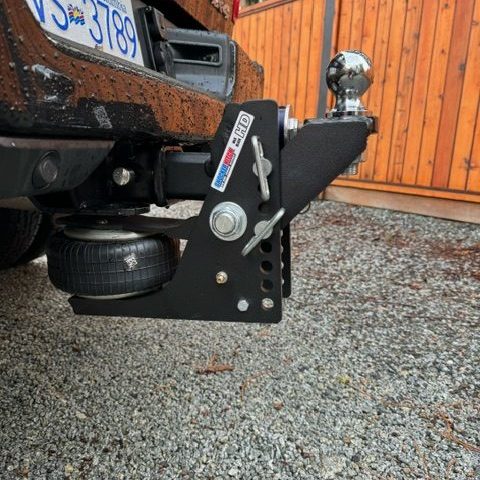

20K HD Max Black Air Hitch & Raised Mount w/ 2-5/16" Ball Installed
20K HD Max Black Air Hitch & Raised Mount w/ 2-5/16" Ball Installed

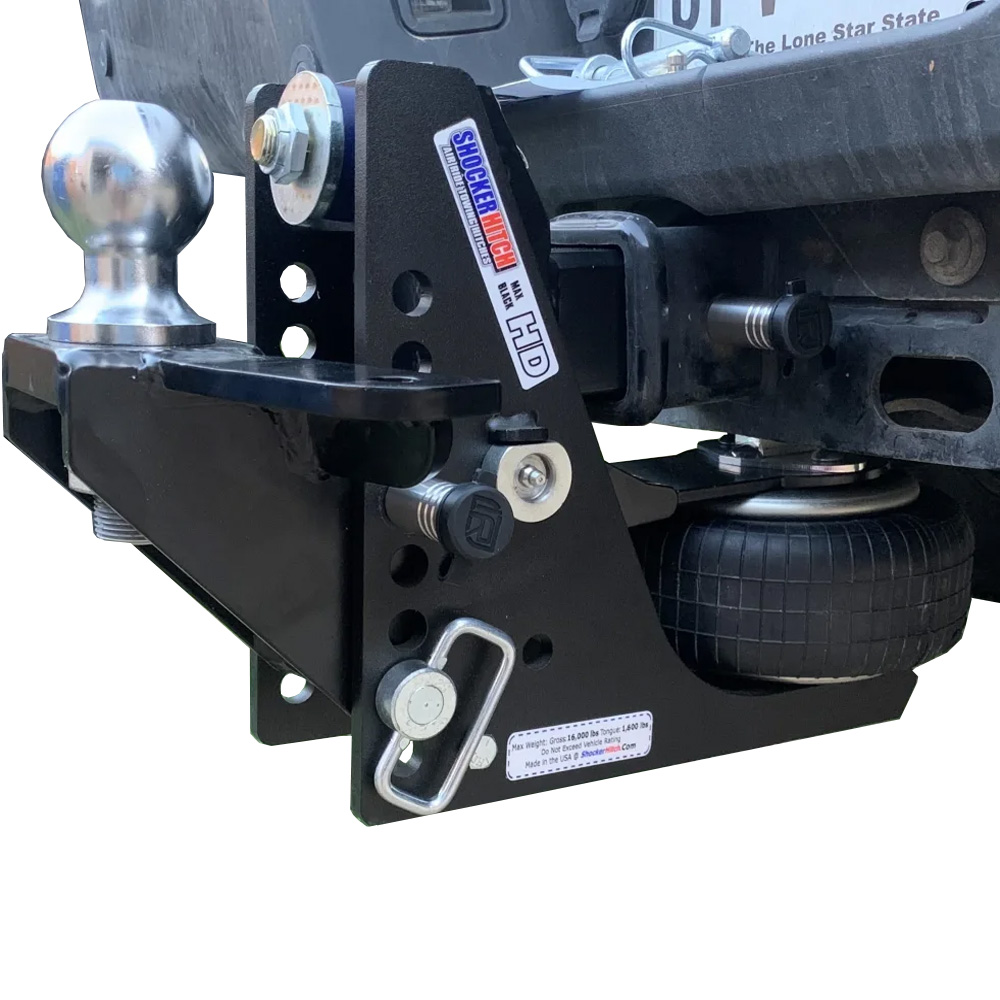

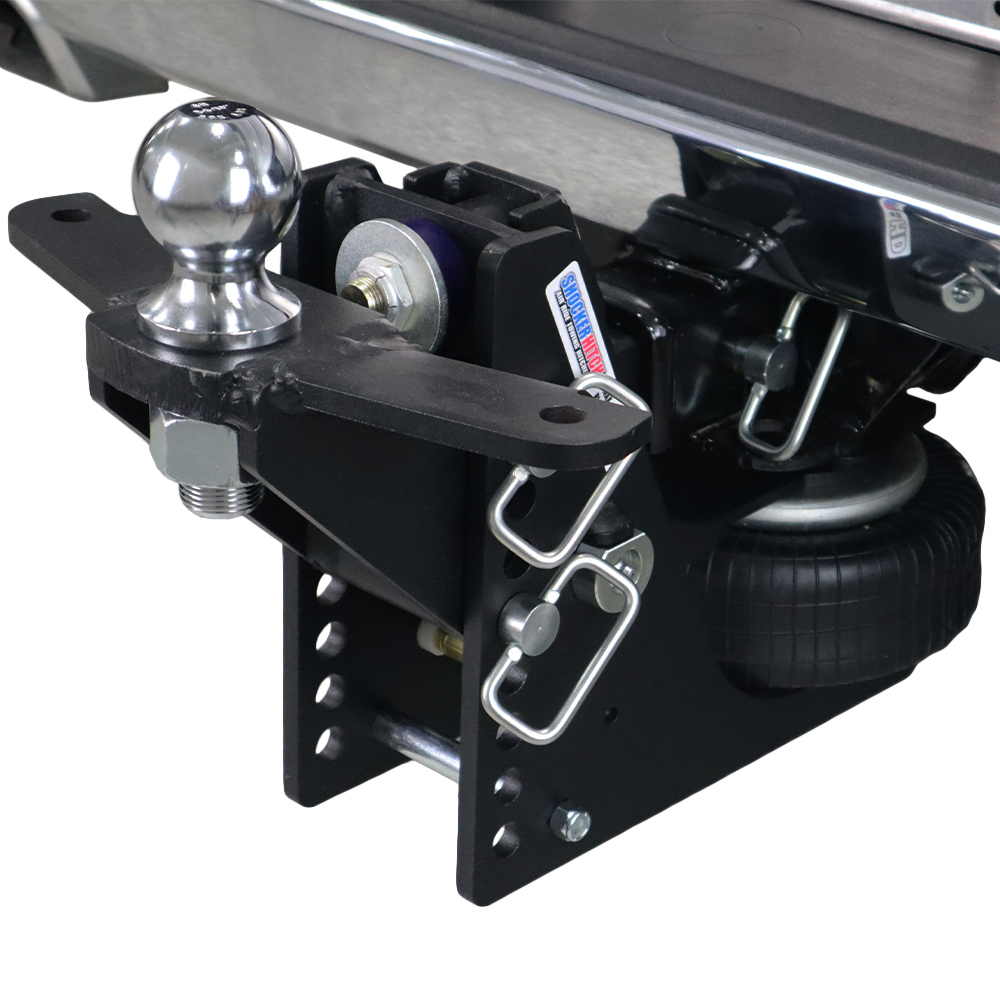

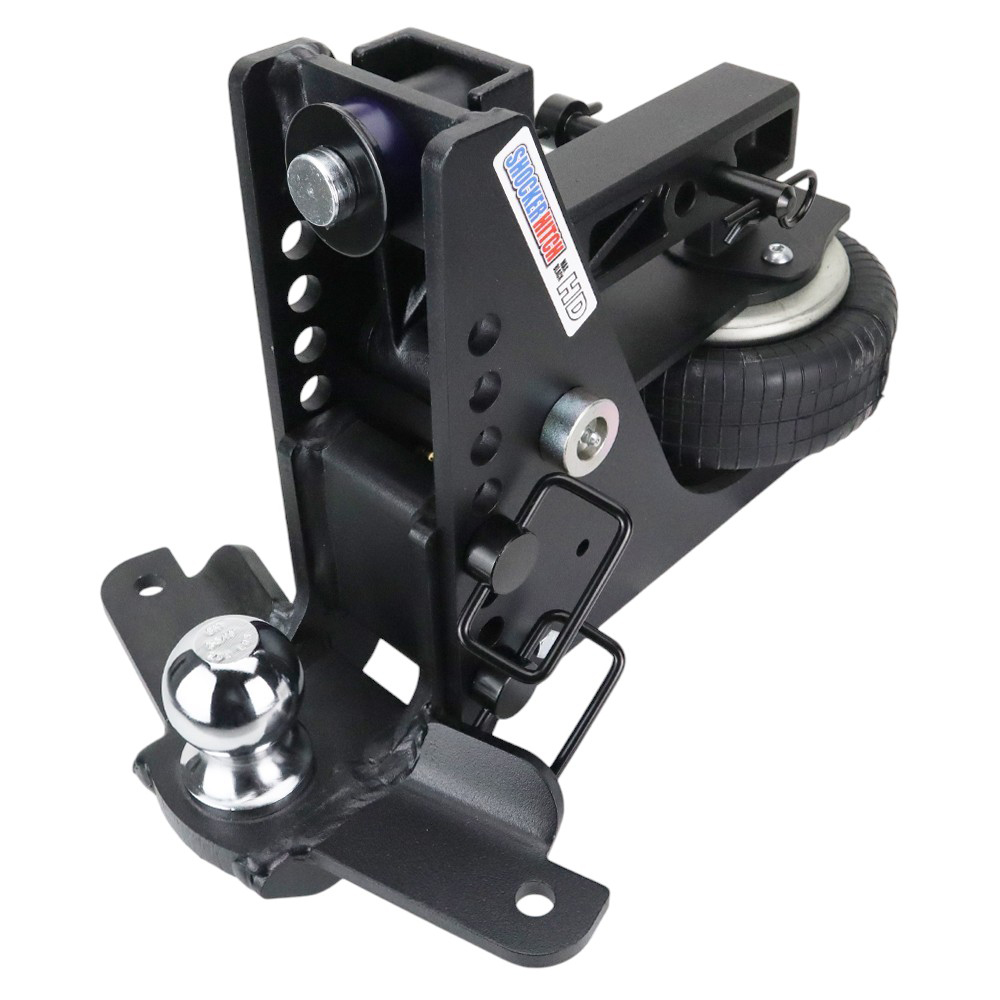

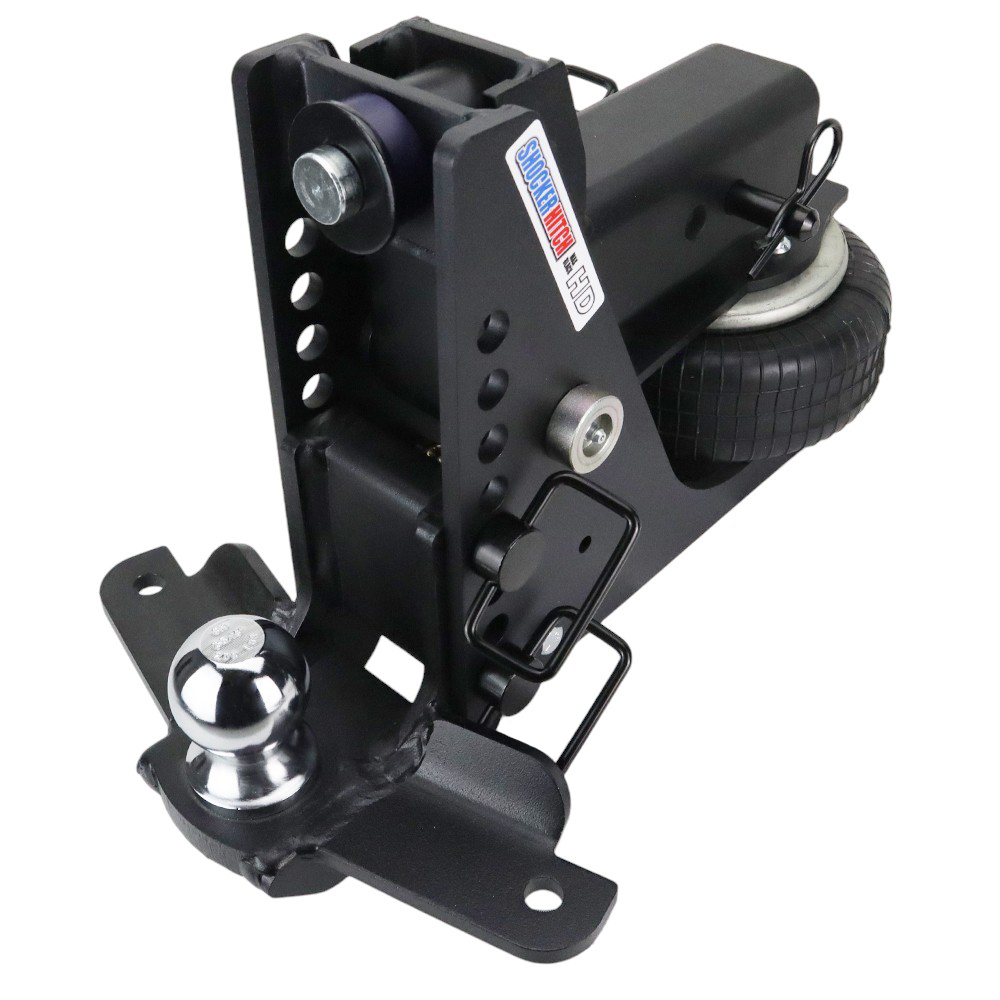

20K HD Max Black Air Hitch & Sway Tab Raised Mount w/ 2-5/16" Ball Installed
20K HD Max Black Air Hitch & Sway Tab Raised Mount w/ 2-5/16" Ball Installed

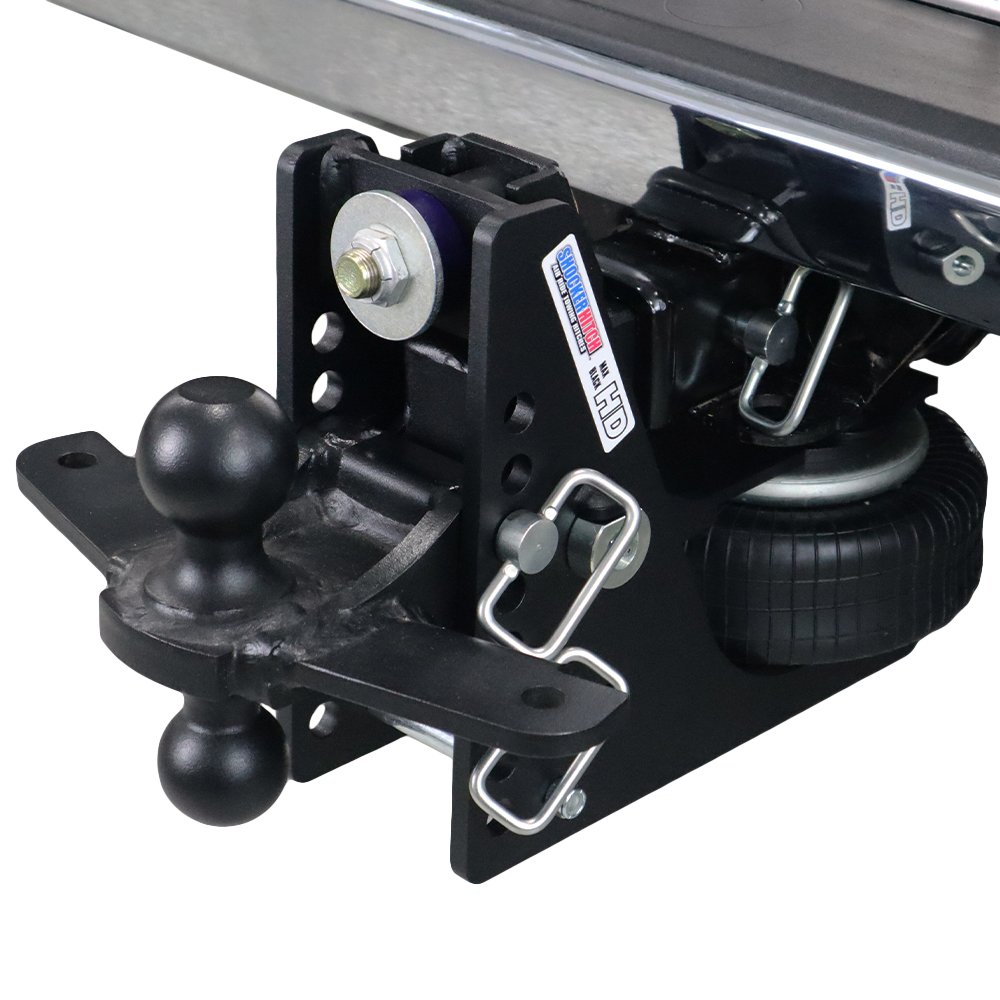

20K HD Max Black Air Hitch & Black Sway Tab Combo Ball Installed
20K HD Max Black Air Hitch & Black Sway Tab Combo Ball Installed

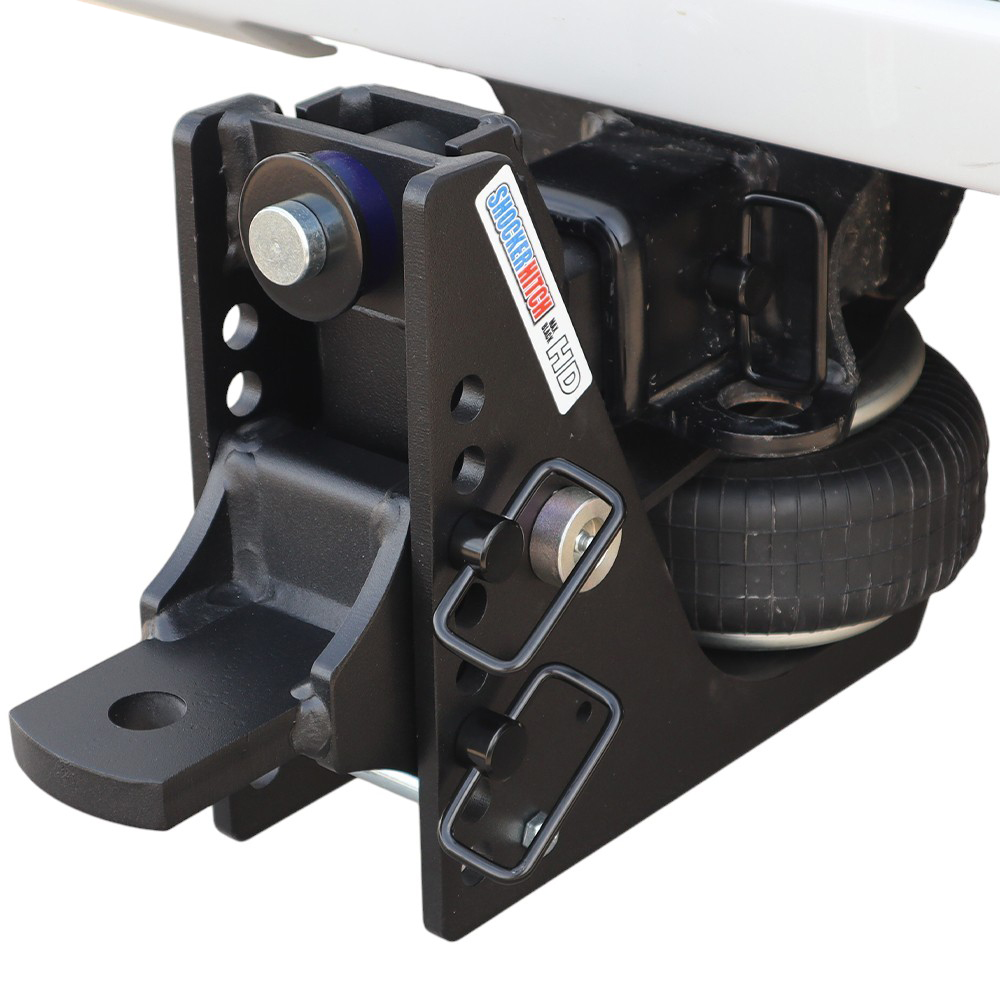

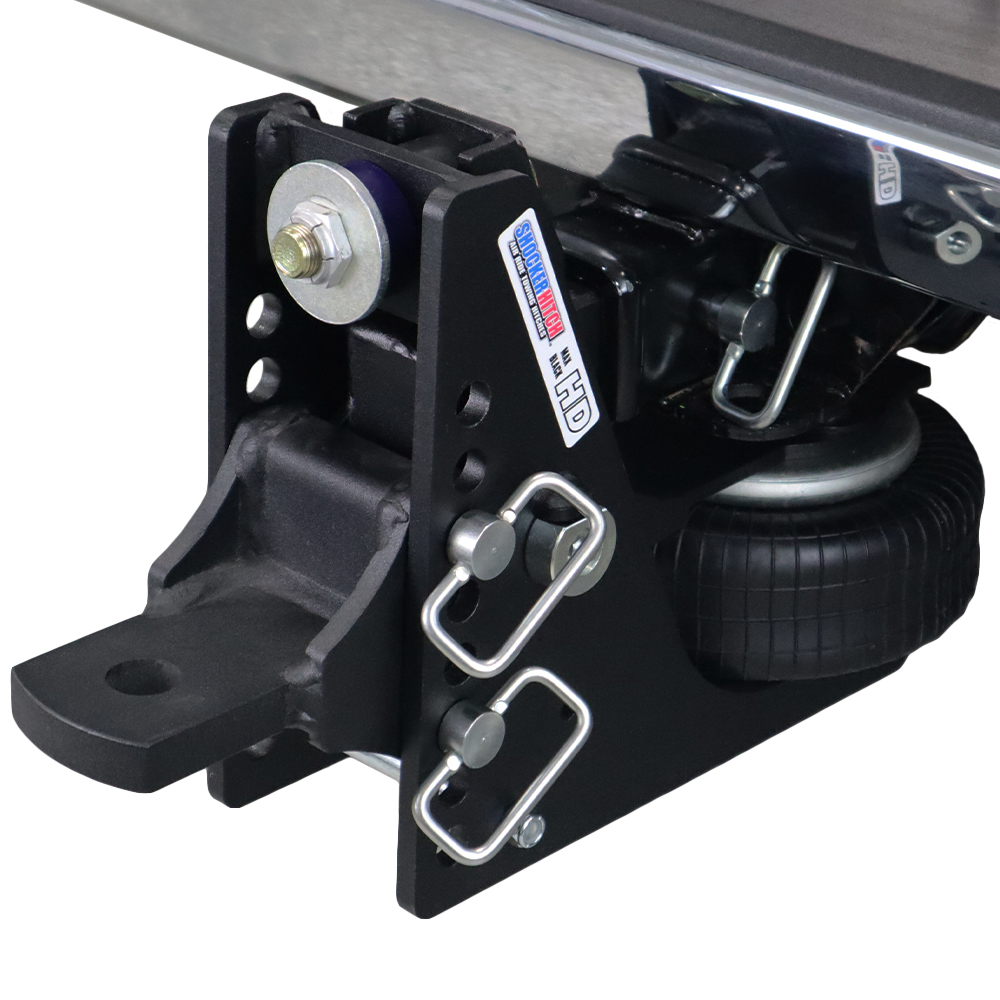

20K HD Max Black Air Hitch & Drawbar Installed
20K HD Max Black Air Hitch & Drawbar Installed

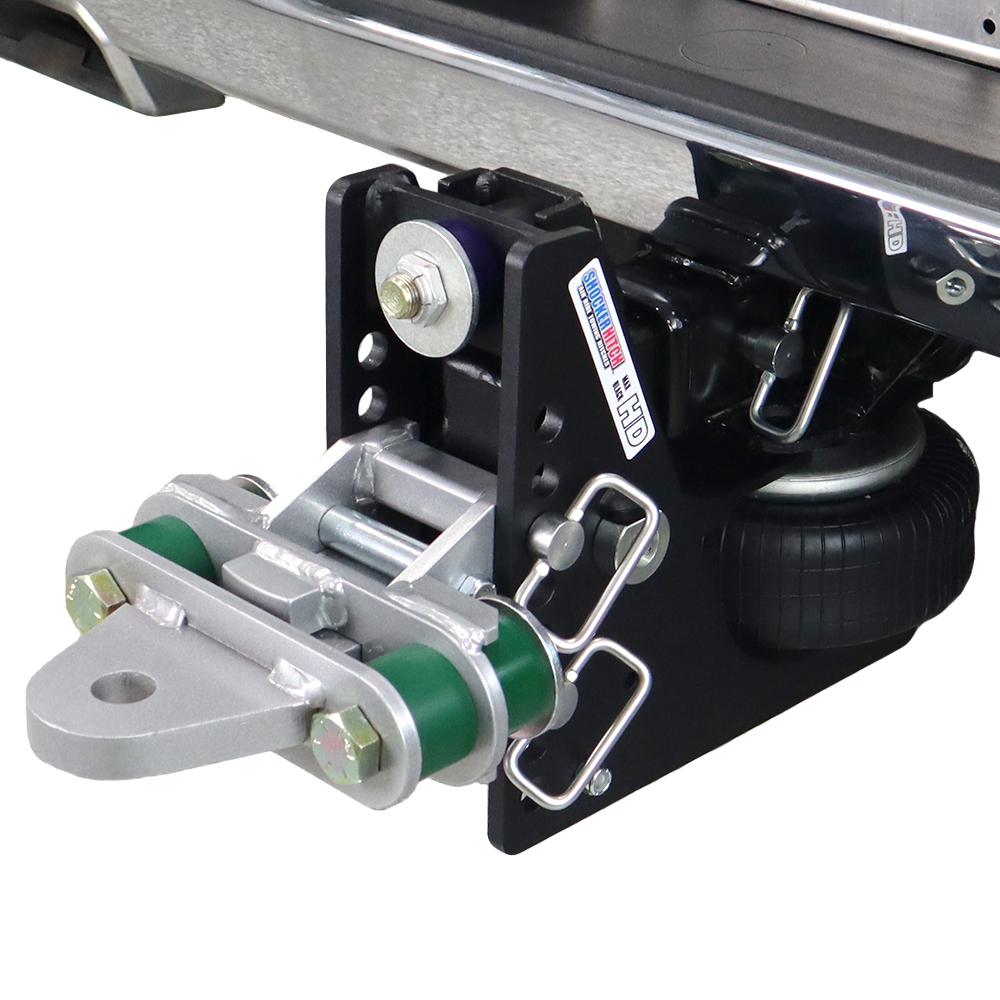

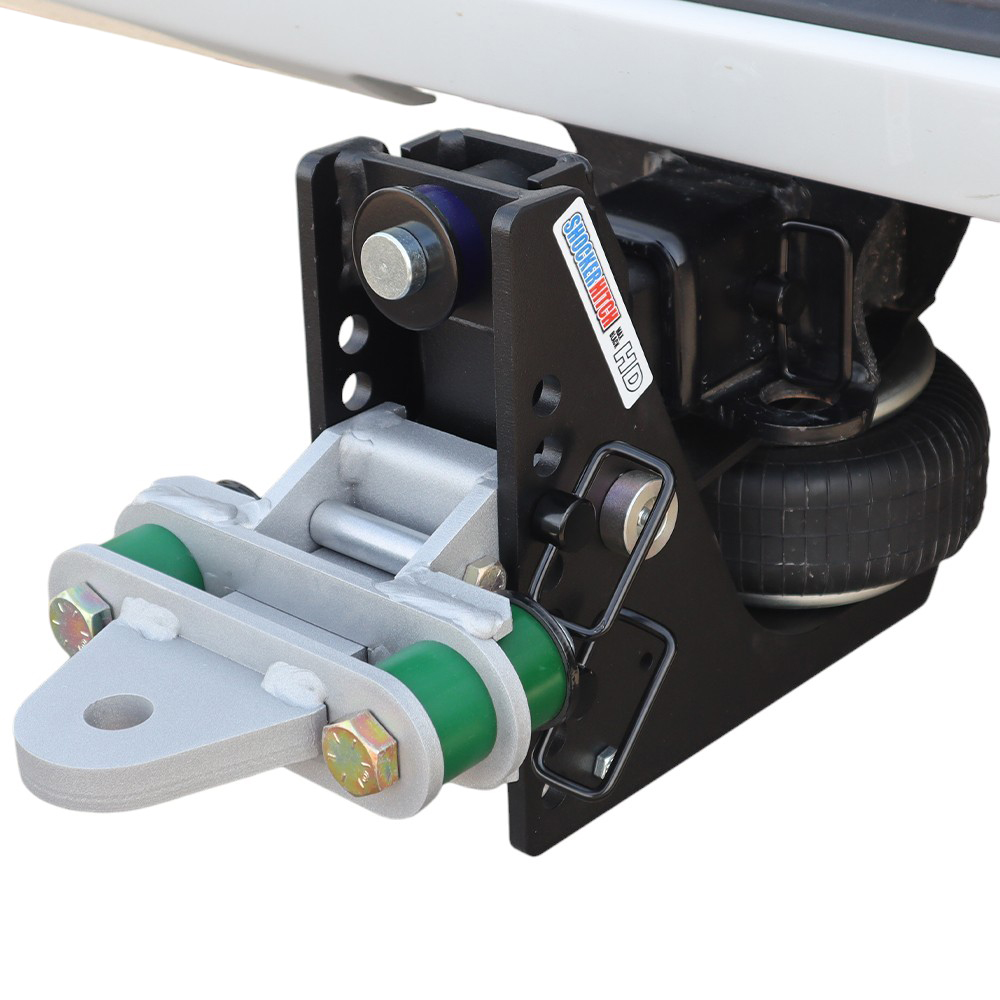

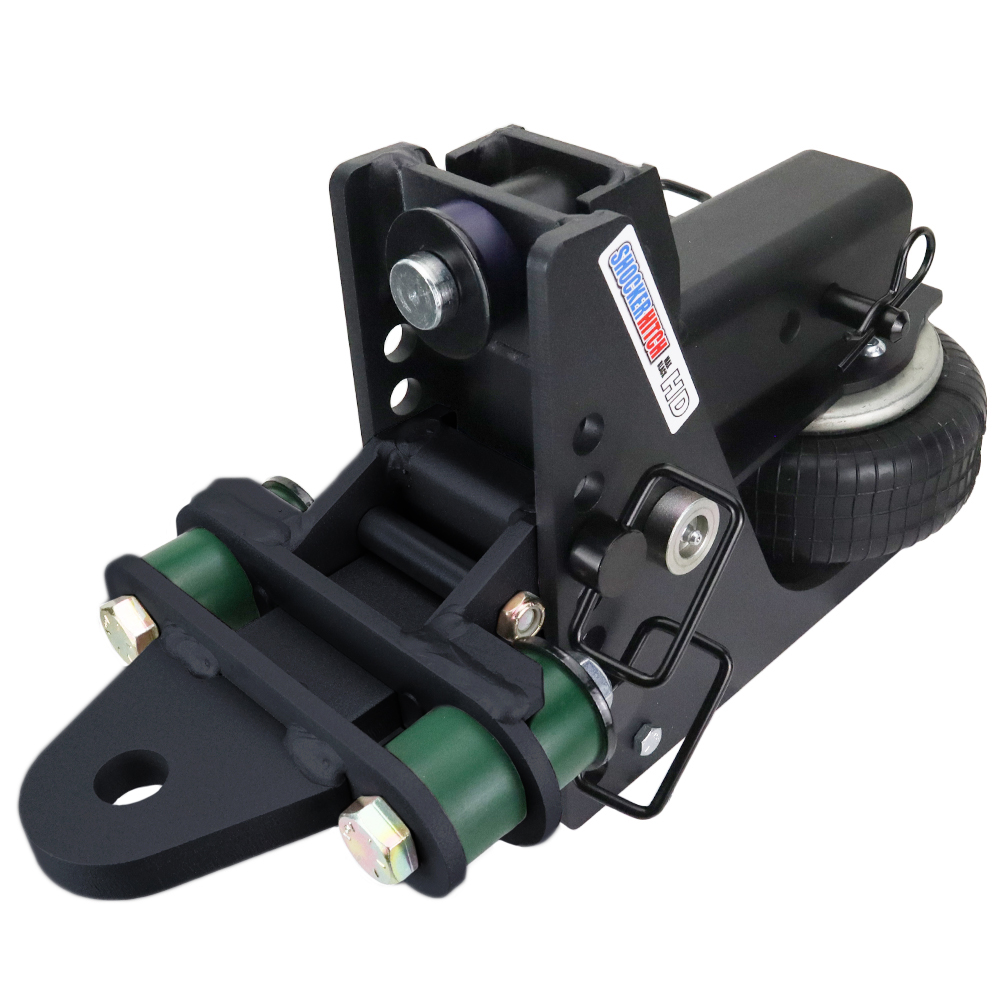

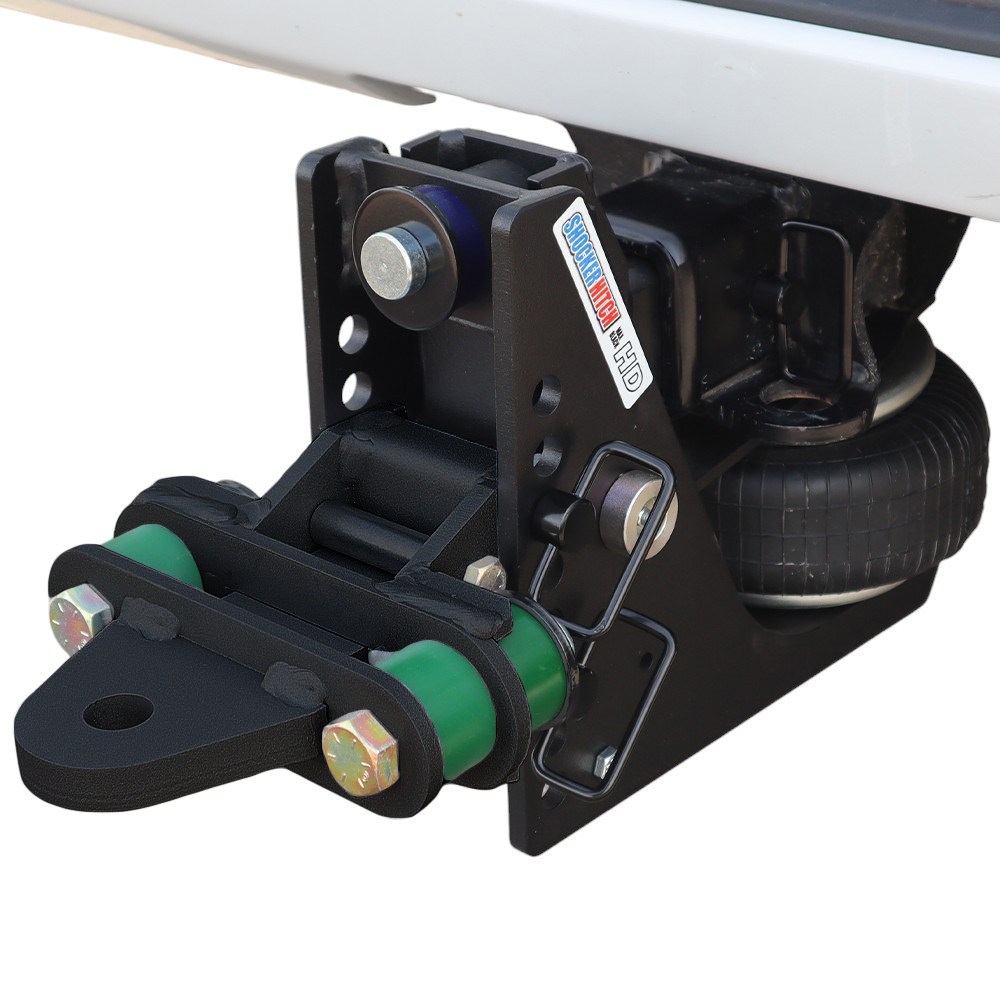

20K Max Air Hitch & Cushioned Drawbar Installed
20K Max Air Hitch & Cushioned Drawbar Installedv

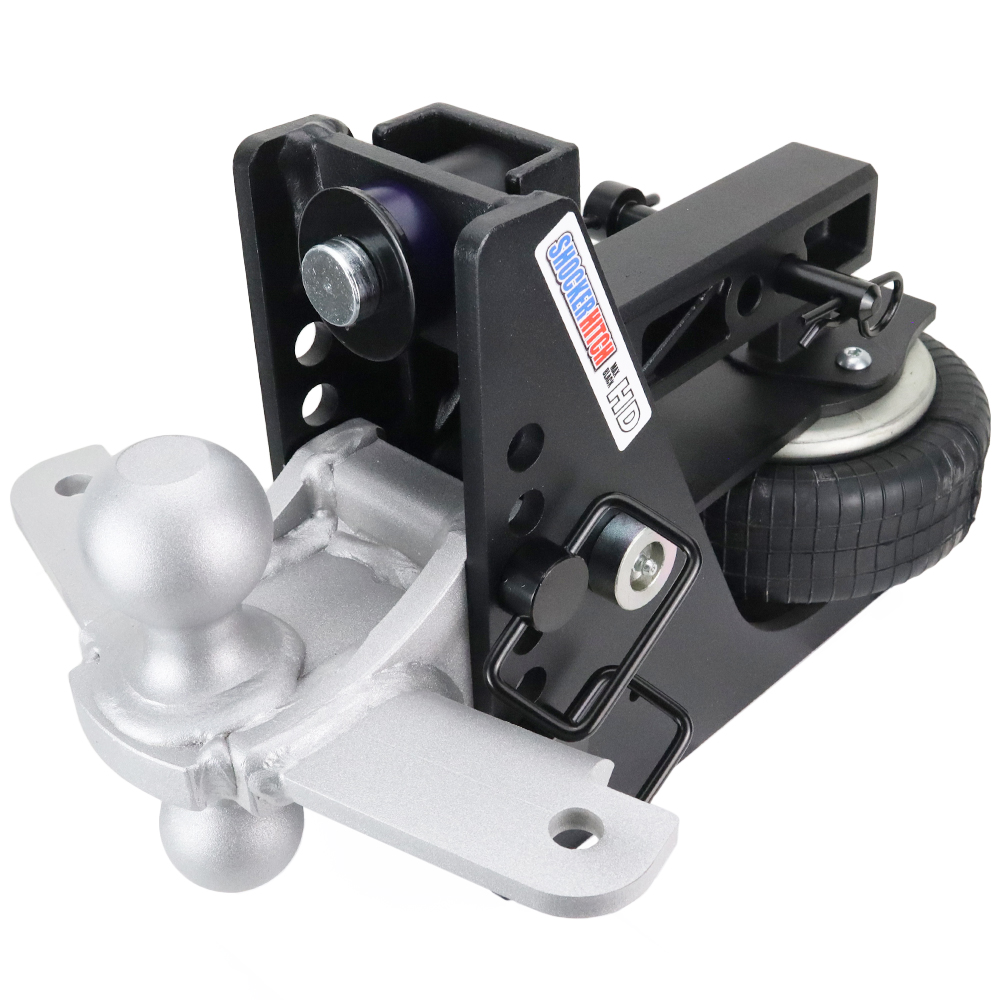

20K HD Max Black Air Hitch & Chrome Sway Tab Combo Ball Installed
20K HD Max Black Air Hitch & Chrome Sway Tab Combo Ball Installed

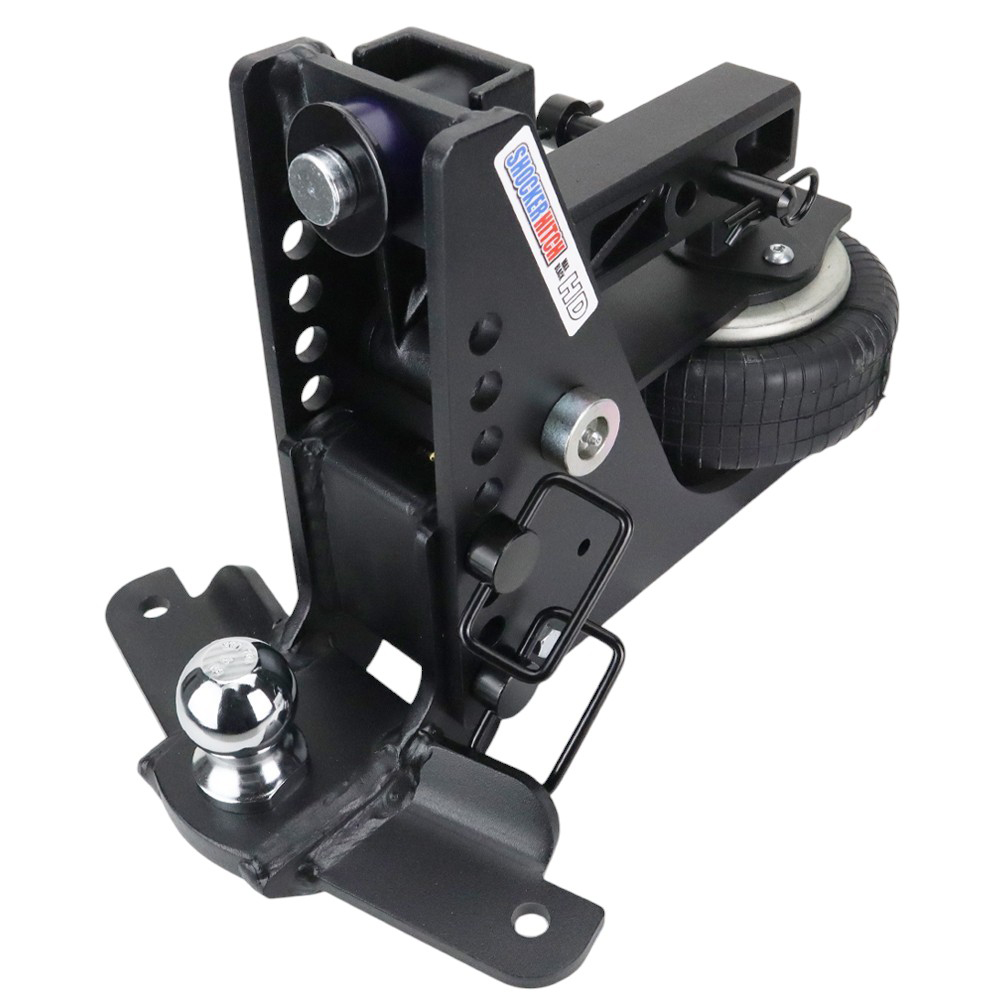

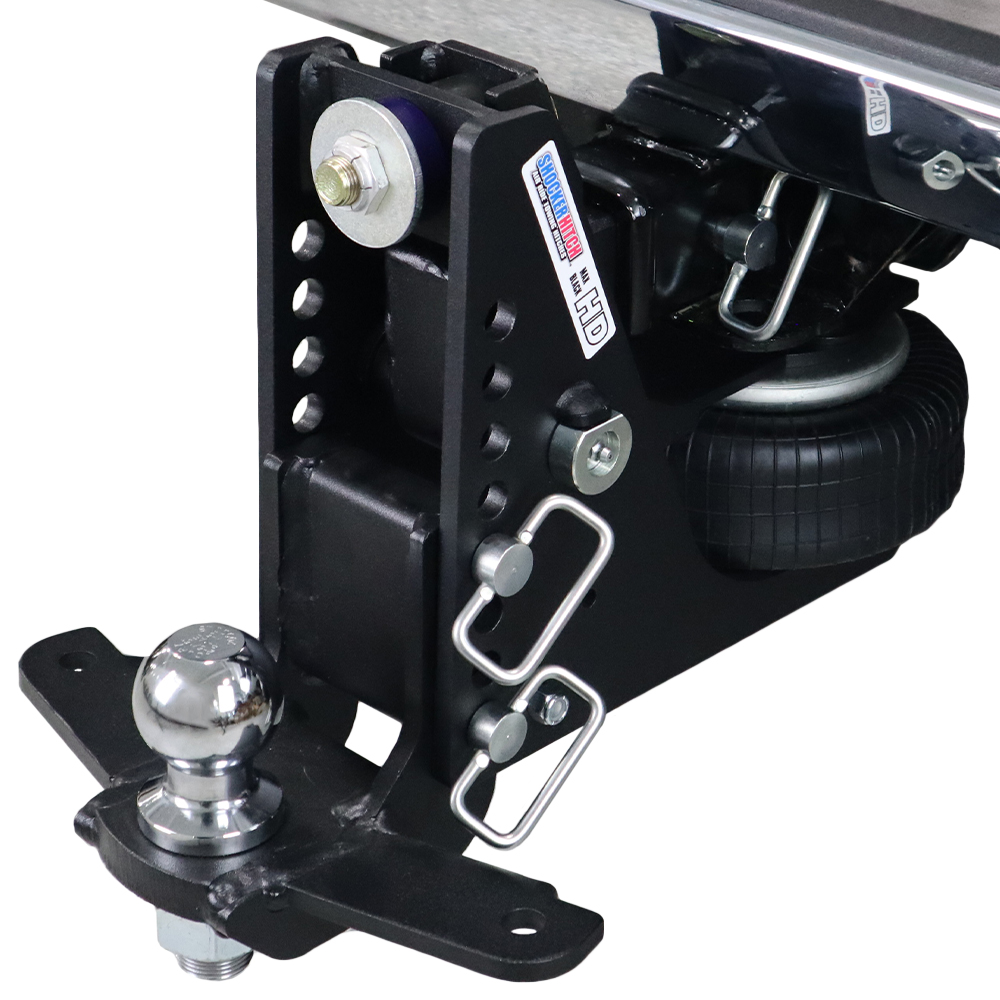

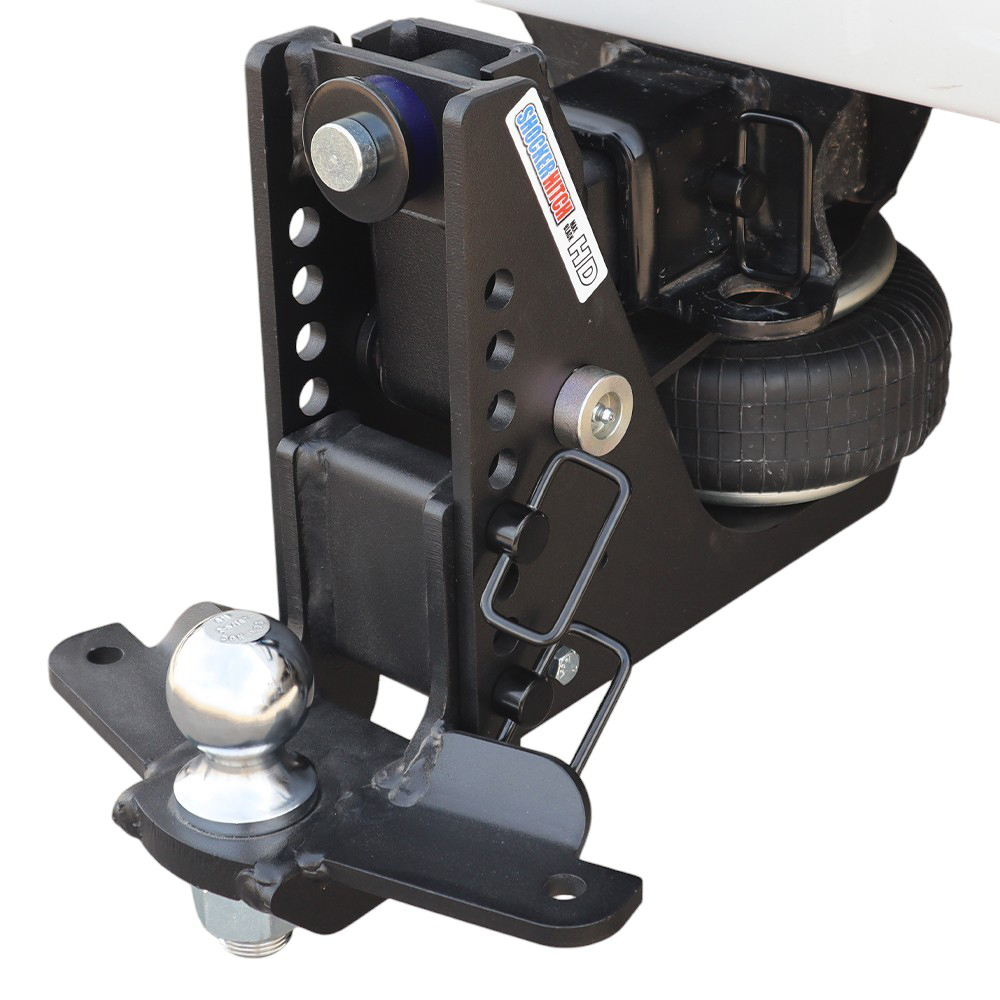

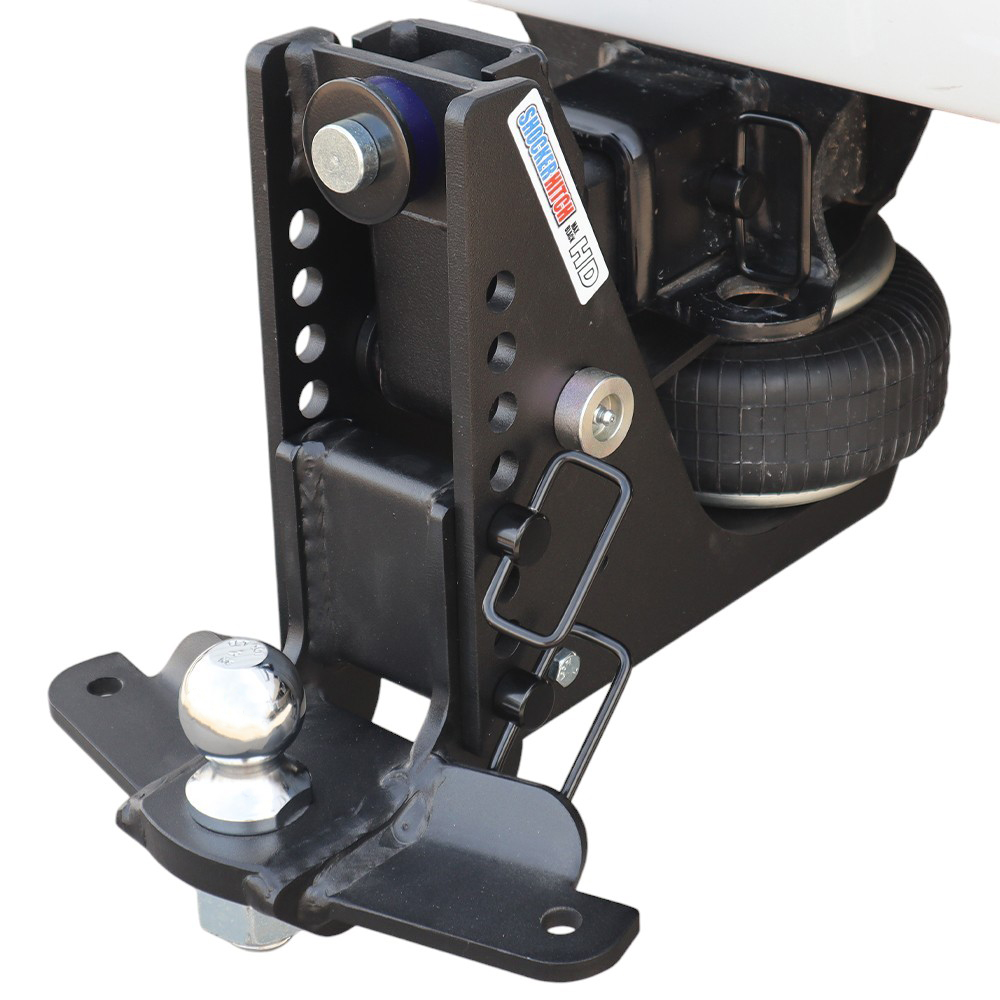

20K HD Max Black Air Hitch & Sway Tab Drop Mount w/ 2-5/16" Ball Installed
20K HD Max Black Air Hitch & Sway Tab Drop Mount w/ 2-5/16" Ball Installed

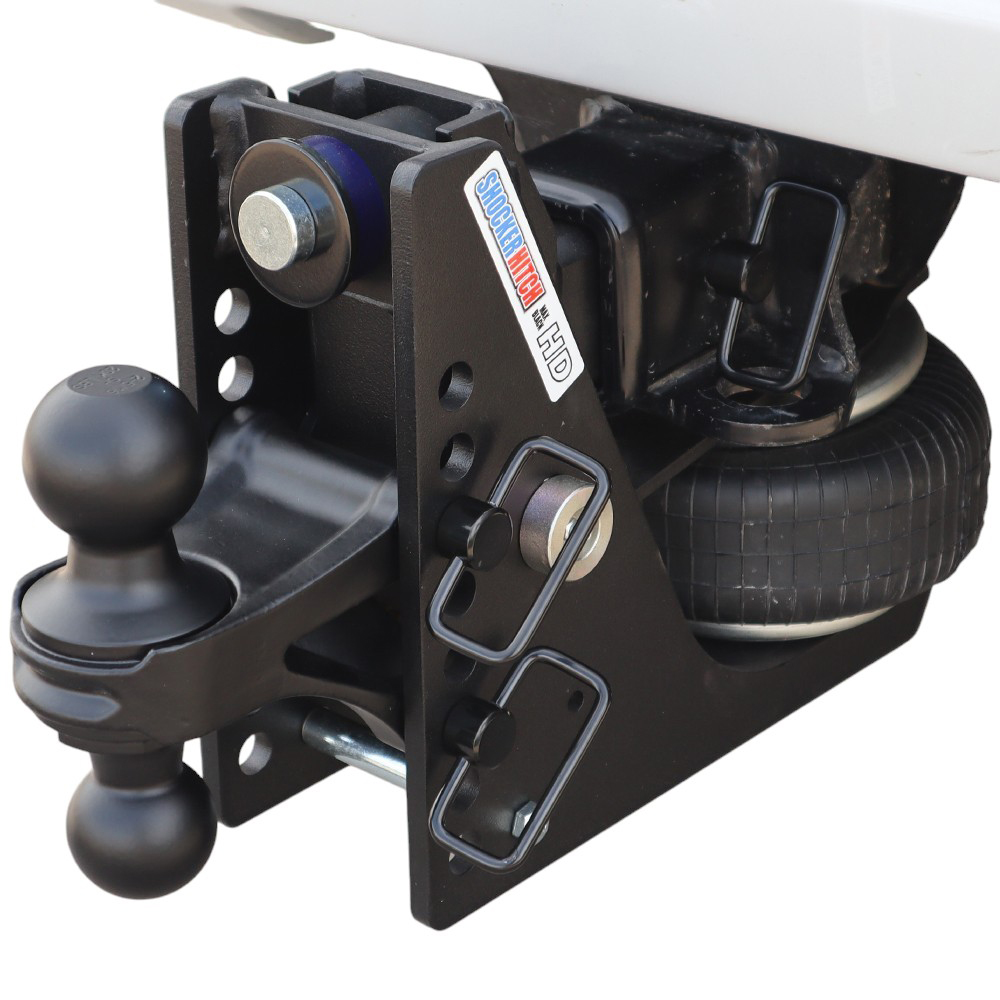

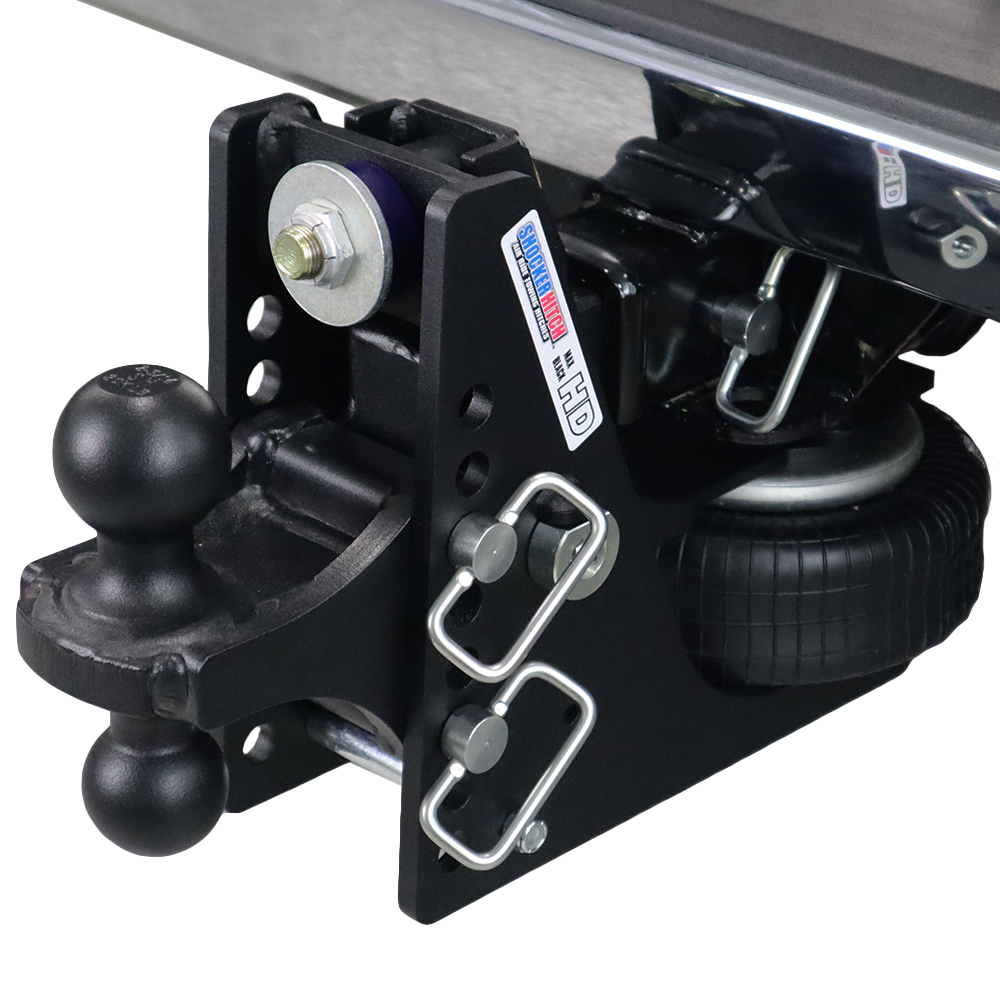

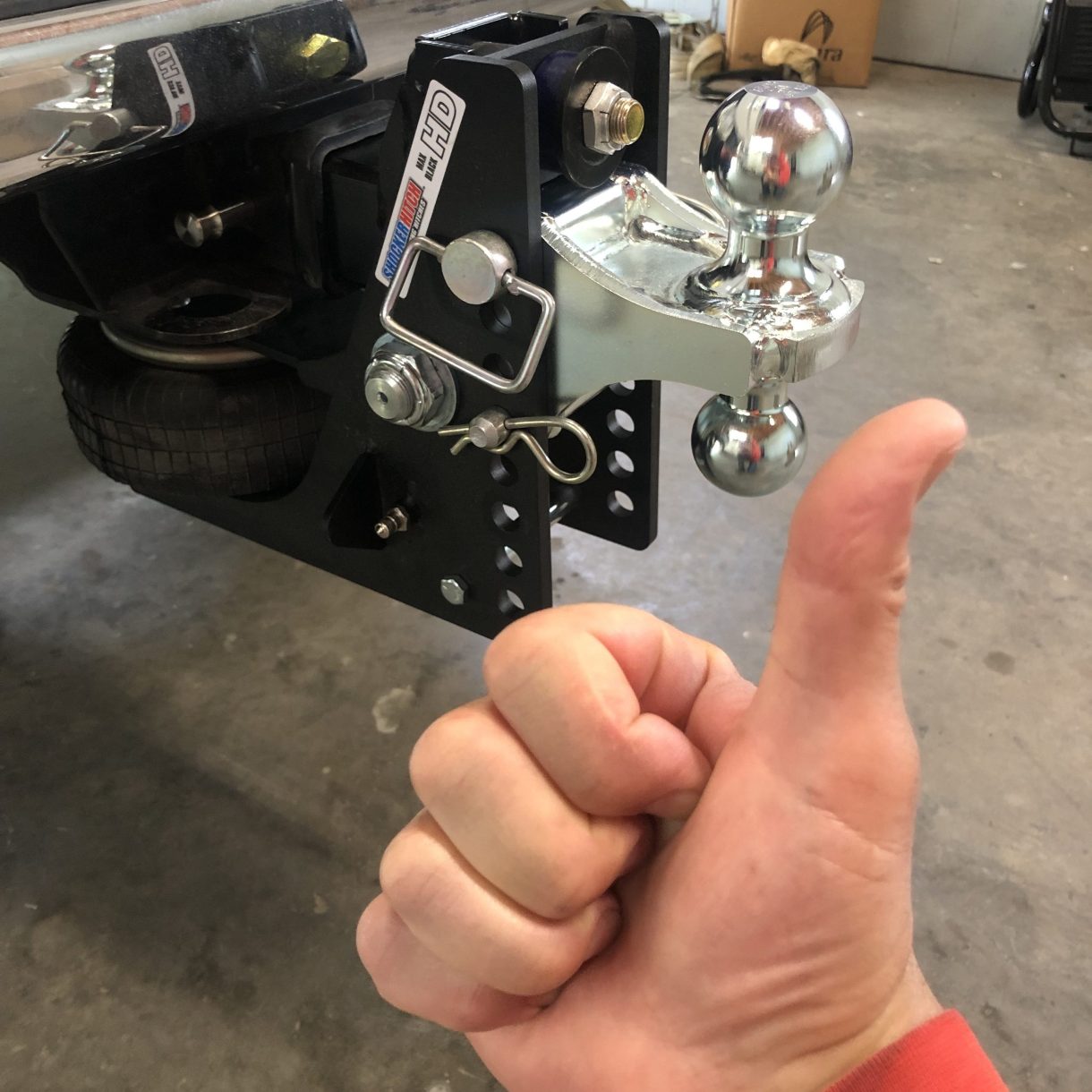

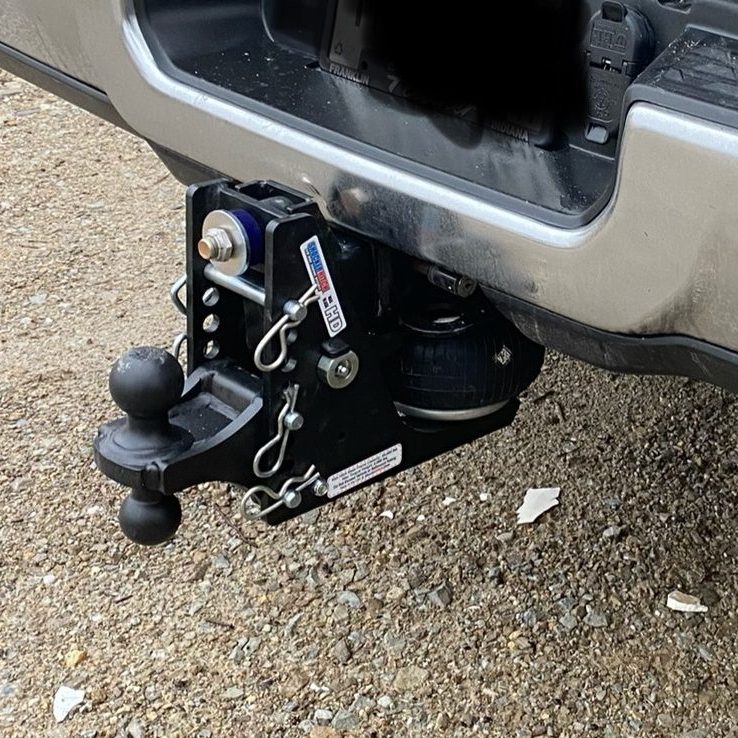

HD Max Black Air Hitch & Black Combo Ball Installed
HD Max Black Air Hitch & Black Combo Ball Installed

Shocker 20K HD Max Air Drop Hitch (Build Your Own)

Rated 4.88 out of 5 based on 17 customer ratings
(17)

CAD$957.60 – CAD$1,307.18CAD$1,056.00 – CAD$1,439.98

Money IconExtra 5% OFF, hurry limited time offer.
Free Ground Shipping*
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/23/26
Usually Ships on or Before Fri 10/23/26
Usually Ships on or Before Fri 10/23/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/23/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Mon 09/14/26
Usually Ships on or Before Fri 10/02/26
Usually Ships on or Before Fri 10/23/26
Install Guide Install Video
Clear

Additional Add-Ons

3-Pack (2 Mount & 1 Receiver Pins)
Shocker Hitch Locking Hitch Pin & 2 Ball Mount Attachment Locking Pins - Fits Base Frame & Receiver
3 Pack (Hitch & 2 Mount Attachment Pin Locks)
CAD$127.20
|
SKU: SH-317-2-318
Shocker Compact Portable Air Compressor with Digital Gauge
Shocker Compact Portable Air Compressor with Digital Gauge
CAD$111.98
|
SKU: SH-5625
OR

  • Videos arrow

    Videos

    Shocker HD Max Black Air Hitch Videos

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    • Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide
      – Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
      – Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
      – Clevis Mount: 3.5″ Drop to 7.5″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.
    • Impact Cushion Hitch Mount Drop & Rise + Rating Guide:
      – Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 0″ Rise to 7.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Pintle Hook: 4″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
      – Pintle & Ball: 4″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 4″ Rise to 4″ Drop | 20,000 lbs.
      – Clevis Mount: 1.5″ Rise to 5.5″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.
    • XR Series 8 Hole Hitch Mount Drop & Rise + Rating Guide: (Add 1.5″ if using 10-Hole Frame)
      – Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 0″ Rise to 7-1/2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Pintle Hook: 6″ Rise to 6″ Drop | 10-Ton 20,000 lbs.
      – Pintle & Ball: 6″ Rise to 6″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 4″ Rise to 4″ Drop | 20,000 lbs.
      – Clevis Mount: 1-1/2″ Rise to 6-1/2″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above

    Safety Notice: Towing capacity is limited by the lowest rated component.

    Check out our guide to find out how much drop or rise you need.

  • Install arrow

    Install

    Shocker HD Air Hitch Ball Mount Installation Instructions

    The Shocker HD Air Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

    Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag.
    Once the bag has been compressed, you can install the unit into the receiver tube. Next install hitch pin.

    Shocker HD Air Hitch Install Video

    To Set Air: Hook up trailer using properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to slightly compress top bushing or until bump stop clearance is approximately 1/8″.

    Shocker HD Air Hitch PSI Air Pressure Setting Guide Video

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
    • Spacer block included and may be required when using 2″ shank (see install manual below)
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

    Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Shocker HD Air Receiver Hitch Install Instructions

    Note: Always use a good hitch ball with the proper recommended tow weight.

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 587-897-4625 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Questions & Answers (13) arrow

    Questions and answers of the customers

      I have a 6 inch lifted f250 does this fit
    1. 0 votes
      Q I have a 6 inch lifted f250 does this fit answer now
      A

      Our hitches fit most receivers, you will need to check how much drop you need. To find that out, you can check out our drop guide here >> What Size Drop Ball Mount Do I Need?
      2. Distance from the pin to the center of the ball on the shocker 20k hitch
    2. 0 votes
      Q Distance from the pin to the center of the ball on the shocker 20k hitch answer now
      A The distance from the pin to the center of the combo ball is 10 inches. This may vary per mount.
      3. How strong does the portable air compressor need to be in order to fill back to max PSI?
    3. 0 votes
      Q How strong does the portable air compressor need to be in order to fill back to max PSI? answer now
      A Most portable air compressors will be adequate to fill the bag, as there is not much volume, even a hand bicycle pump will air up the bag.
      4. What is the cushioned drawbar used for? Can you mount a ball onto it? Or would I just get a normal ball mount?
    4. 0 votes
      Q What is the cushioned drawbar used for? Can you mount a ball onto it? Or would I just get a norma...... Read more answer now
      A The cushion draw bar would be used for 4 wheel trailers with no tongue weight, for example, anhydrous tanks, bale wagons etc. they are not designed for tongue weight.
      5. Do you ship to Australia or have a dealer here
    5. 0 votes
      Q Do you ship to Australia or have a dealer here answer now
      A

      Yes we do have an Shocker Hitch Dealer in Australia

      Val mobile: 0418 786 952
      Roger mobile: 0457 814 997


      6. Is the 20k HD hitches safe for GMC’s PRO tailgate to fold down into a step, or will it hit?
    6. 0 votes
      Q Is the 20k HD hitches safe for GMC’s PRO tailgate to fold down into a step, or will it hit? answer now
      A

      Our Shocker Hitch frames are too tall for the step section of the multi-pro tailgate and will make contact.
      7. I have a pickup with a flat bed and a built in hitch. There is about 3 inches of metal under the hitch. Will the hd max adjust to accommodate for this?
    7. 0 votes
      Q I have a pickup with a flat bed and a built in hitch. There is about 3 inches of metal under the ...... Read more answer now
      A

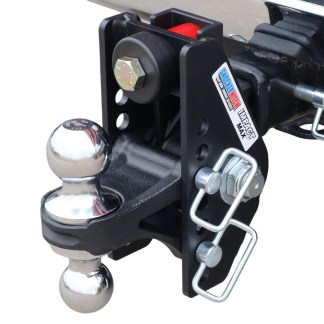

      Unfortunately, you may need to modify that section of your hitch for our airbag to slide underneath the receiver. You could also check out our Shocker 20K Impact Max with the link here: https://shockerhitches.ca/product/impact-max/
      8. I have a 15860 Curt hitch on a 2019 Silverado 3500hd drw. I have seen some issues with safety chains holes being partially covered by the airbag. Will this be a concern for me ?
    8. 0 votes
      Q I have a 15860 Curt hitch on a 2019 Silverado 3500hd drw. I have seen some issues with safety cha...... Read more answer now
      A

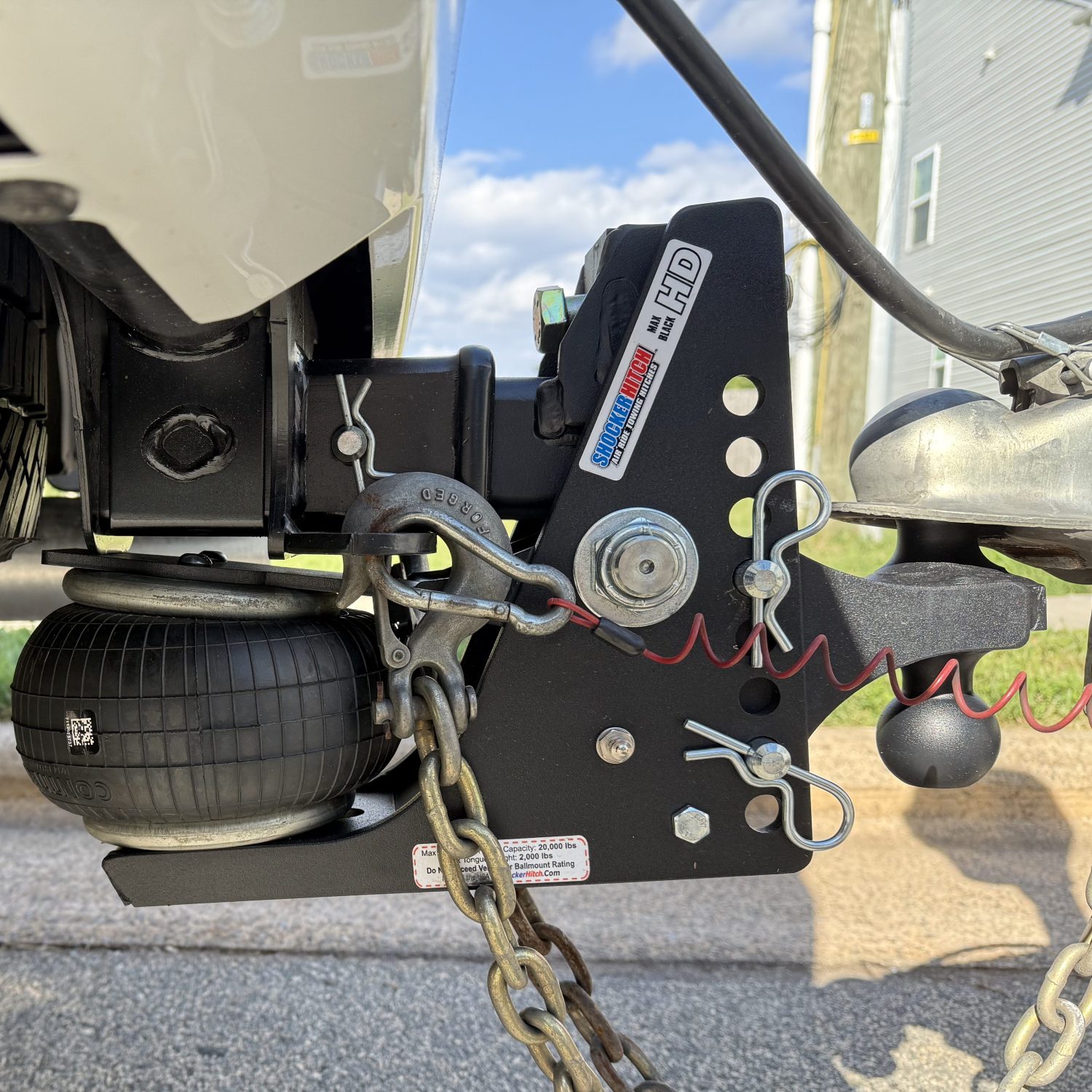

      We have not had any issues with safety chains being compatible with our hitches at all. Sometimes the safety chains can come a little close to the airbag but it would not affect the hitch at all.
      9. I have a 2020 Silverado truck with a 2-1/2 receiver and tow a 30 ft. 7500 pound trailer with a 400 pound tongue weight. What Shocker air hitch with the 2-5/16" & 2" ball do you recommend?
    9. 0 votes
      Q I have a 2020 Silverado truck with a 2-1/2 receiver and tow a 30 ft. 7500 pound trailer with a 40...... Read more answer now
      A

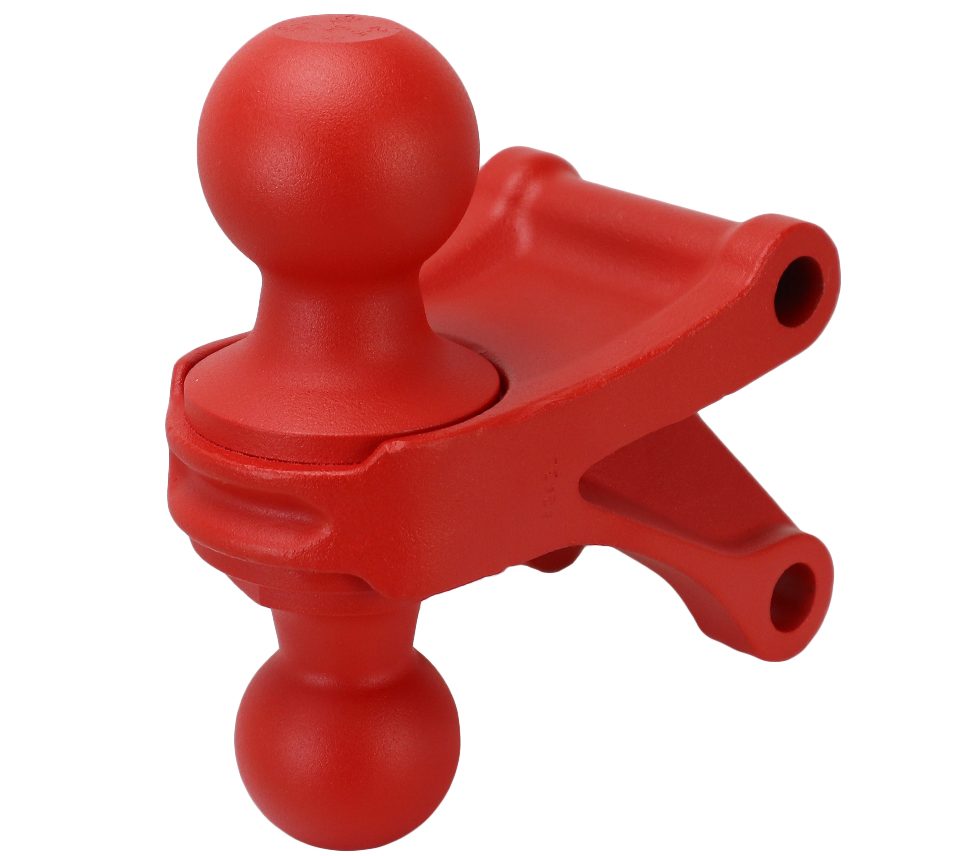

      With the trailer that you are towing, you are able to use either our 12k air hitch or our HD 20k. Both of them are offered with a combo ball mount that offers 1/2" to 4-1/2" of drop. Most people like going with the HD due to the versatility of being able to use it on light trailers as well by using less air. So either hitch will work great for you its just a matter of what capacity you would like to go with.
      10. Will black shocker 2” work on 2023 Yukon
    10. 0 votes
      Q Will black shocker 2” work on 2023 Yukon answer now
      A

      Would you be able to send a few pictures of the receiver on your Yukon to info@shockerhitches.ca. We can take a look and see if our hitch is compatible with your model.
      11. Can I add my Rock Tamer Mud flap system to the back of shocker hitch HD 20K
    11. 0 votes
      Q Can I add my Rock Tamer Mud flap system to the back of shocker hitch HD 20K answer now
      A Hello, With the Rock Tamer style that slide on the shank of the hitch can cause binding as it can get pinched between the air bag and bottom of the receiver. We do offer our Quick Clip under bumper tow flaps that work will all of our bumper hitches. A link for the Quick Clips is below. If you have any other questions feel free to contact us at 587-897-4625. Thanks https://shockerhitches.ca/product/under-bumper-tow-mud-flaps/
      12. What is the difference between the Shocker HD (red) and Max Black with combo ball? Also, why do I see some with 6,7, or 8 side holes? Thanks
    12. 0 votes
      Q What is the difference between the Shocker HD (red) and Max Black with combo ball? Also, why do I...... Read more answer now
      A

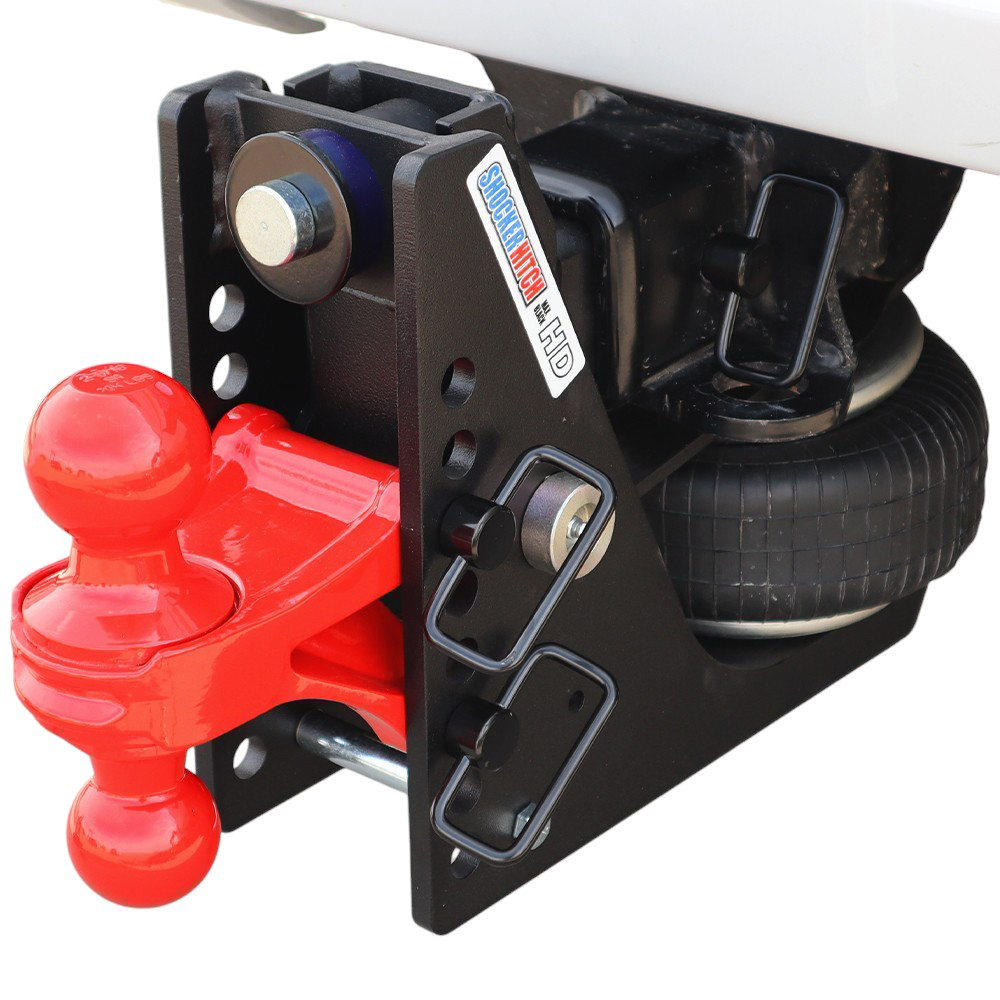

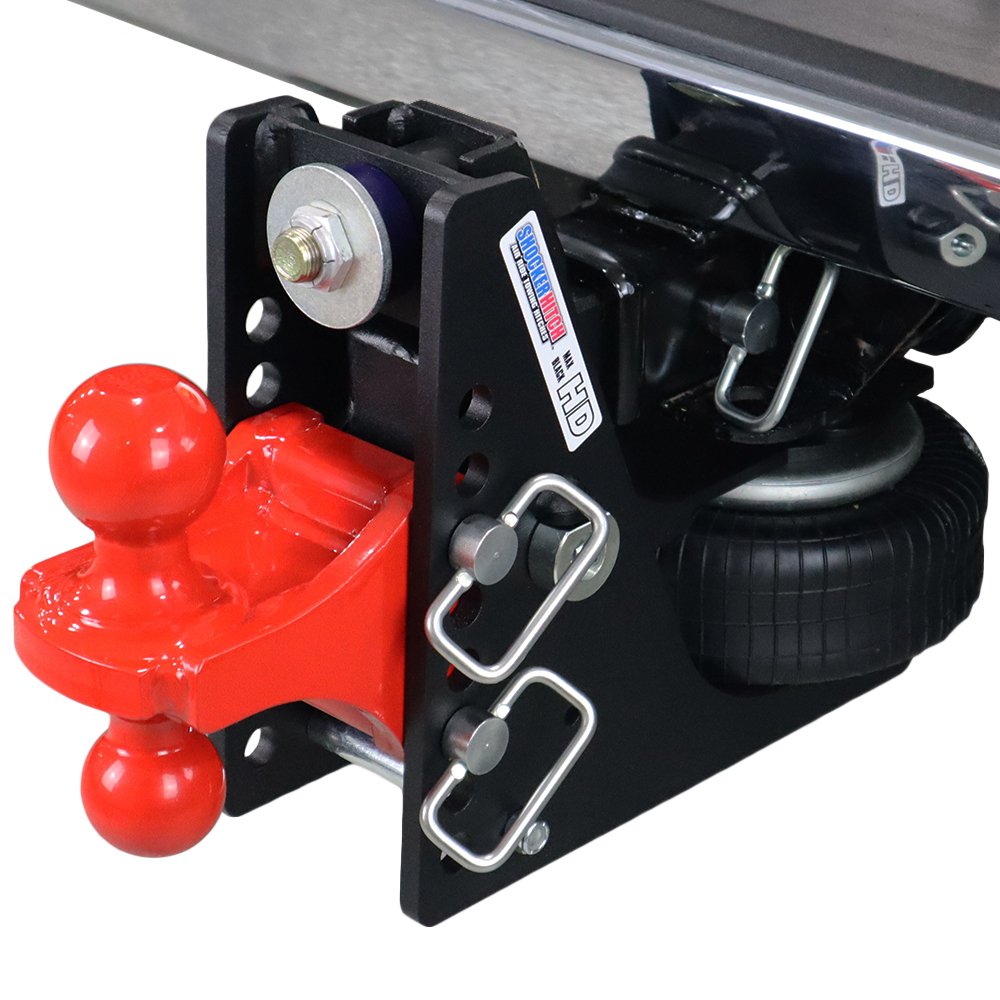

      The only difference between our Max Black HD Air and The Red HD Air hitch is going to be the color. We use an impact-resistant textured black powder coat on our Max Black hitch that costs a little more than the red finish. Some of our older Shocker HD (red) frames did have 7 holes. However, all of our HD frames now have 8 adjustment holes to allow for more height adjustment.
      A The difference between the Shocker HD and Max Black is the Shocker HD has a standard red powder coating and the Max Black has an abrasion resistant black coating. Also the HD and Max Black all have 8 holes in the base frame.
      13. 2015 mb gl350 bluetec factory towing package.Trailer is 5500 lbs with tongue weight 550 lbs.Which of your do you recommend?
    13. 0 votes
      Q 2015 mb gl350 bluetec factory towing package.Trailer is 5500 lbs with tongue weight 550 lbs.Which...... Read more answer now
      A

      Could you send us photos of the receiver hitch and the current setup you have to orders@shockerhitches.ca?



You may also like…

  • Quick Latch Towing Mud Flaps

    Shocker Hitch Quick Latch Towing Mud Flaps

    From:  CAD$703.98
    Rated 0 out of 5
  • 3-Pack (2 Mount & 1 Receiver Pins)

    Shocker Receiver Hitch Locking Hitch Pins

    From:  CAD$45.60
    Rated 4.85 out of 5
  • All Shocker Receiver Hitch Attachments and Mounts

    Shocker Receiver Hitch Attachments

    From:  CAD$103.98
    Rated 5.00 out of 5
  • Shocker Compact Portable Air Compressor with Digital Gauge

    Shocker Compact Portable Air Compressor with Digital Gauge

    From:  CAD$111.98
    Rated 0 out of 5

Related products

  • Extra 8% offHD Max Black Air Hitch & Farm Mount Kit - Chrome Combo Ball, Pintle, Drawbar & Clevis

    Shocker 20K HD Max Air Hitch Farm Mount Towing Kit

    From:  CAD$1,604.42CAD$1,855.94
    Rated 0 out of 5
  • 20K HD Max Black Air Hitch & Drawbar Installed

    Shocker 20K HD Max Air Drawbar Hitch

    From:  CAD$1,151.98
    Rated 0 out of 5
  • 20K HD Max Black Air Hitch & Sway Tab Drop Mount w/ 2" Ball Installed

    Shocker 20K HD Max Air Sway Control Drop Hitch

    From:  CAD$1,247.98
    Rated 0 out of 5
