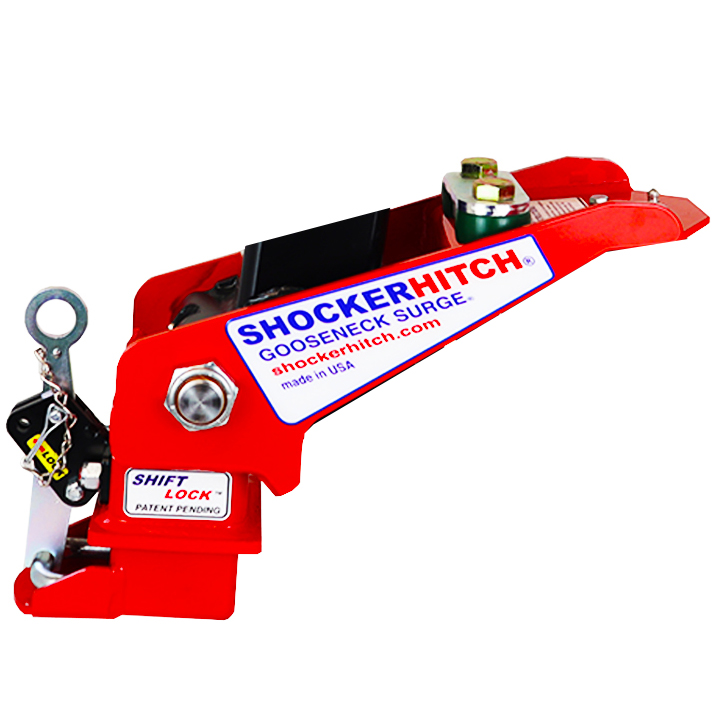

Goose Air Red Outer Frame Only with Regular Shift Lock Coupler
Goose Air Red Outer Frame Only with Regular Shift Lock Coupler
Goose Air Red Outer Frame Only with Regular Shift Lock Coupler
Goose Air Red Outer Frame Only with Regular Shift Lock Coupler

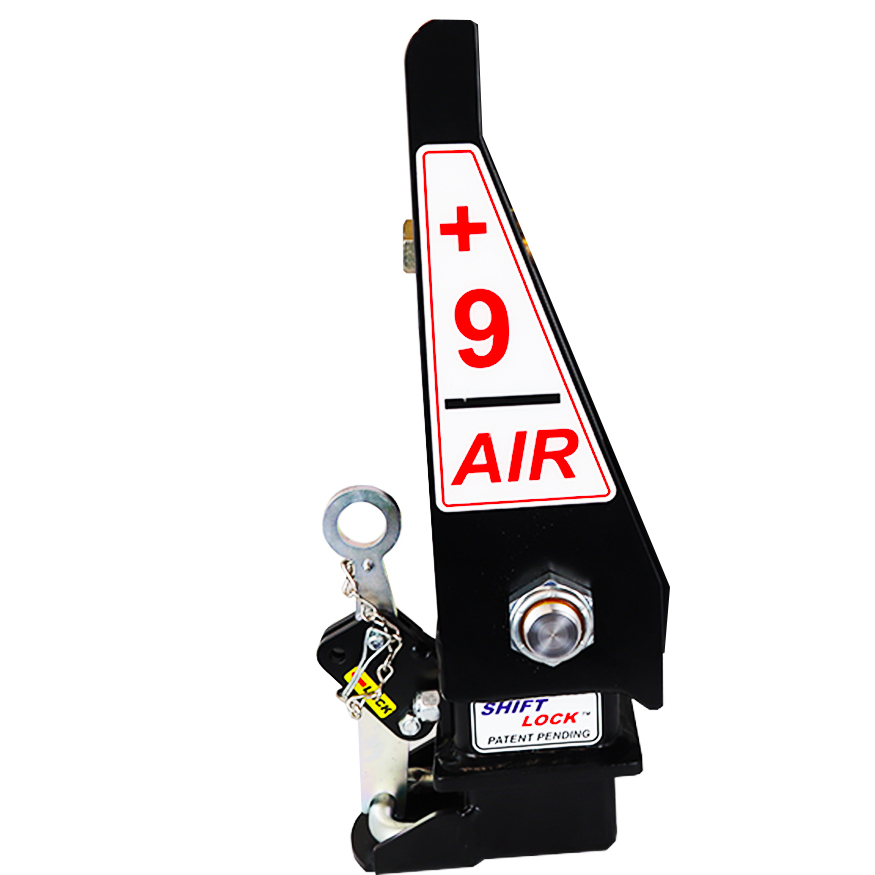

Goose Air Outer Frame Only with 9" Forward Shift Lock Coupler
Goose Air Outer Frame Only with 9" Forward Shift Lock Coupler

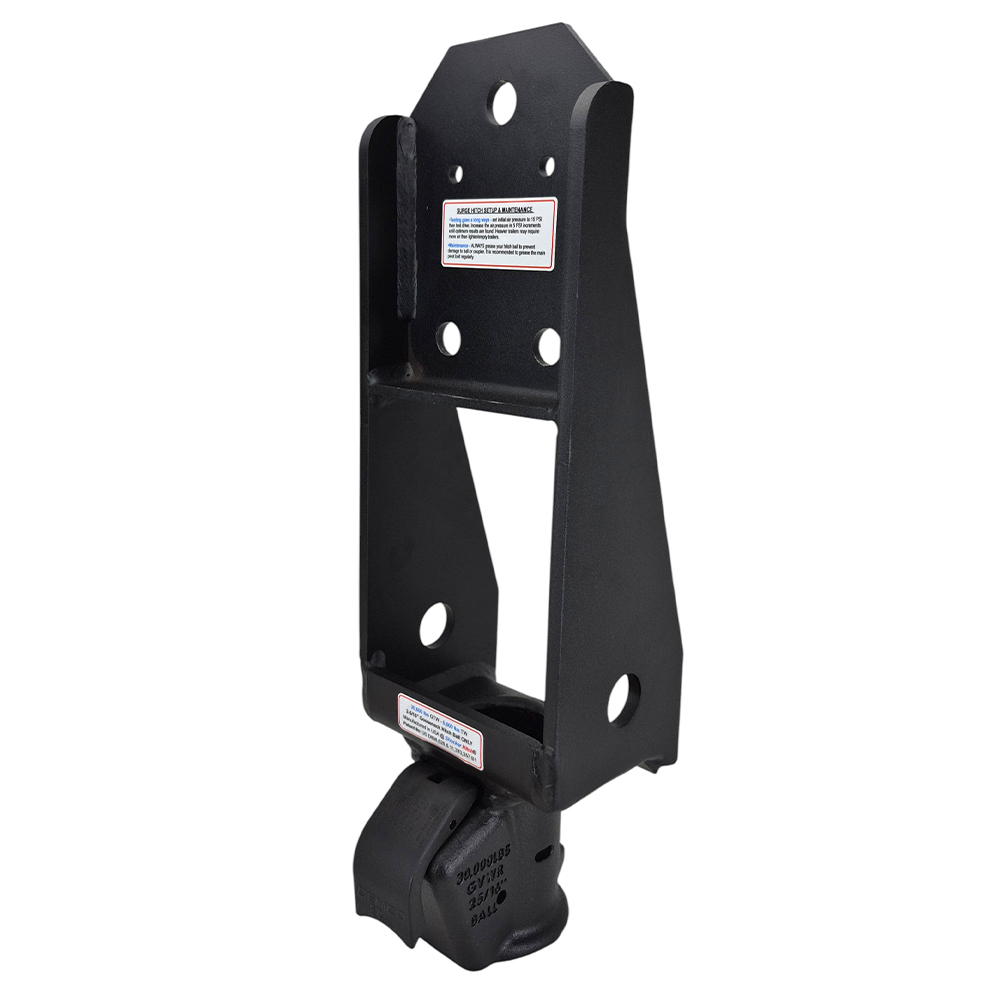

Replacement Gooseneck Surge Hitch Main Frame

Rated 0 out of 5
(0)

CAD$1,125.00 – CAD$1,275.00CAD$1,200.00 – CAD$1,350.00

Free Ground Shipping*
Usually Ships on or Before Thu 02/06/25
Usually Ships on or Before Thu 02/06/25
Usually Ships on or Before Thu 02/06/25
Usually Ships on or Before Thu 01/16/25
Usually Ships on or Before Thu 01/16/25
Usually Ships on or Before Thu 01/16/25
Install Guide Install Video
Clear
OR

  • Videos arrow

    Videos

    Shocker Gooseneck Surge Air Hitch & Coupler Videos

  • Install arrow

    Install

    Shocker Gooseneck Surge Air Hitch & Coupler Installation

    When used properly the Shocker Gooseneck surge air hitch will make noticeable improvements in your gooseneck trailer towing quality. Giving both truck and trailer a smoother ride with less trailer fatigue and breakage. View the installation and air pressure setting videos below and view the Shocker Gooseneck Air Hitch & Coupler Installation Instructions.

    Install a Shocker Gooseneck Air Hitch & Coupler in Minutes

    How to Air Up Gooseneck Surge Air Coupler?

    Gooseneck Surge Air Pressure:

    • This is a LOW-PRESSURE hitch, that works by tow resistance.
    • Set air pressure at approx. 15 psi, then test drive.
    • Increase pressure in 5 psi increments until optimum results are found.
    • Typical air pressure range is 15 – 25 psi.

    Note: When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.

    Maximum Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Download Gooseneck Surge Installation Manual

    Maximum weights for Shocker Surge: 30,000 lbs GTW & 7,000 lbs Tongue Weight for Patented 30,000 lbs Shift Lock™ coupler for 2-5/16″ gooseneck ball (Offset 2-5/16″ coupler tongue weight is 6,000 lbs). 40,000 lbs GTW & 7,000 lbs Tongue Weight for Patented 40,000 lbs Shift Lock Coupler for 3″ gooseneck ball. For the QuickAir 5th To Gooseneck Air with Shift Lock™ coupler for 2-5/16″ gooseneck ball  it is 24,000 lbs GTW & 6,000 lbs Tongue Weight. Patent #’s 11,370,257 B1 & D898,628.

    Safety Notice: The Shocker Hitch is a heavy-duty unit, however, it is imperative that any weight capacity ratings are not exceeded on the ball that is mounted on your tow vehicle, or the Shocker Hitch. V-19 rated. Do not exceed G.V.W.R. of ball being used.



    Installation

    1. Take a vertical measurement from the bottom of the ball coupler tube to the bottom of the trailer frame sleeve. This dimension will be used to set the Shocker Gooseneck Surge Trailer Hitch
    2. Remove pins or loosen locking bolts on the trailer frame sleeve, and remove the existing coupler tube.
    3. Slide Gooseneck Surge Shocker Hitch insert tube inside the trailer frame sleeve with the air bag toward the rear of trailer.
    4. Hold or support Shocker at vertical measurement noted in Step #1. This should duplicate the previous ride height of the trailer. Shocker hitch must be properly aligned, (parallel with trailer), to maximize its benefits.
      Note: If your trailer coupler tube is equipped with a pin or pins, the correct pin location must be marked in the Shocker hitch insert tube and have a qualified machine shop drill / machine the pin holes.
    5. Torque locking bolts to your trailer manufacturers’ recommended specifications. A spacer kit is available for some applications.
    6. Lubricate: Oil the coupler shaft, grease coupling ball socket, and grease the hitch ball to REDUCE WEAR AND IMPROVE SHOCKER ACTION. Main pivot grease zerk should be greased periodically for maximum bushing life. ( Simply, you cannot over-grease it! )
    7. Hook up the trailer by simply lowering the coupler onto the ball. (Handle will snap open & shut automatically). To release trailer: Pull handle up and hold while raising trailer.


    We’re here to help. Contact Us

    Installation Issues

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 587-897-4625 or use our contact us form. You can also look up the item’s product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 587-897-4625 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Questions & Answers arrow

    Questions and answers of the customers

    There are no questions yet. Be the first to ask a question about this product.
