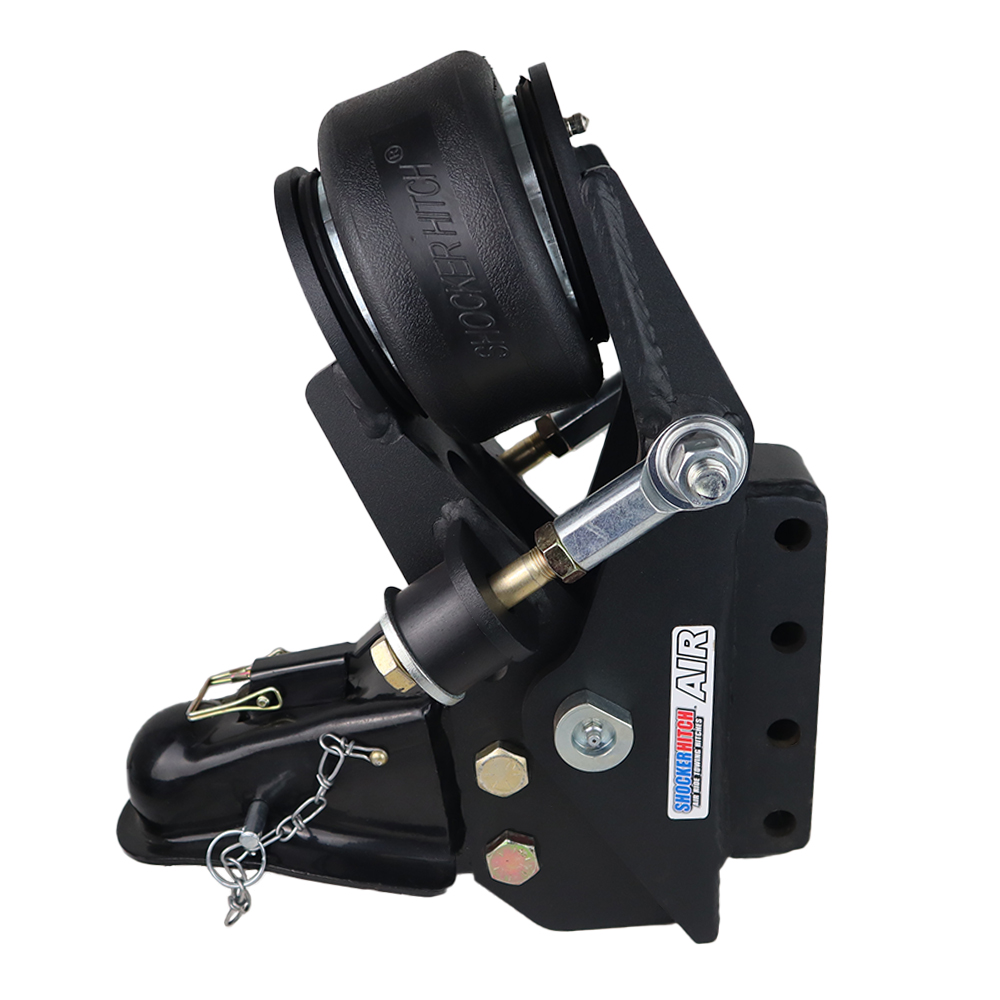

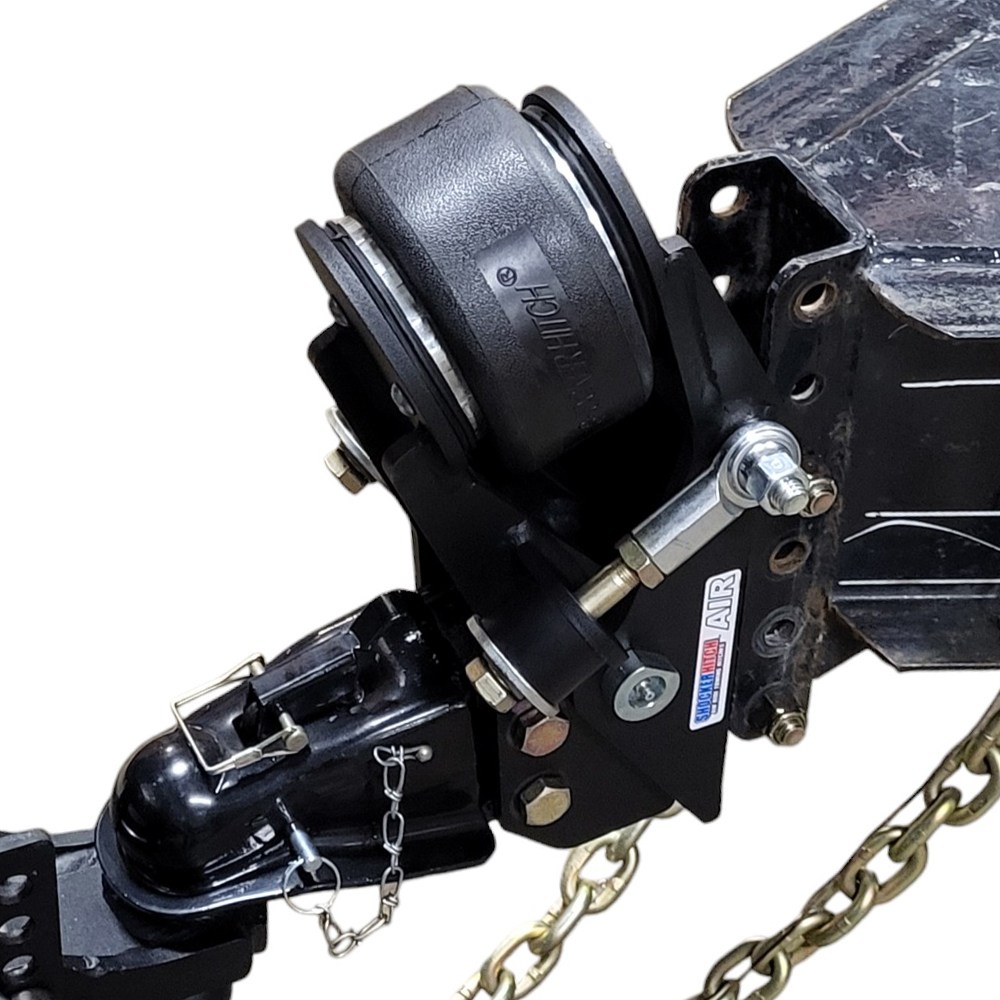

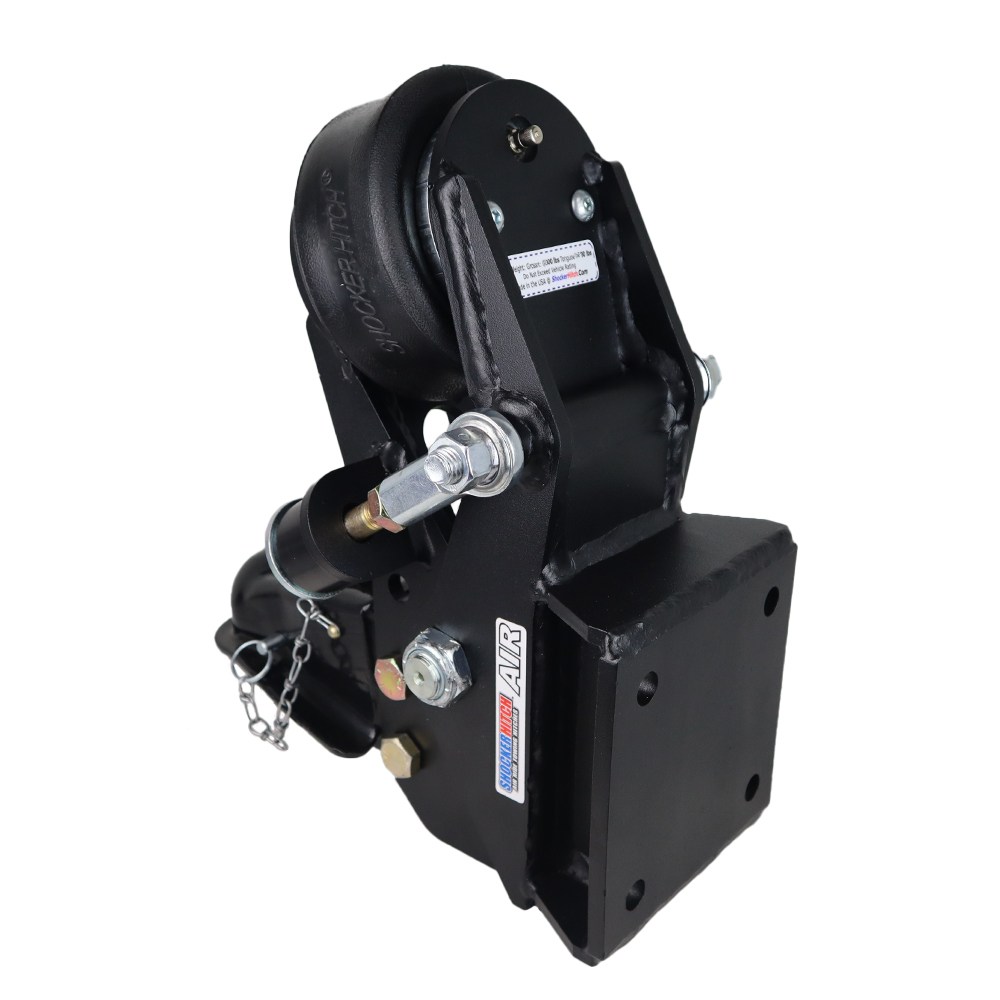

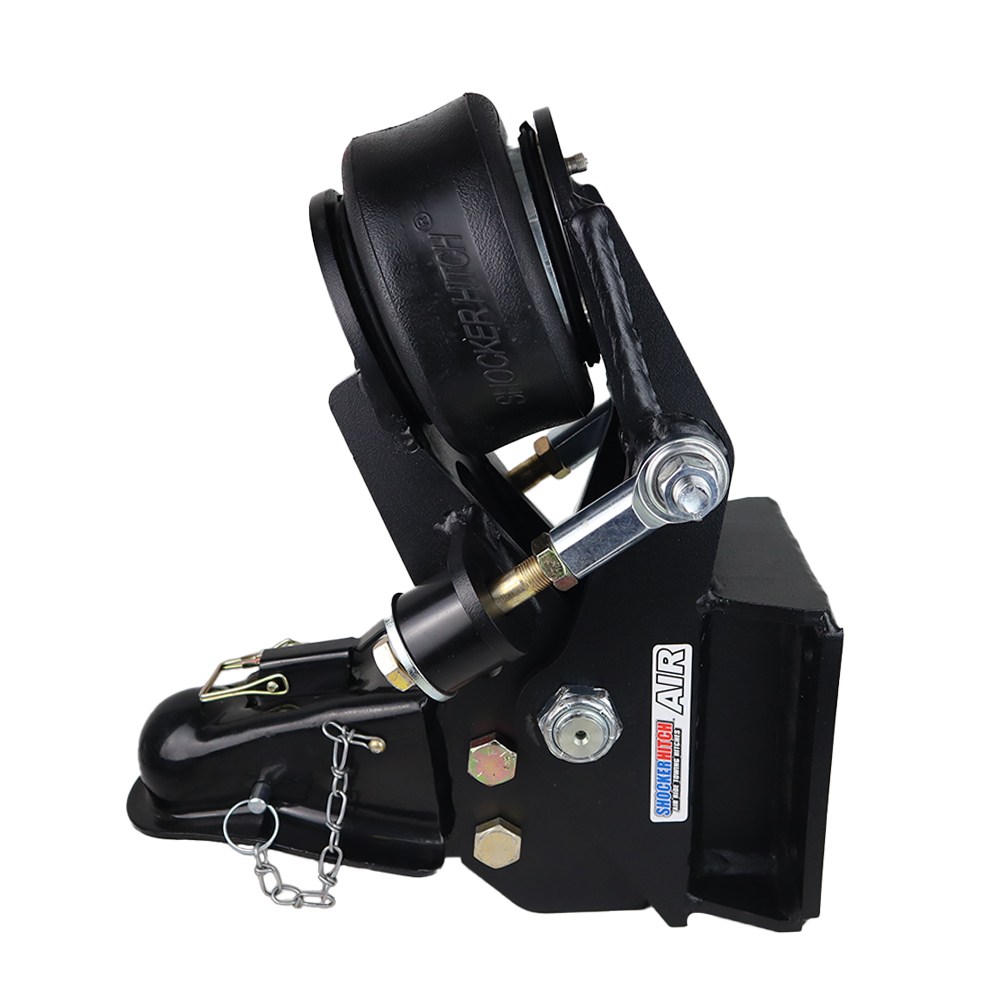

Shocker 14K Air Trailer Tongue Mount with Wallace 2-5/16″ Ball Coupler

• 5Bolt-on Air Ride: Bolt-on to vertical channel on your truck. Shocker Air is designed with a built-in 20,000 lbs tow-rated air ride system for a smoother towing experience. Improves your ride, and reduces wear & tear on pickup & trailer.
• 14,000 lbs GTW & 1,400 lbs Tongue Weight:  Plenty of capacity for towing with 2-5/16″ hitch balls.

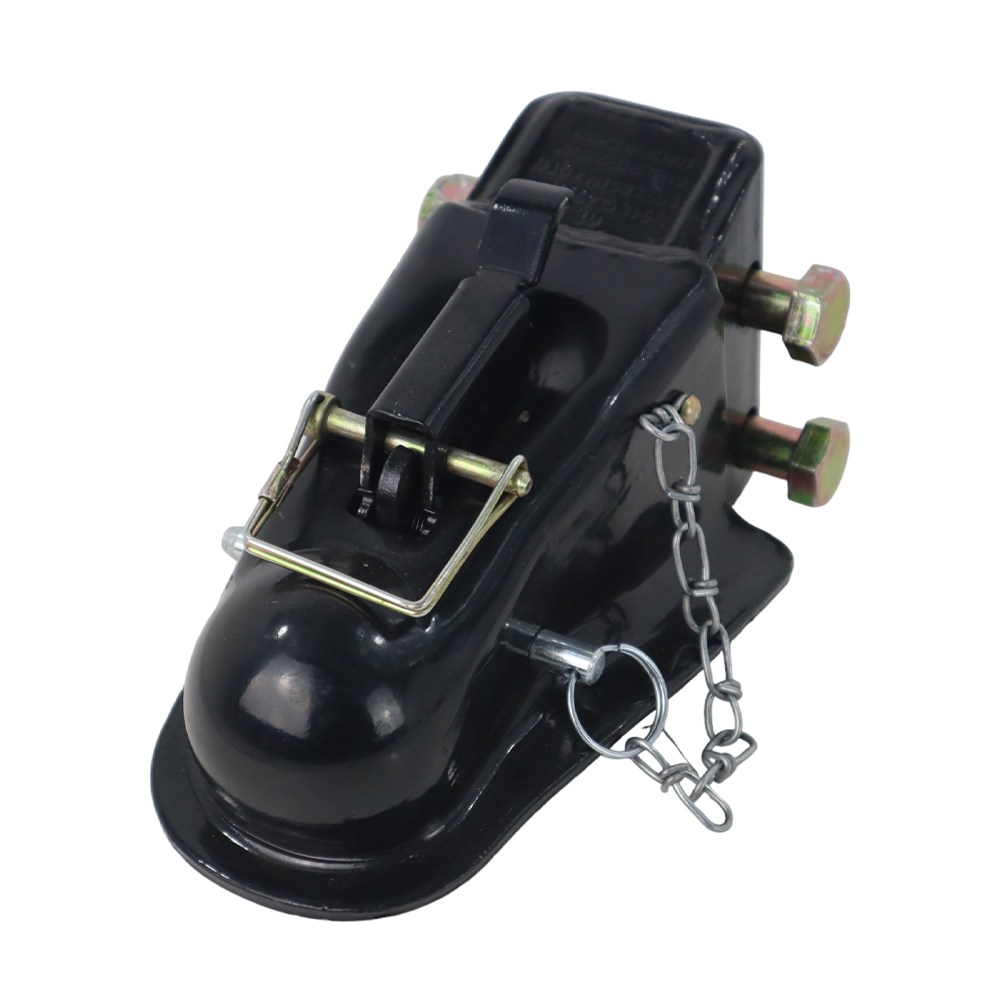

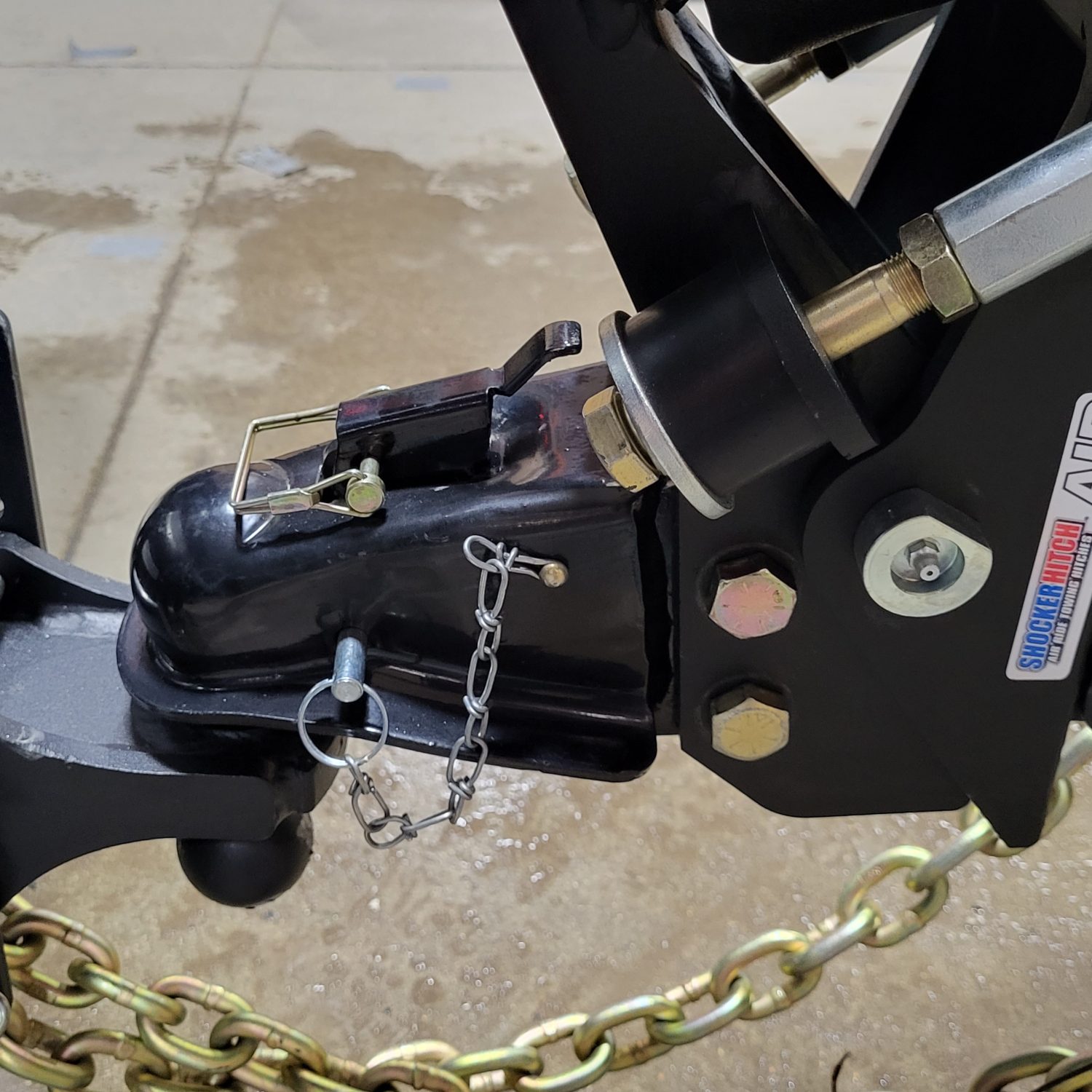

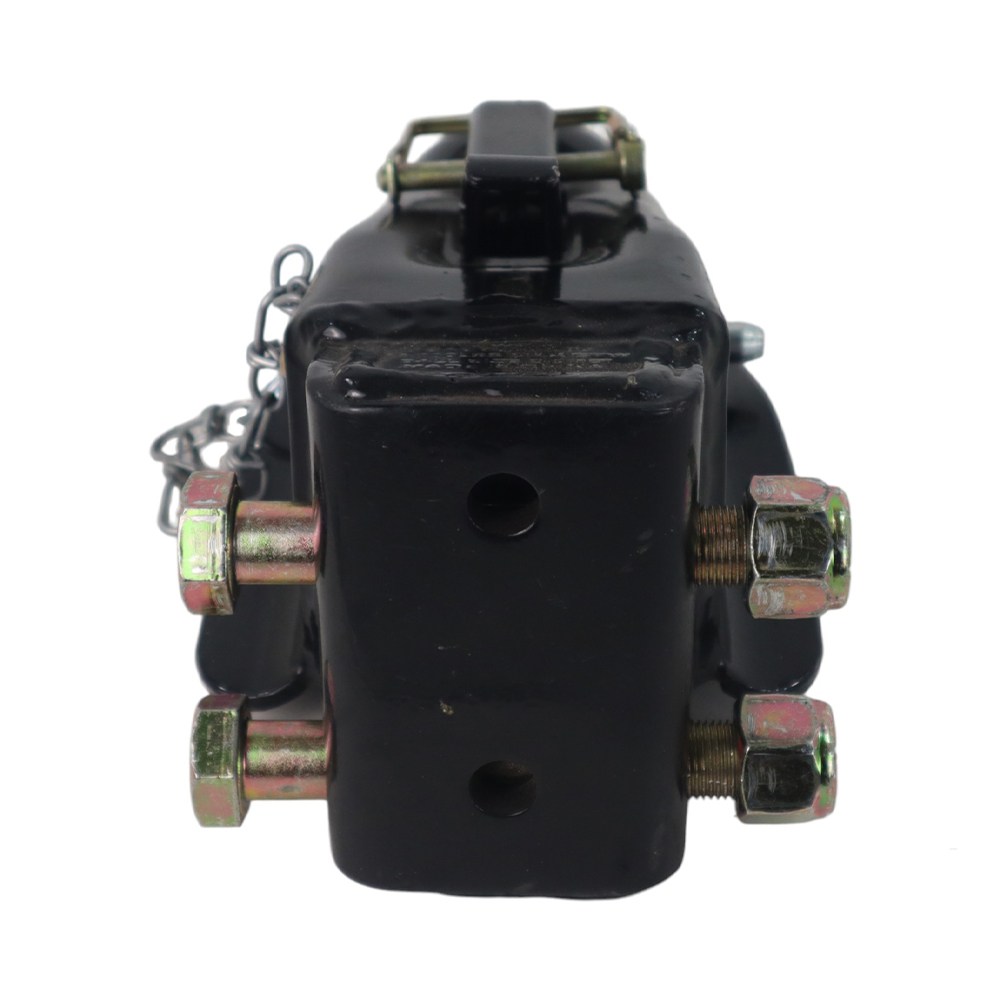

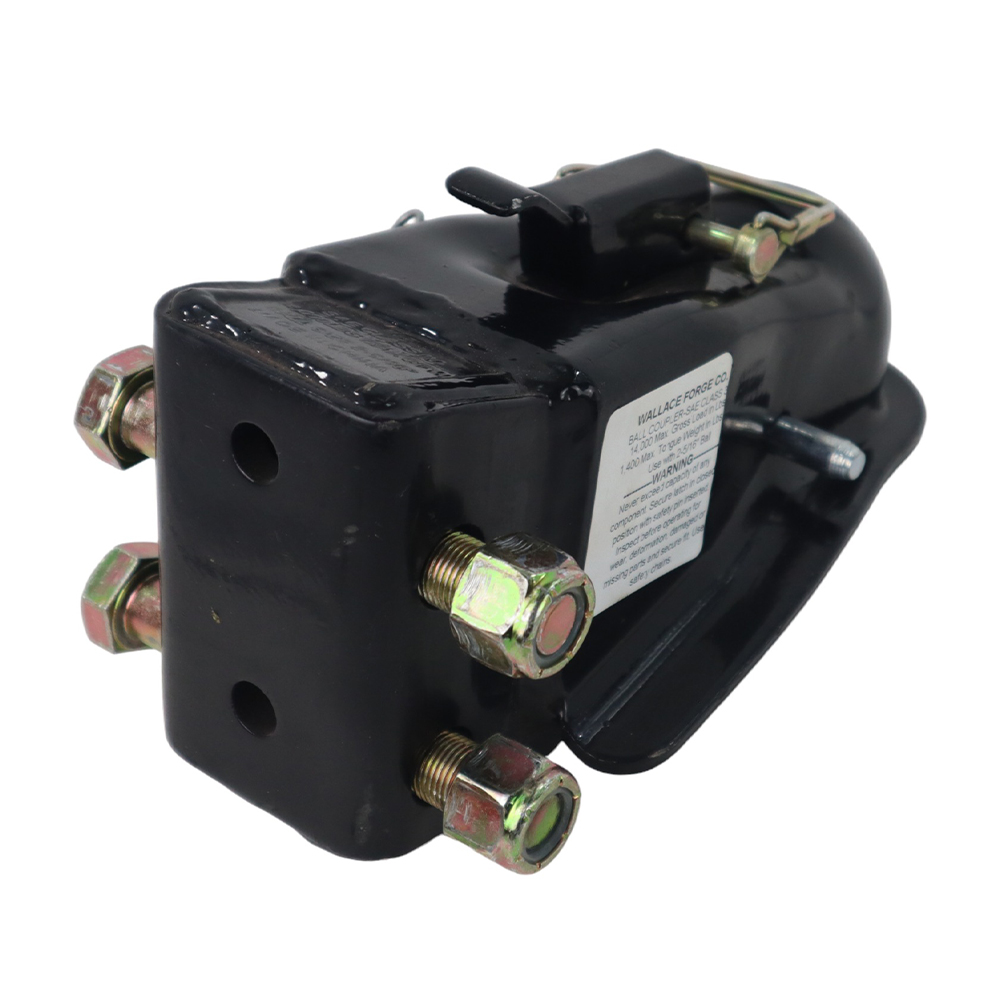

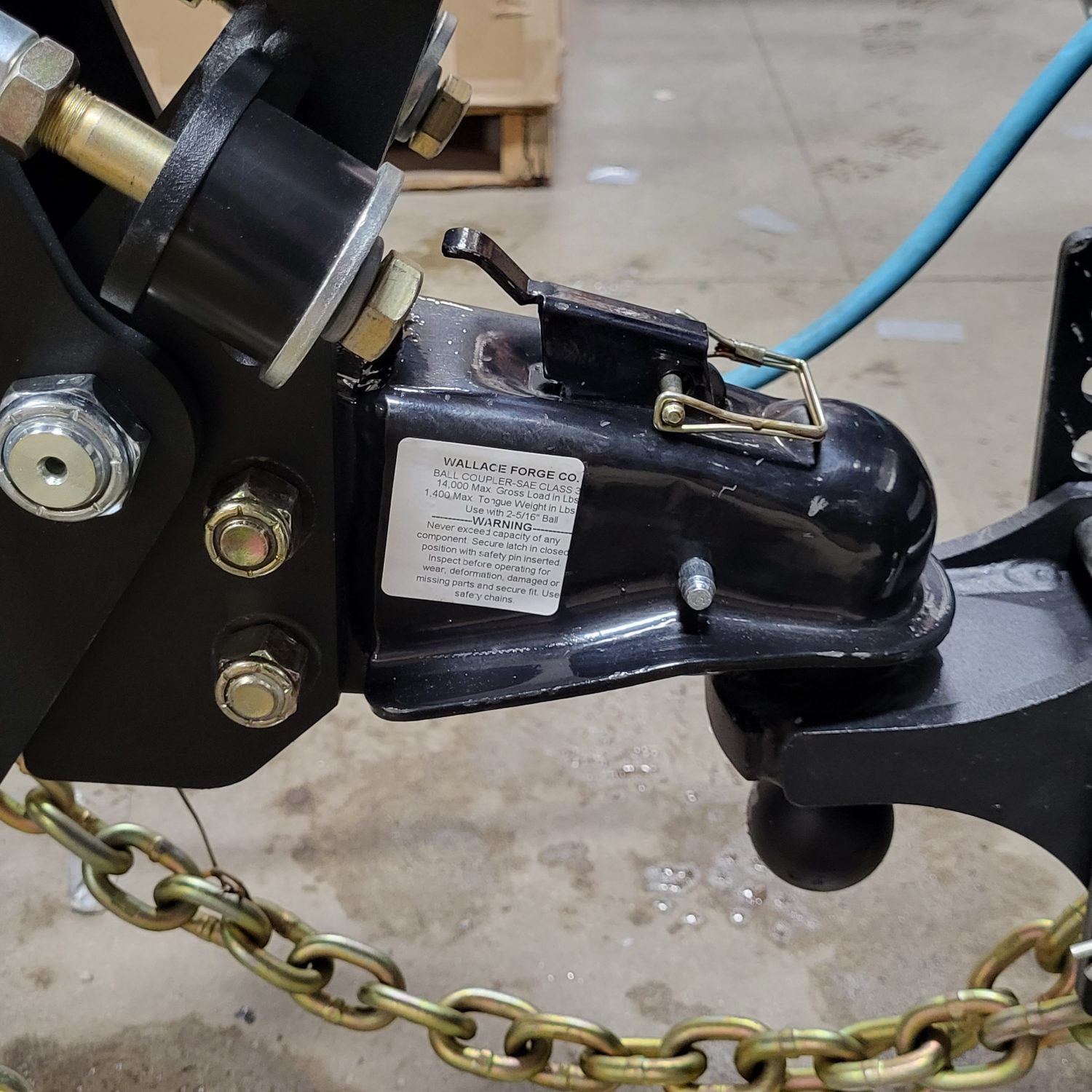

• 2-5/16″ Trailer Ball Coupler: Features a medium duty Wallace forge coupler for a 2-5/16″ ball hitch.

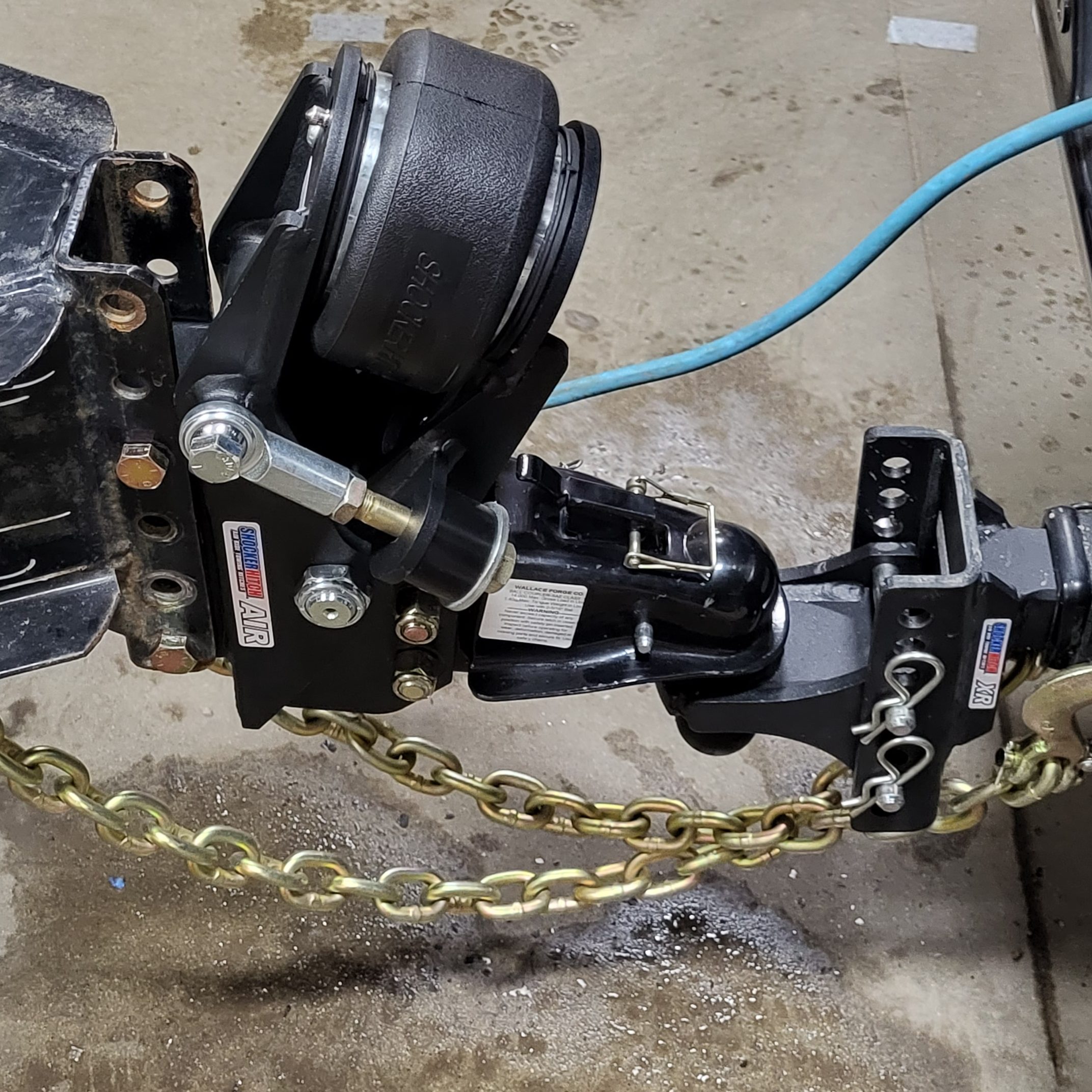

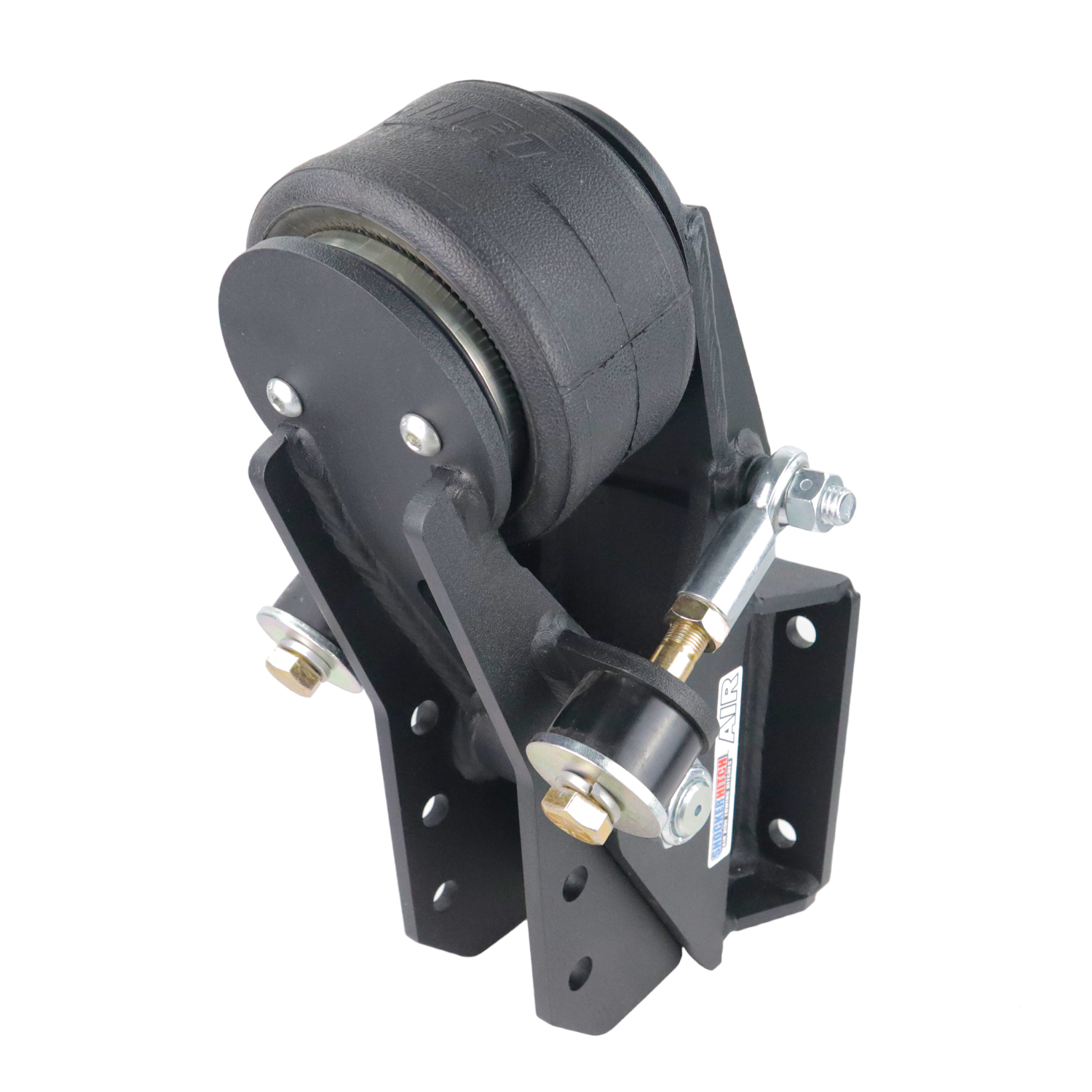

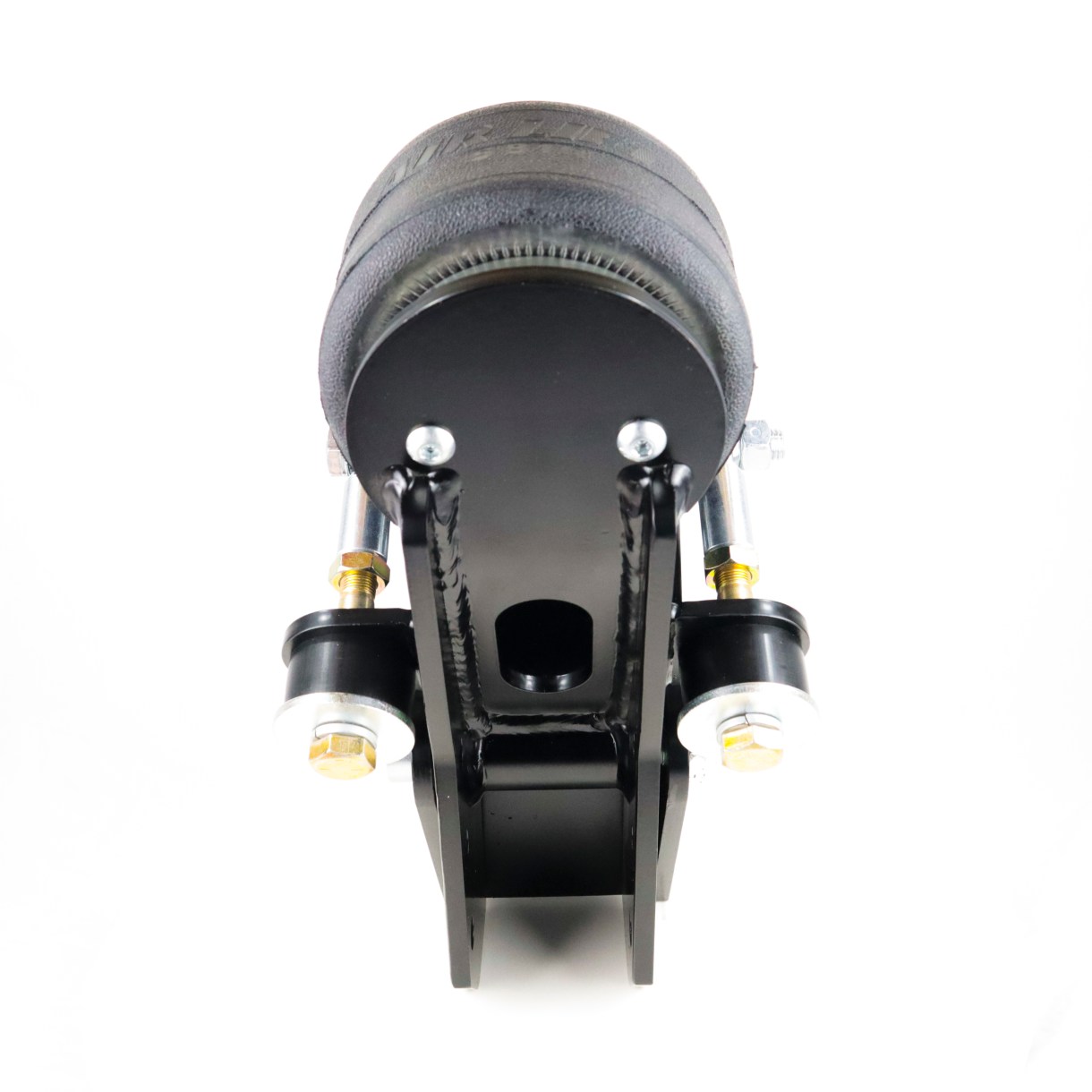

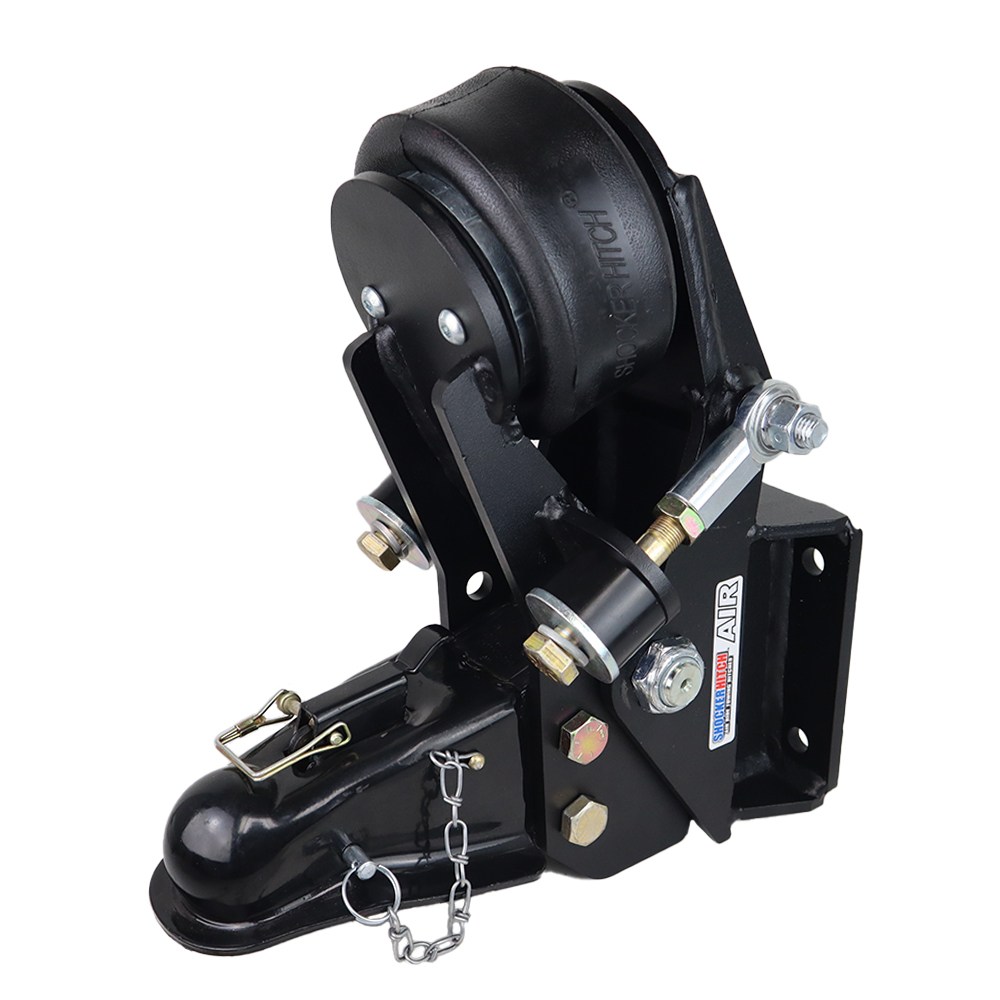

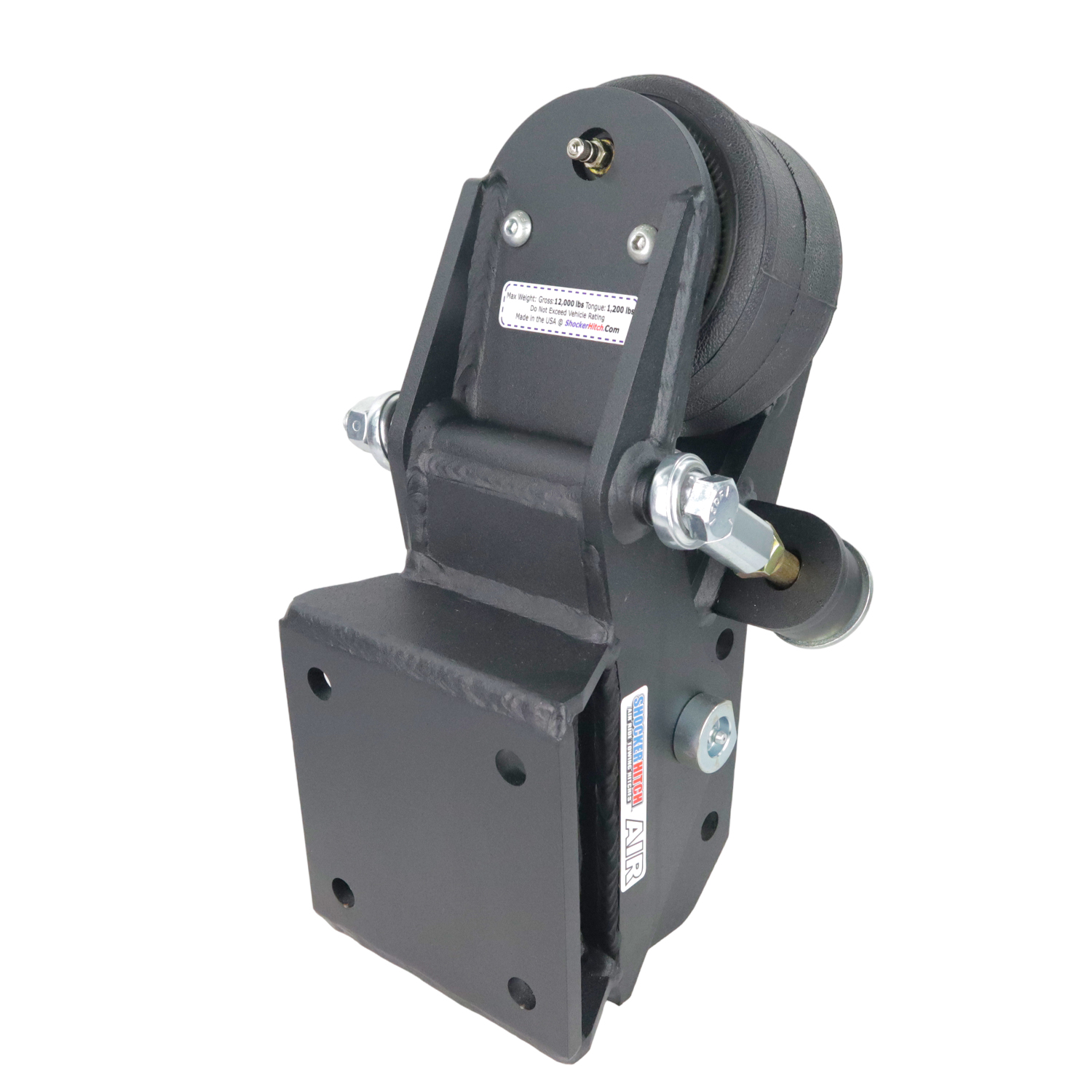

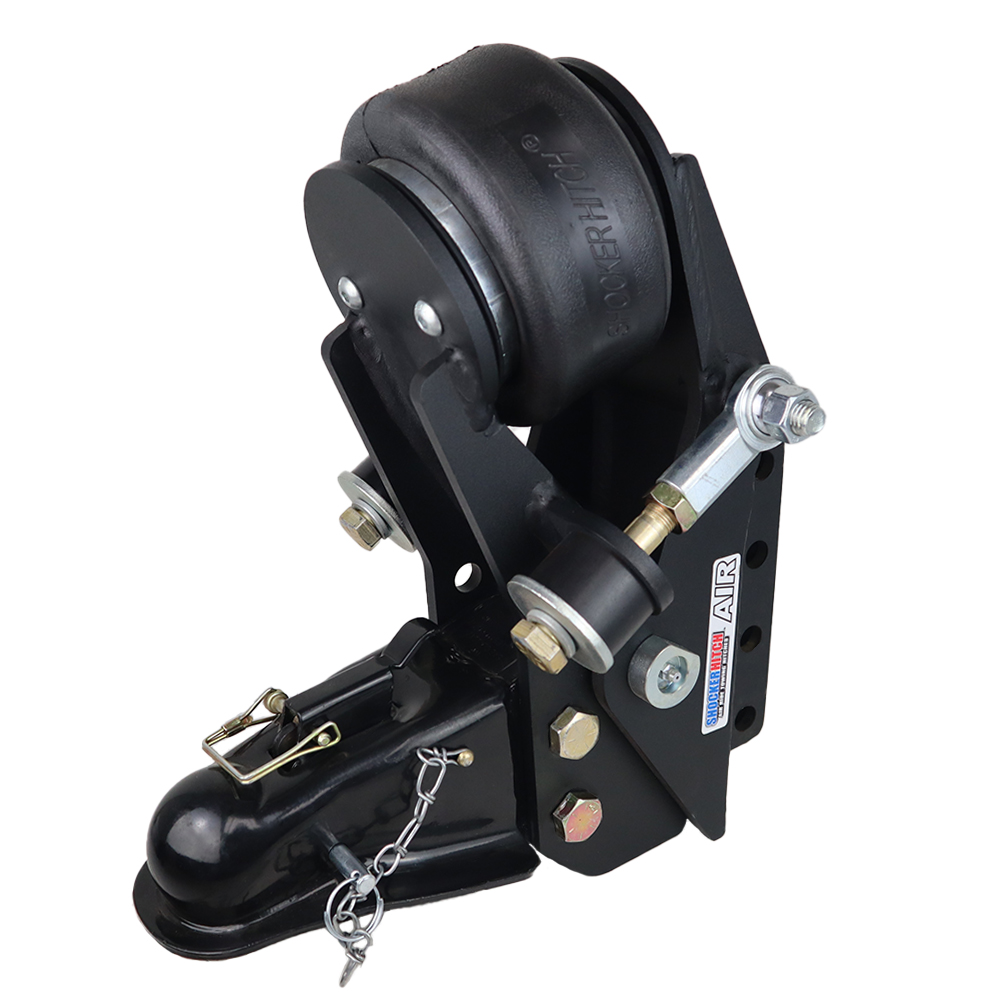

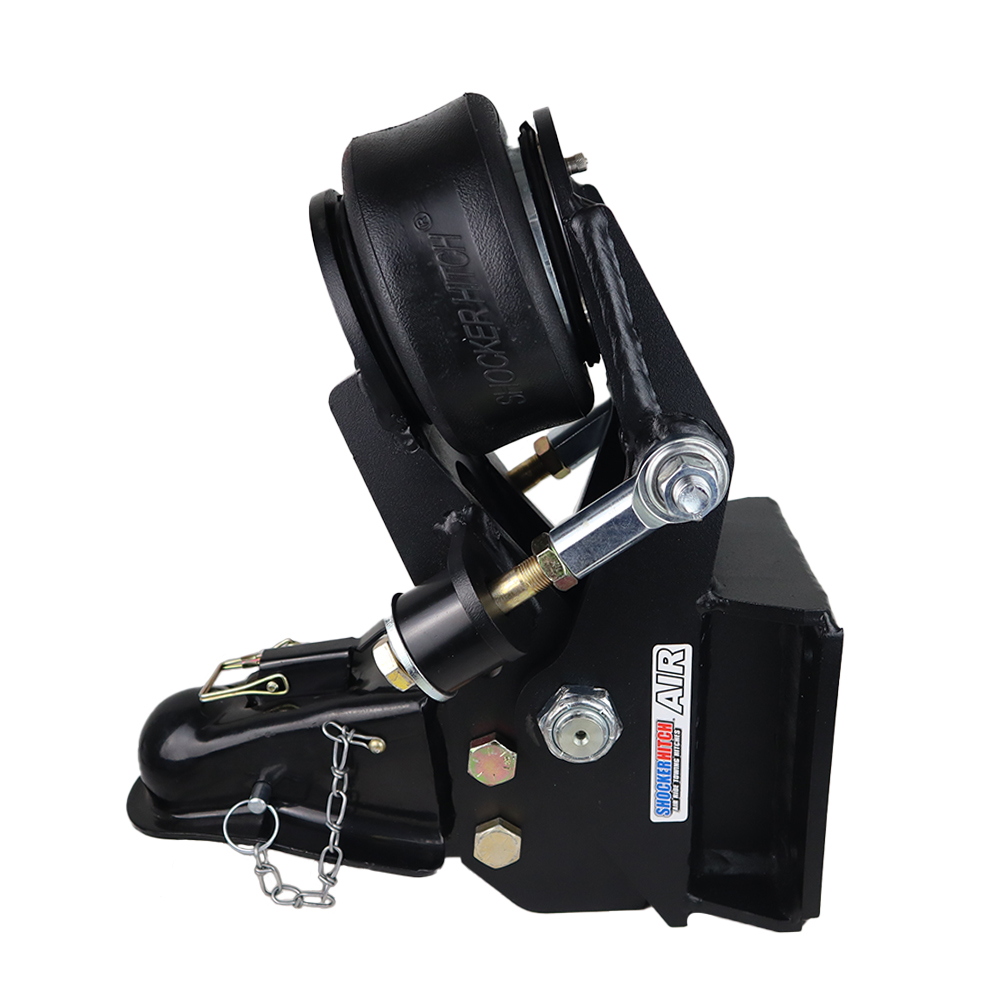

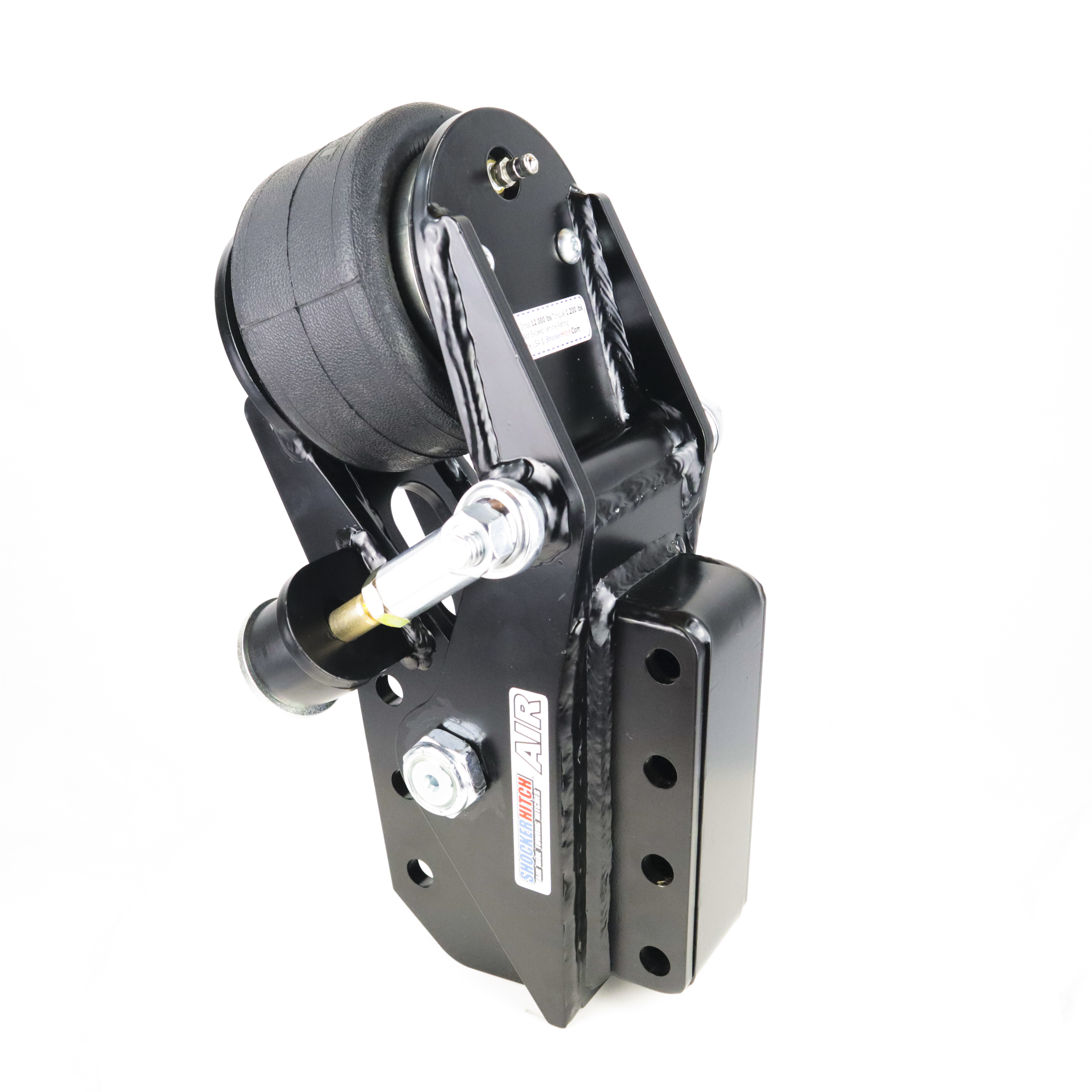

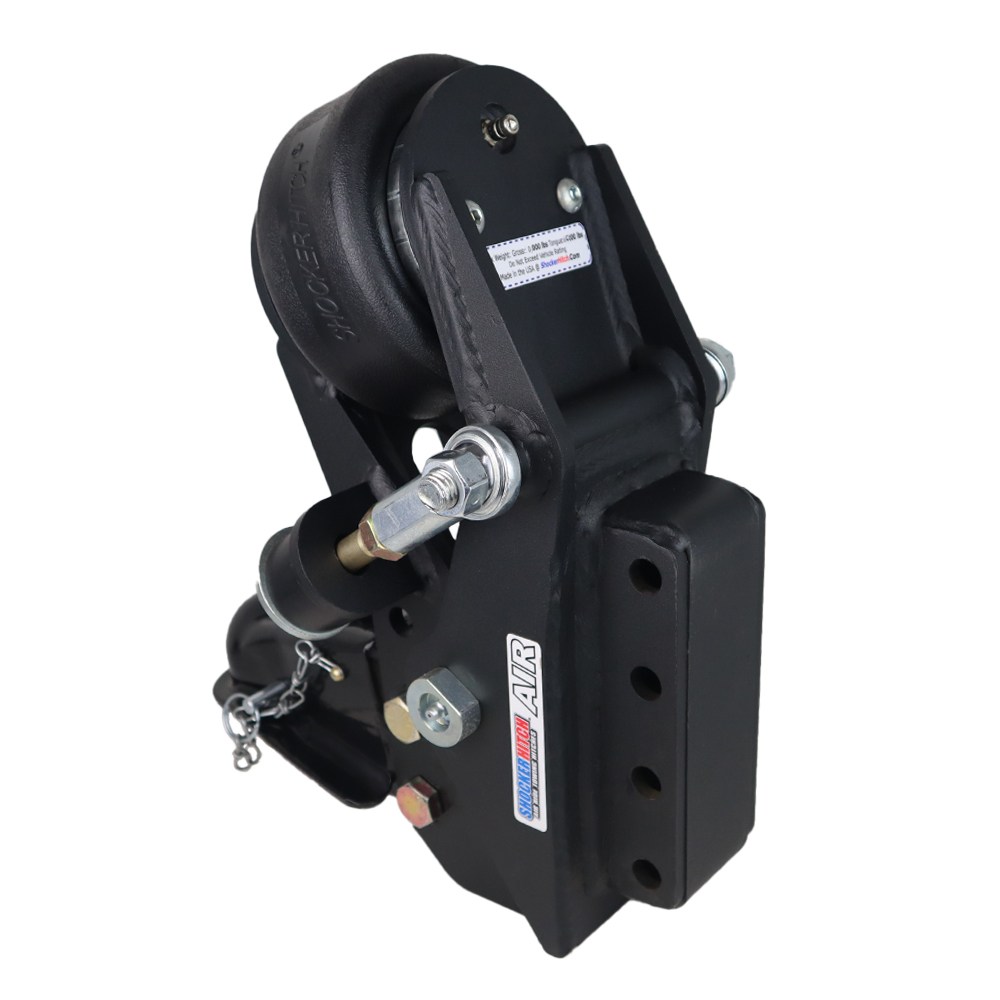

• Quickly Mounts to Front of Your Trailer Tongue: 2 Mounting Options: Vertical Channel Mount: For Trailers with 3-1/2″ Wide Vertical Channel, most use 5/8″ bolts or pins that are 4-1/2″ long for mounting to the trailer. This option fits 3-1/2″ wide OD / 3″ wide ID vertical channel on front of trailer with 2″ center on center bolt pattern. (Need a Vertical Channel? Optional Part # SH-410-C Optional Weld on Vertical Channel Kit Available – Sold Separately). 4 Bolt Flat Plate Mount: For Trailers with Square Flat Plate Mount with 4-1/2″ square bolt pattern). For Trailers with 4 Bolt Flat Plate, The Size and length of Bolts Needed Vary By Trailer. Generally 5/8″ diameter by 4″ long. (Does Not Include Trailer Mounting Bolts).
• Works with WD Hitches: This product WILL work with a weight-distribution hitch system.
• Air Ride Technology: Built-in 12,000 lb air ride system for a smoother towing experience with built-in height adjustment plus weight adjustable. Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air tongue mount with built in air ride and bump cushions, absorbs the thumps, bumps, jerks, tugs & bangs on whatever road you travel.
• Heavier Load, Just Add Air: Fine tune for your towing weight. Just add air for heavier loads.
• Adds Life To Your Trailer: It adds life to your trailer. By reducing wear and tear on pickups driveline and frame as well as the frame of the trailer! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations.
• Shock Dampening Action: Shocker air trailer tongue mount effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and your receiver hitch.

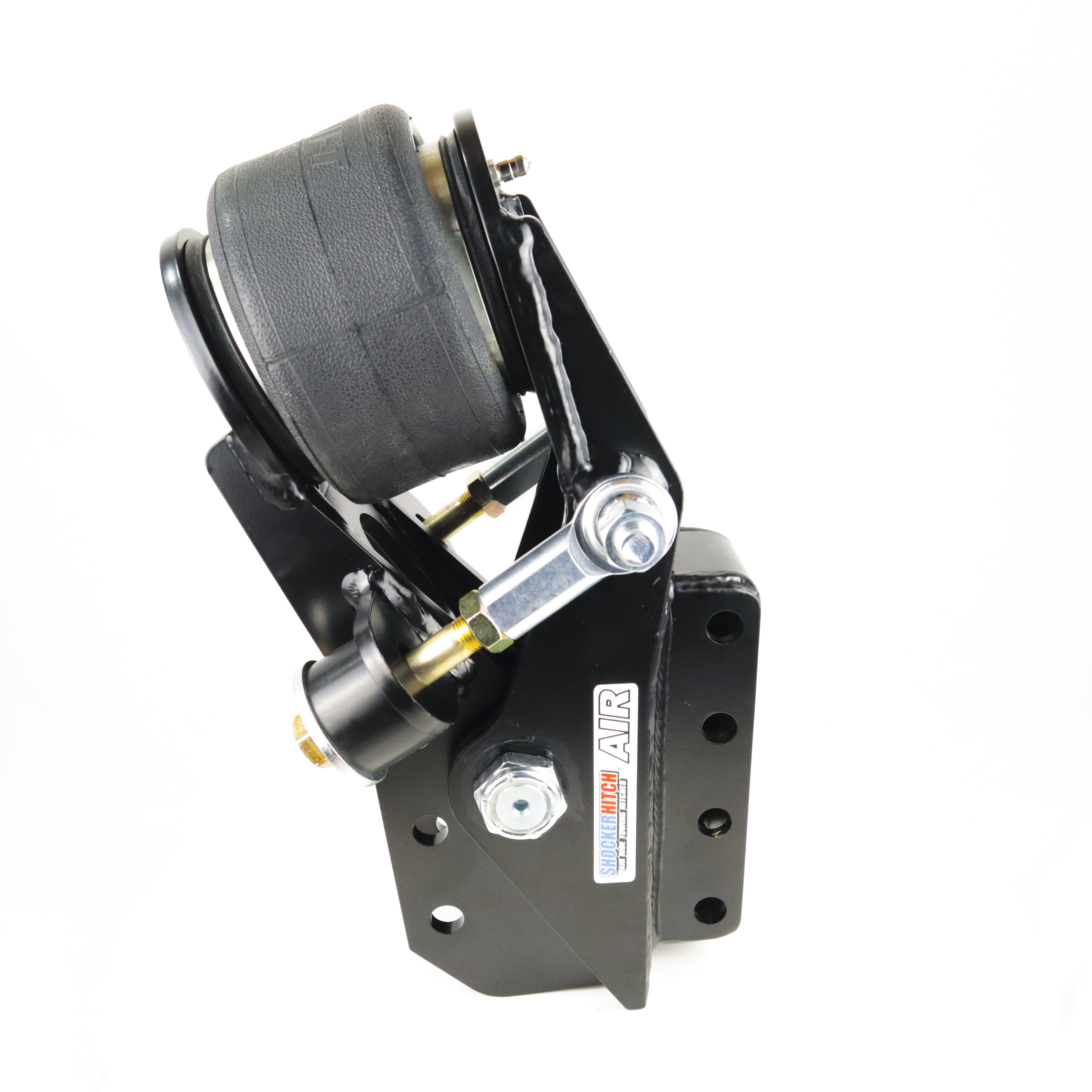

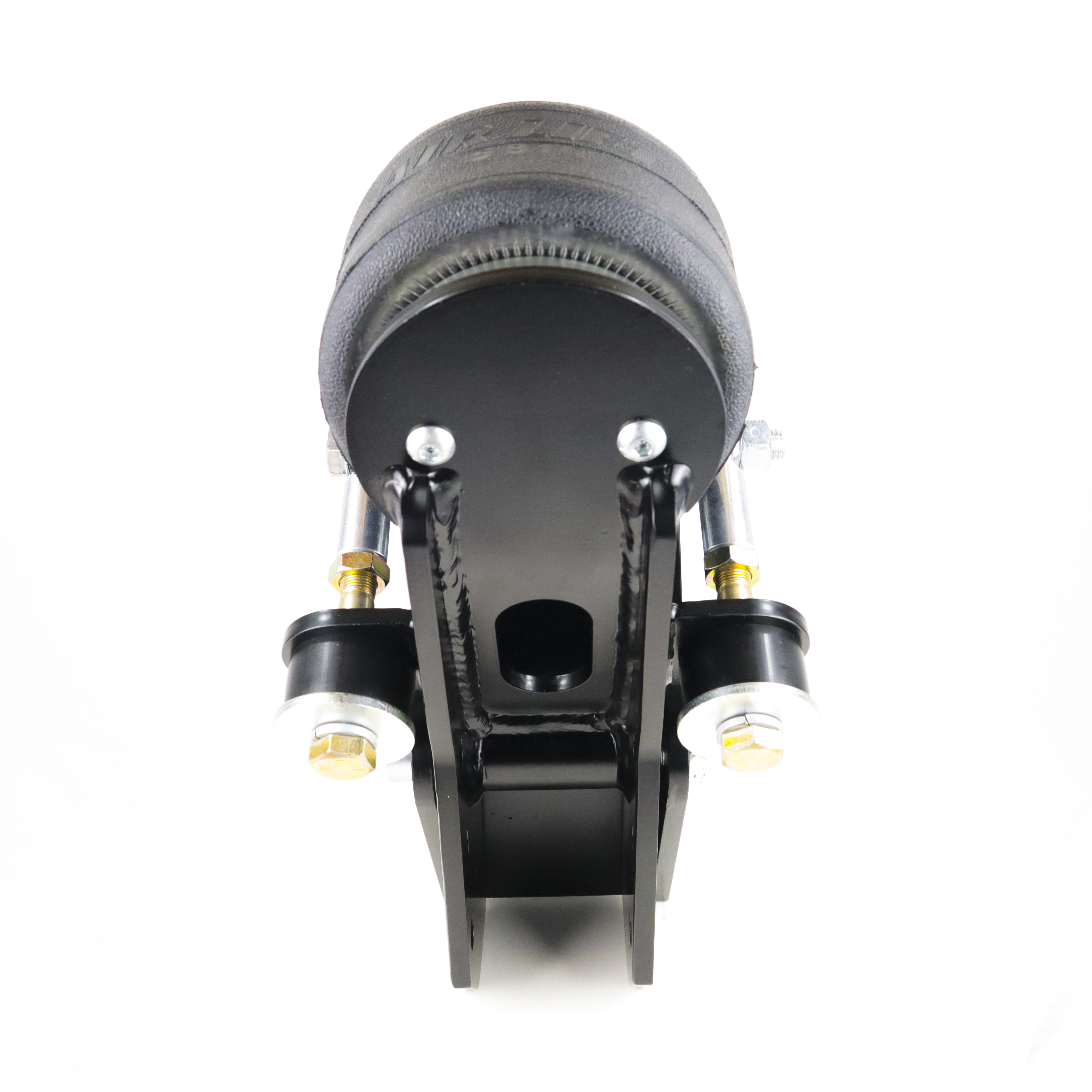

• Simple Pivot Design: uses a rocker arm pivot design which produces a down and back motion, much different than other air ride products on the market. Our design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple air bags common to other air hitches.
• Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker airbag tongue mount absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.

Note: The main pivot bolt, or center pivot bolt, used in the Shocker Air Ride Bolt Tongue Mount is a custom made 1 inch diameter 1045 medium carbon steel bolt. Heat treated to prevent wear & has machined grease passage for easy lubrication. The yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler on the average vertical channel adapter.

Safety Notice: Tow capacity is limited by the lowest-rated component
