Product Description

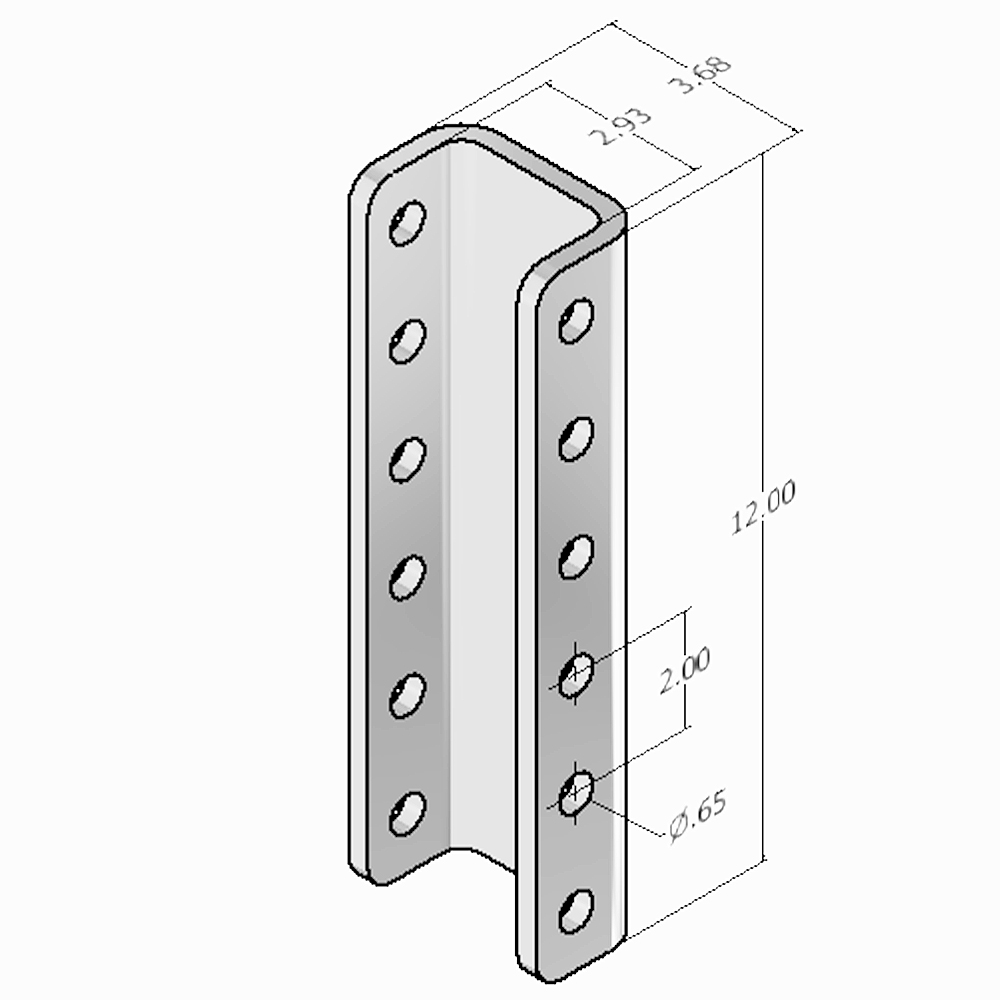

- Weld on 3-1/2″ Vertical Channel: Actual channel is 3.68″ OD / 2.93″ ID x 12″ Tall w/ 2″ on center bolt pattern. Channel is HD 3/8″ thick steel.
- 6 Adjustment Holes: That use 5/8″ pins or 5/8″ x 4-1/2″ bolts to secure trailer coupler or pintle ring.
- Unfinished Raw Steel: Heavy duty 3/8″ think steel.
- 20,000 lbs GTW: Professional Welding Required for Installation.
- This is used so you can bolt on vertical channel mount style trailer ball couplers & pintle rings. Use 5/8″ bolts & lock nuts to secure coupler or pintle ring to channel.
- Also works with our trailer tongue mount air hitches.
- Looking for a full weld on vertical channel adapter, check out our Shocker Hitch Vertical Channel Weld On Tongue Adapter for Trailer A-Frames

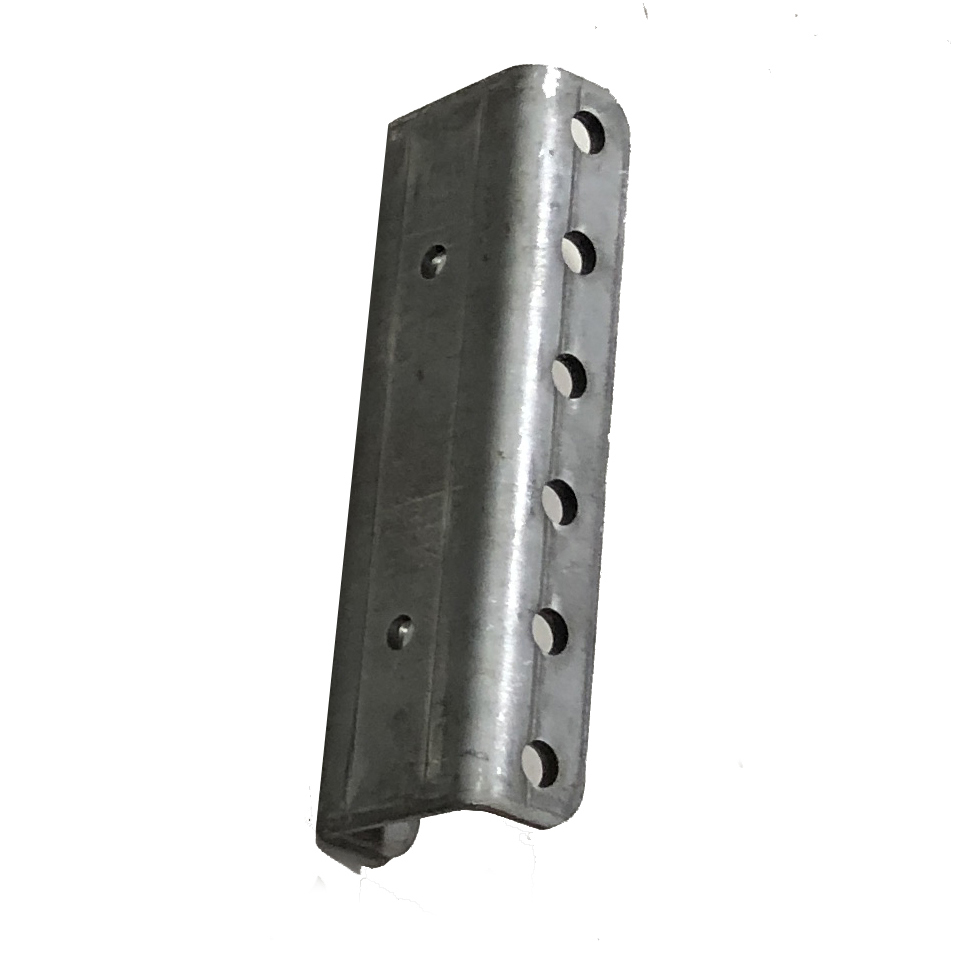

Heavy duty weld-on vertical channel for trailer tongue a-frame. Featuring 6 adjustment holes and made to weld to the a-frame of a trailer for our air trailer tongue mount couplers and pintle rings. Allows you to use bolt on style ball couplers 2″ on center holes. Coupler or pintle can be secured to vertical channel with 5/8″ pins or bolts with lock nuts. Up to 20,000 lbs GTW if properly welded onto trailer. Actual channel is 3.68″ OD / 2.93″ ID x 12″ Tall w/ 2″ on center bolt pattern. Channel is HD 3/8″ thick steel.
