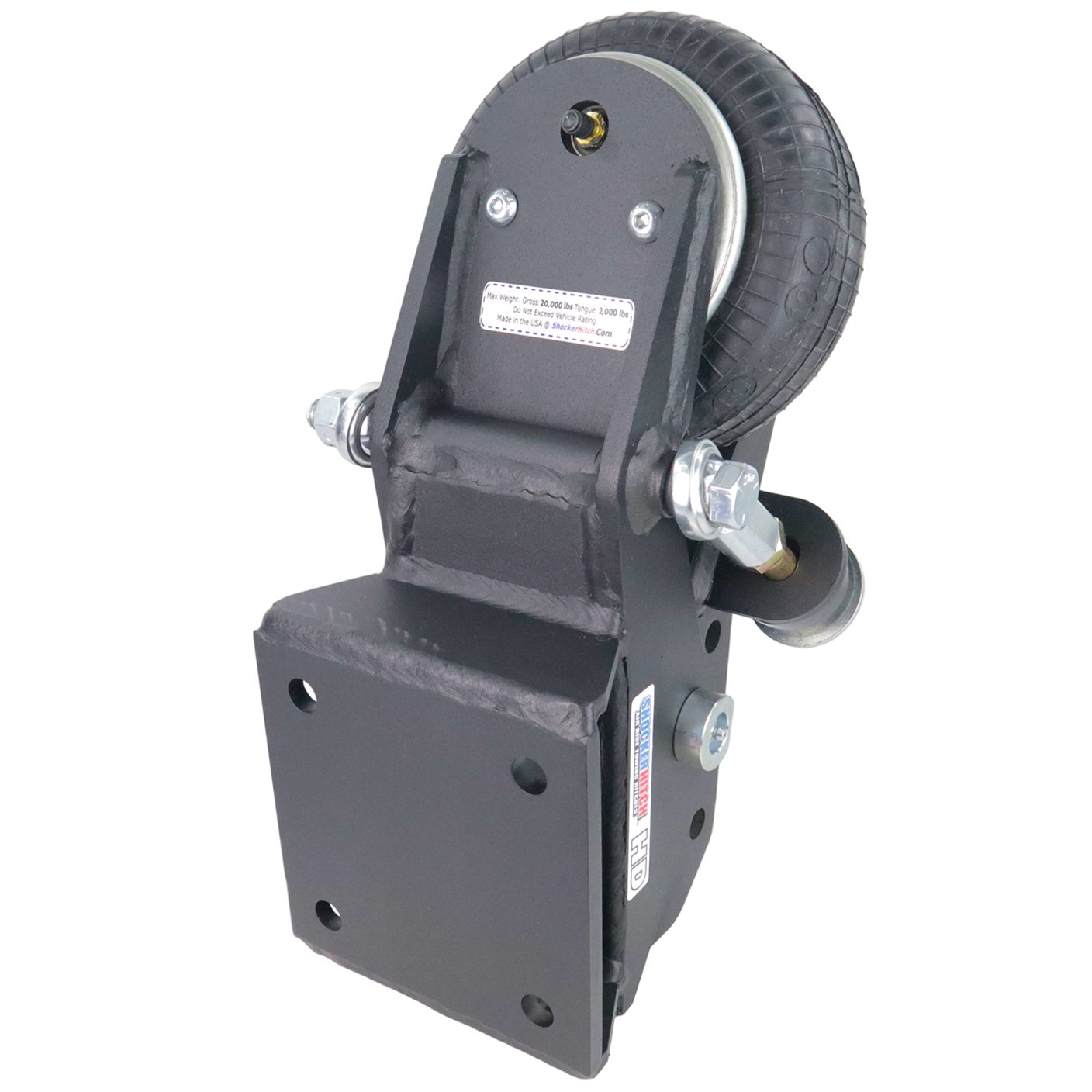

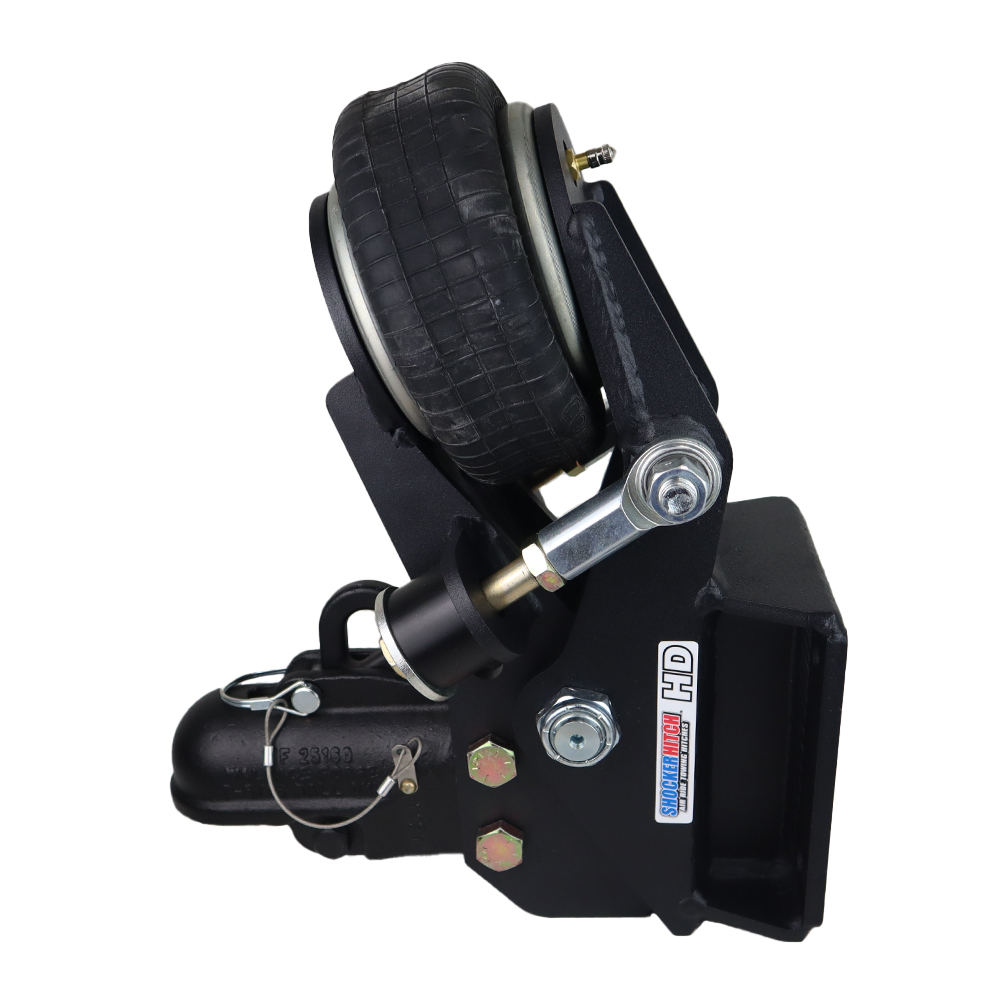

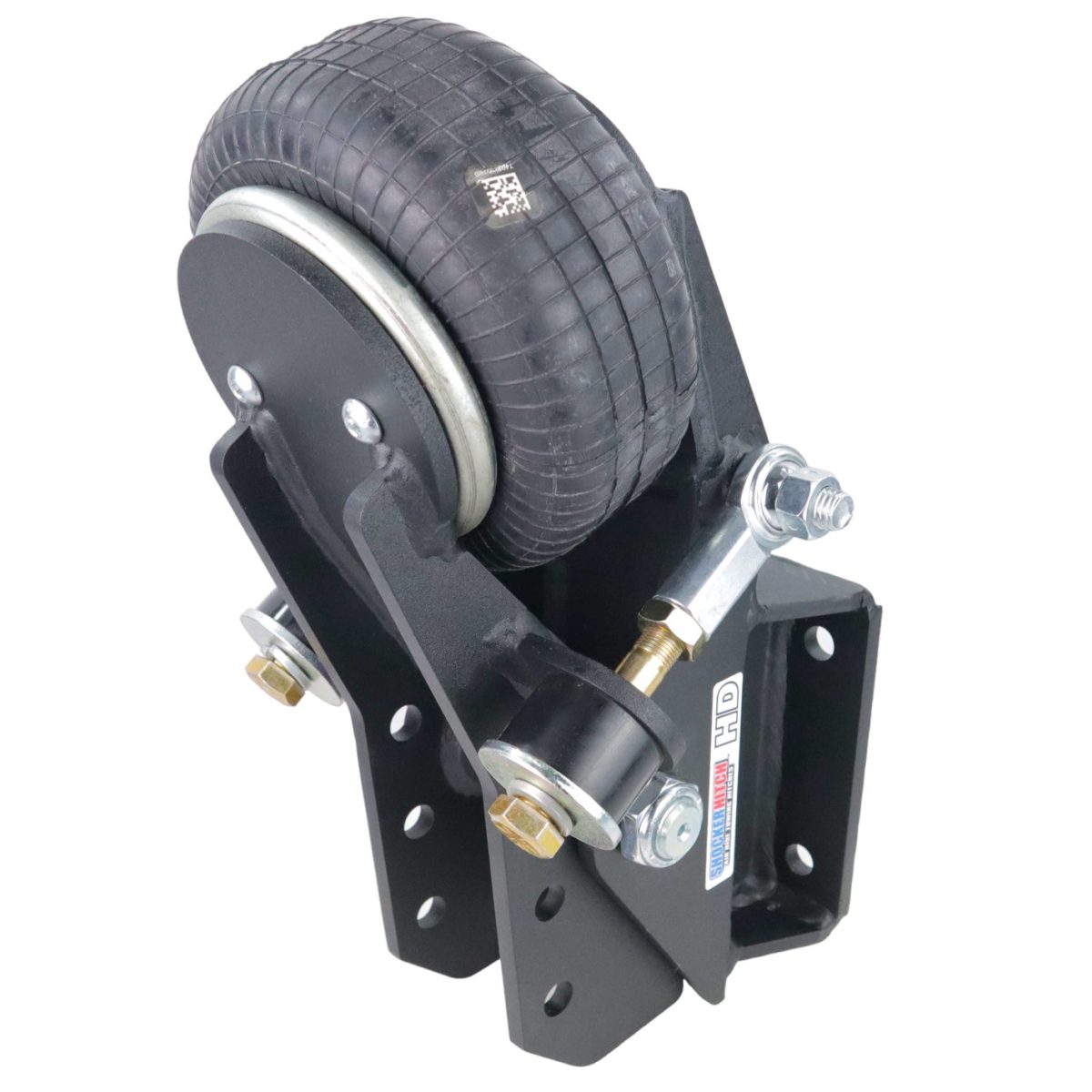

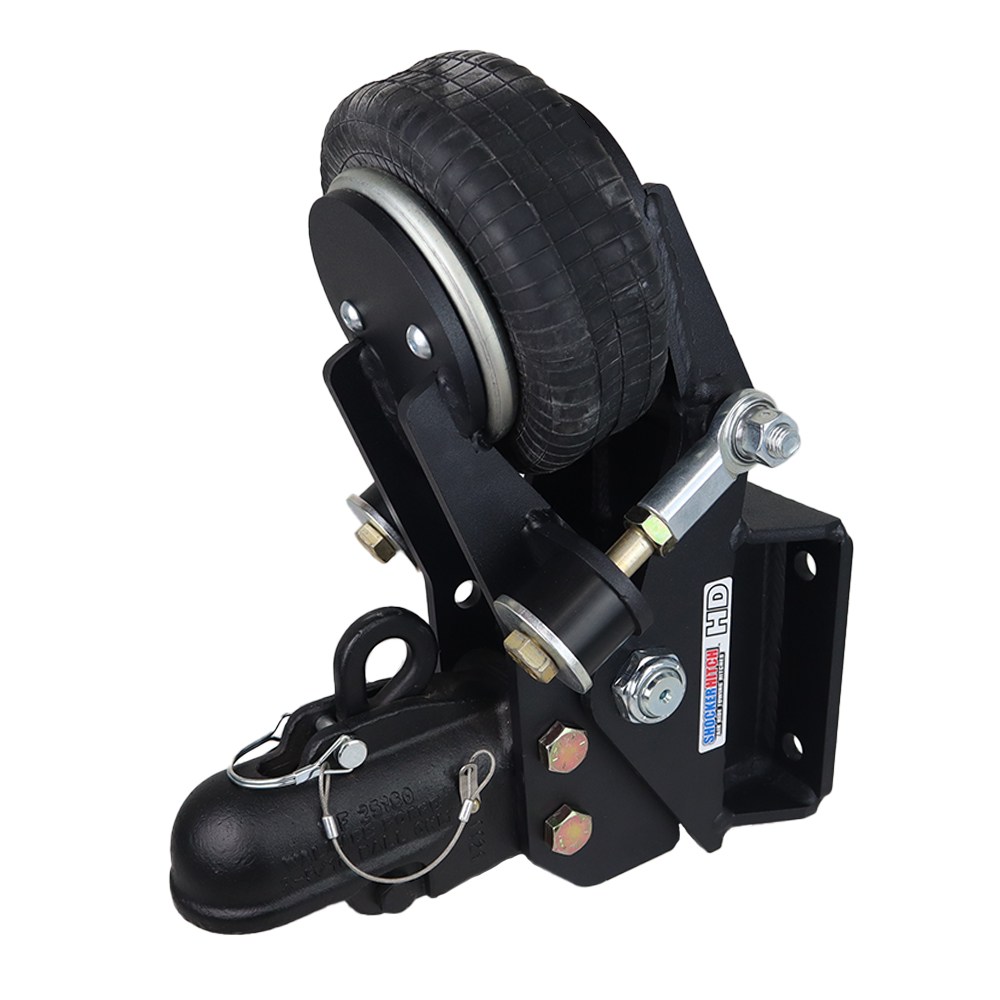

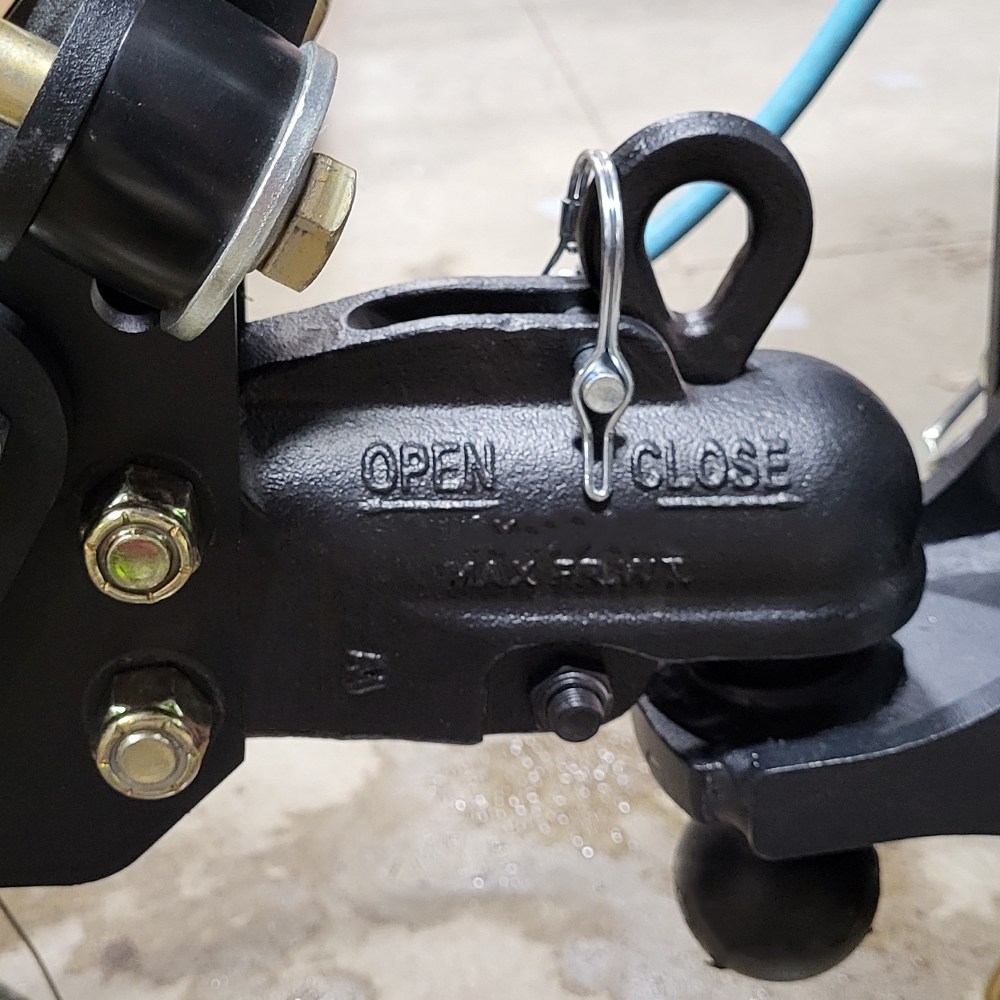

Shocker HD 20K Air Trailer Tongue Mount with Wallace 2-5/16″ Ball Coupler

Rated 0 out of 5

CAD$1,124.99CAD$1,289.97

Free Ground Shipping*
Usually Ships on or Before Thu 11/28/24
Usually Ships on or Before Thu 11/28/24
Clear
OR

  • Videos arrow

    Videos

    Shocker Air Trailer Tongue Coupler Mount Videos

  • Install arrow

    Install

    Shocker Air Trailer Tongue Mount with Coupler Installation

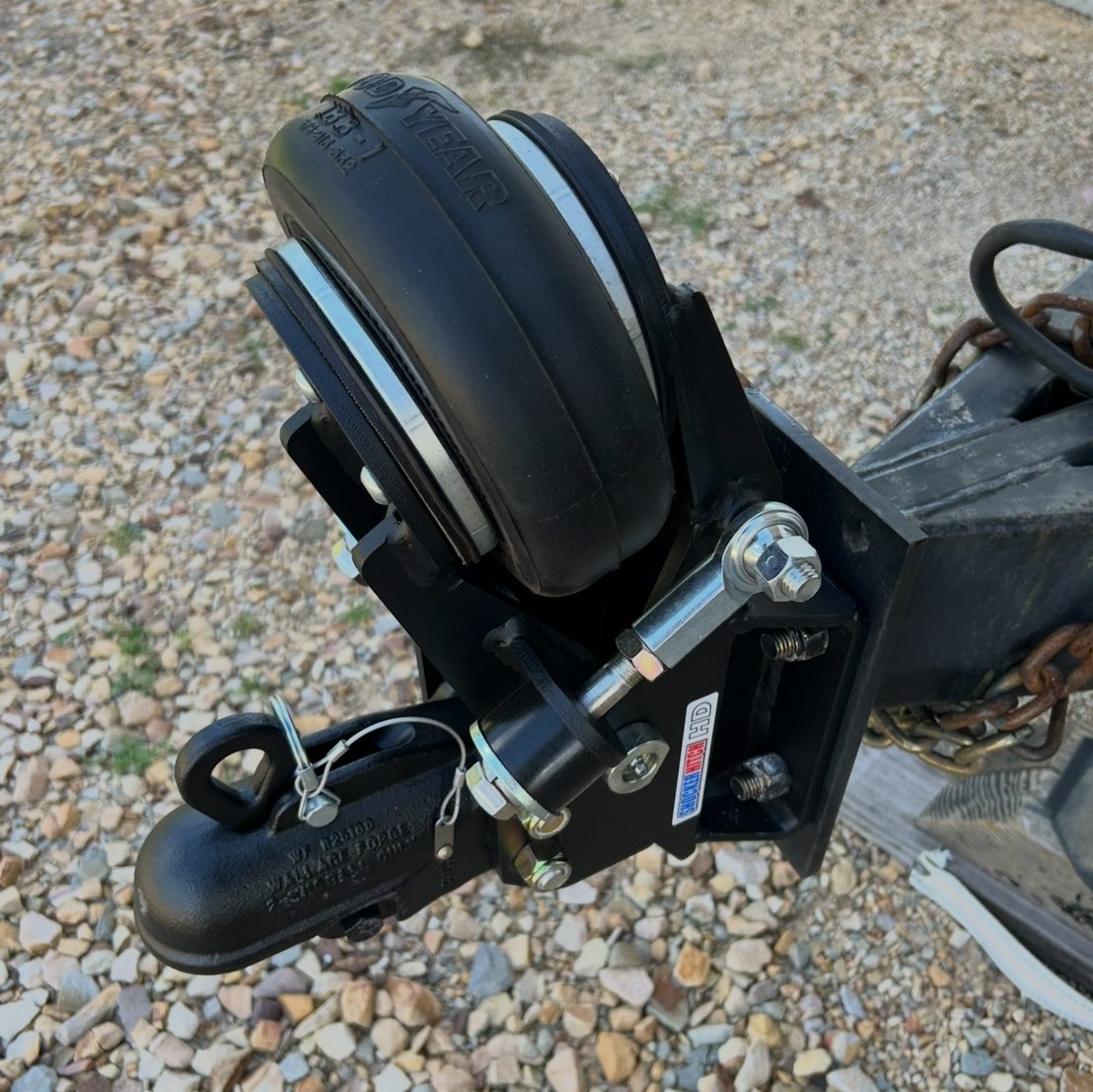

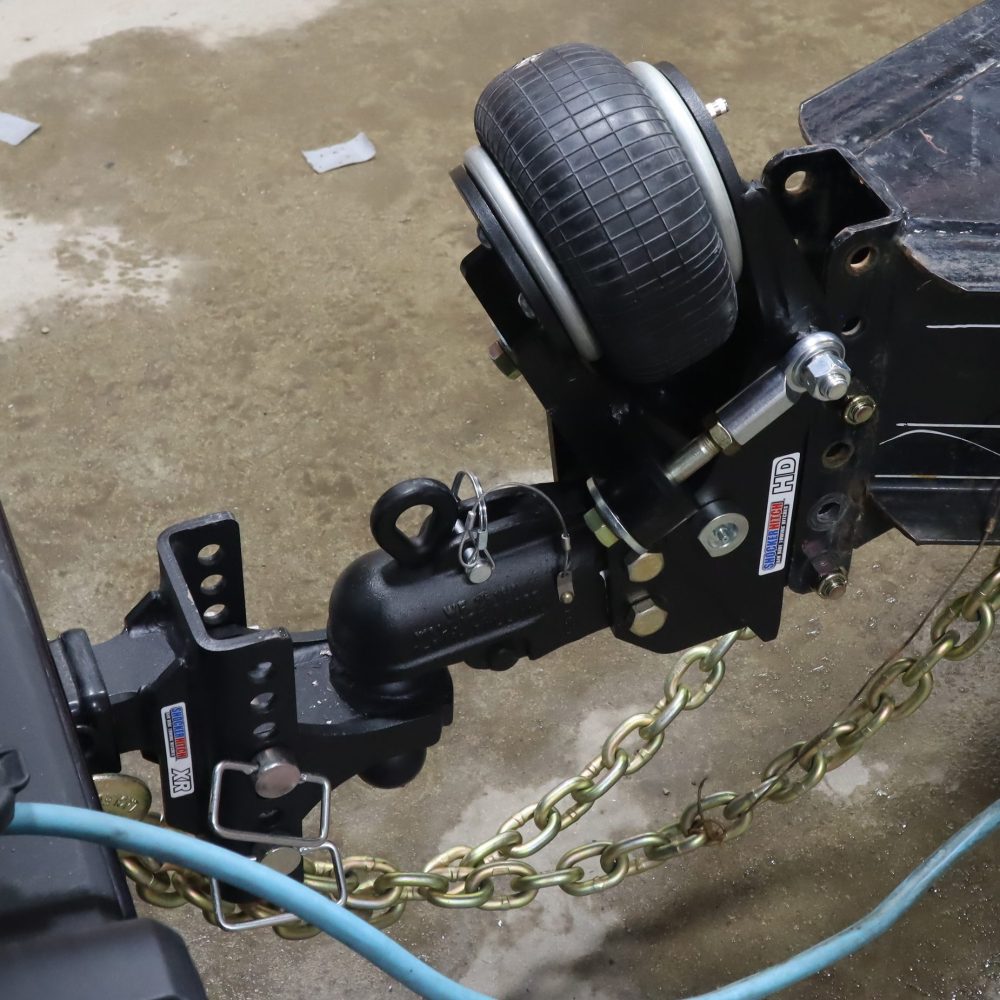

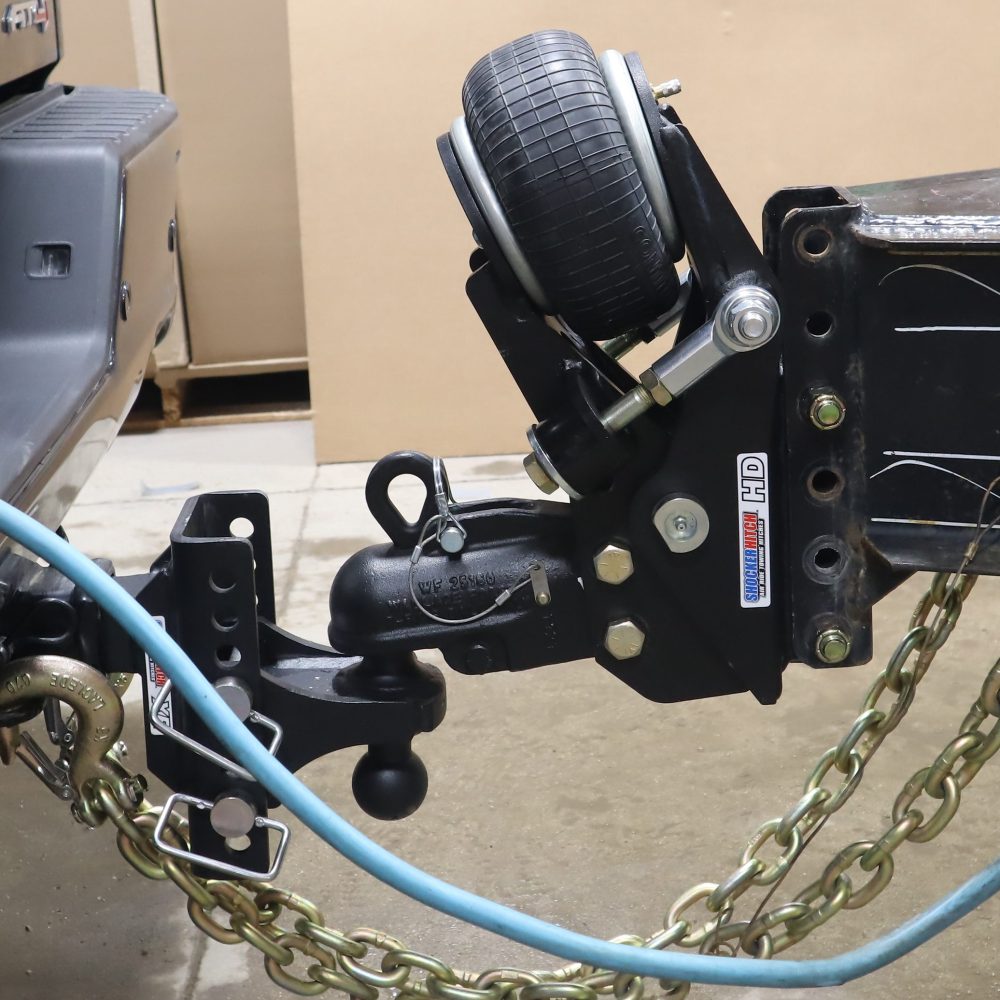

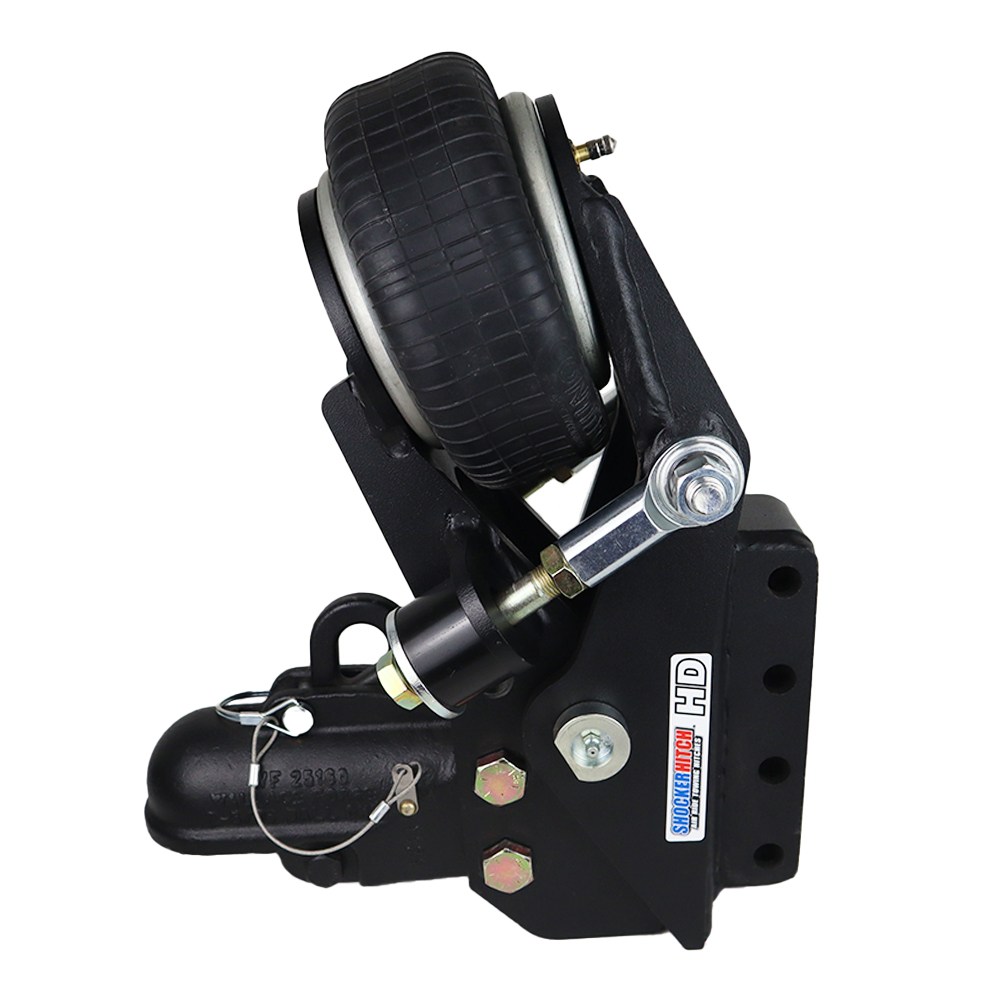

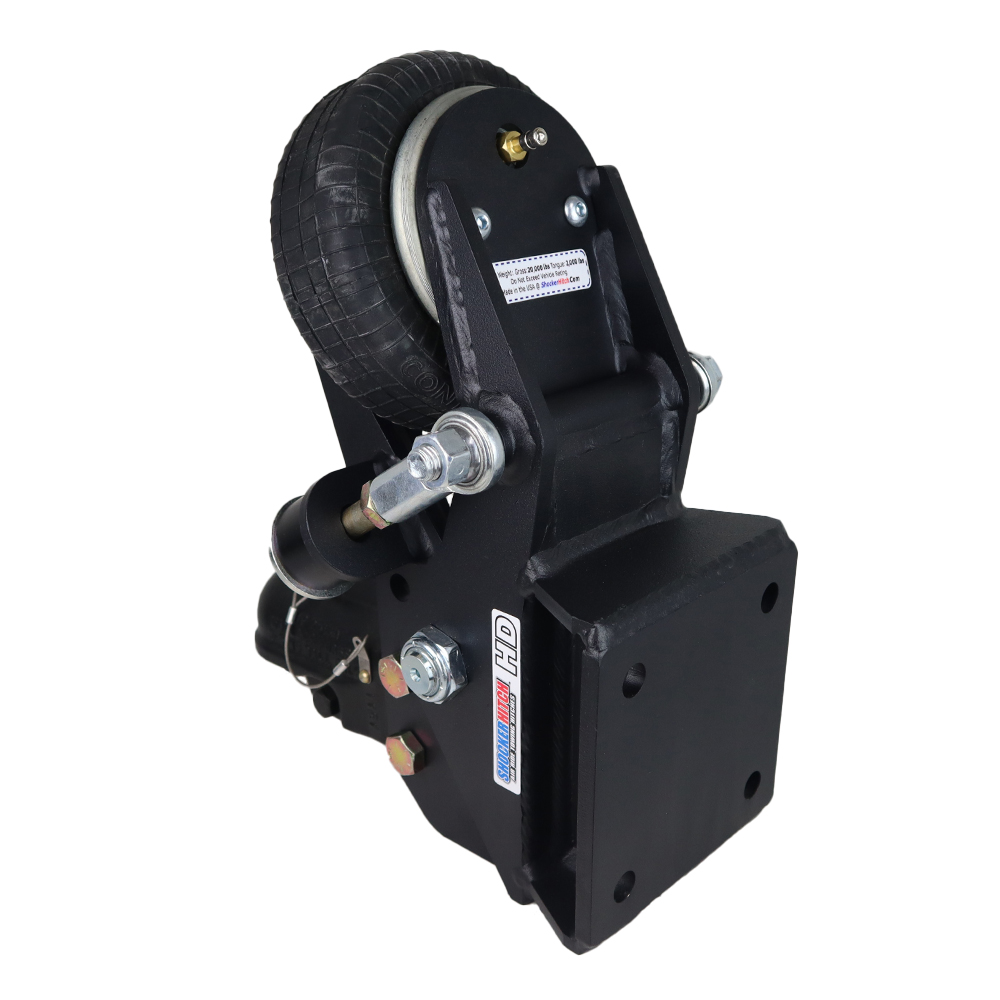

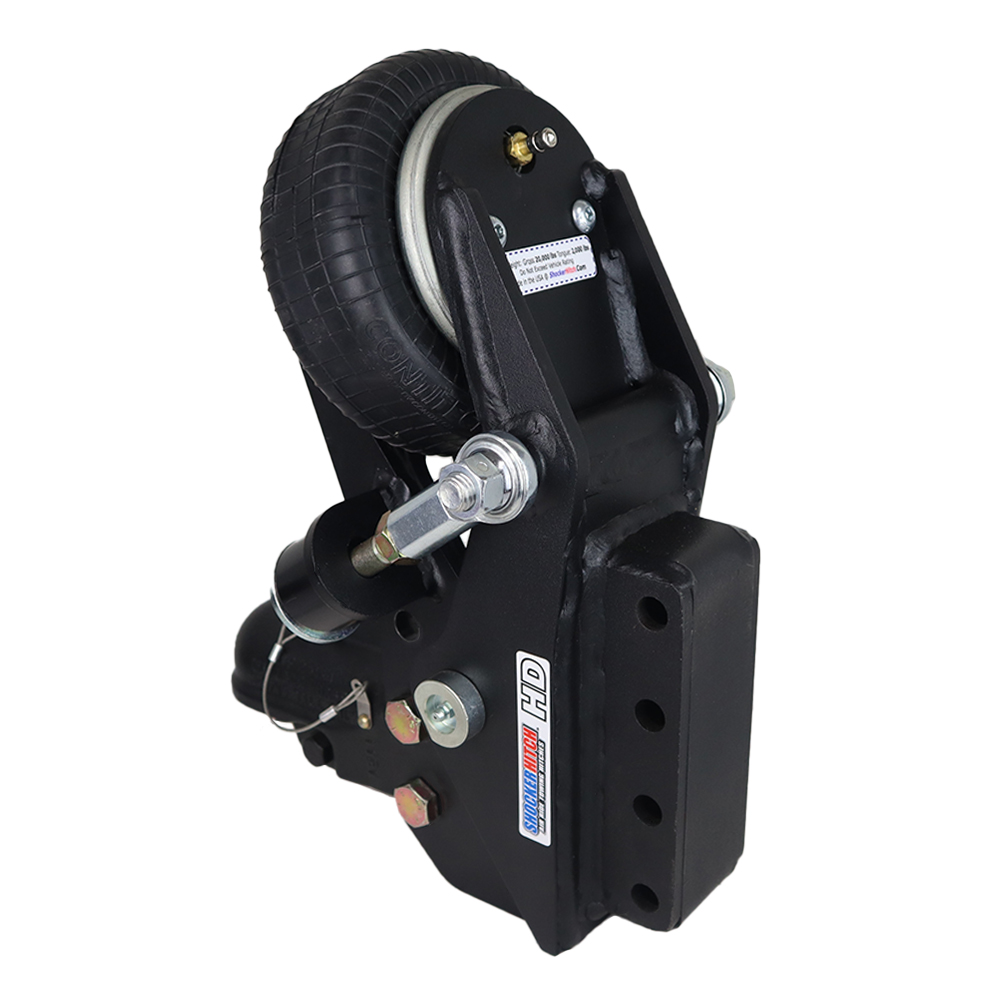

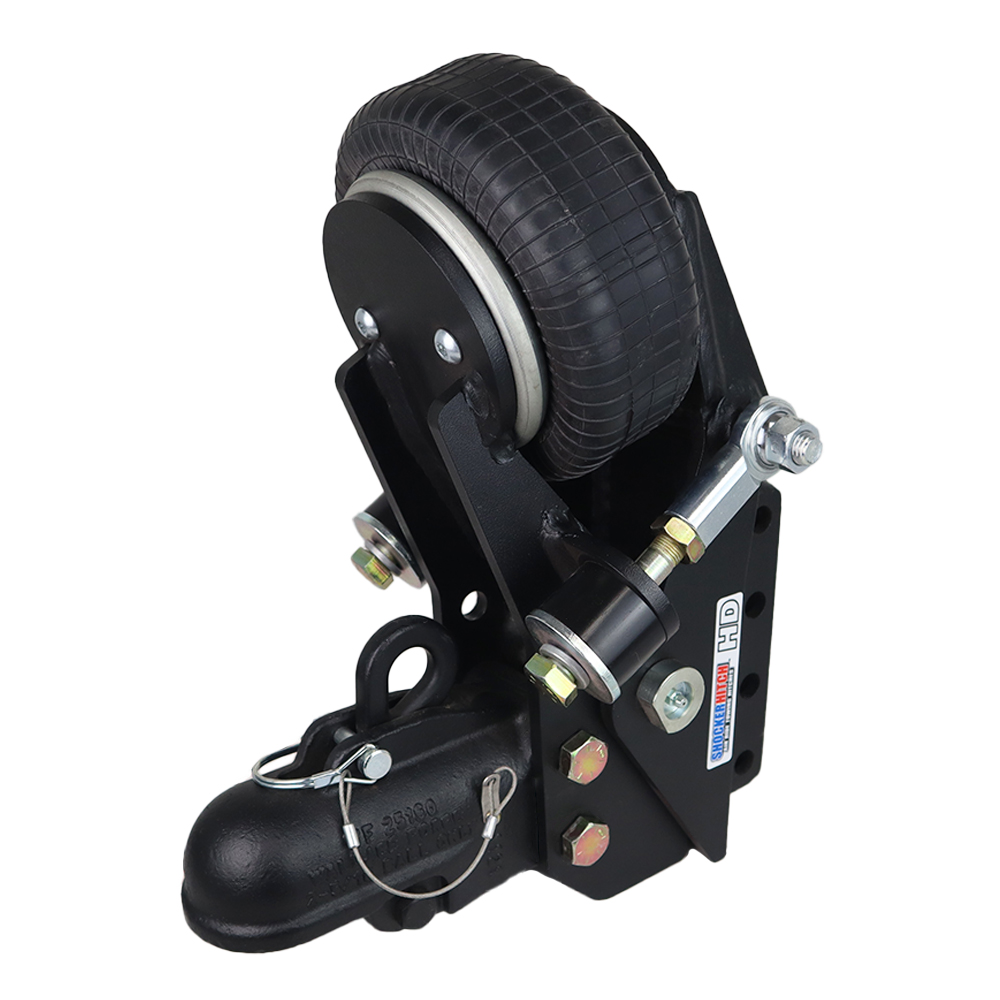

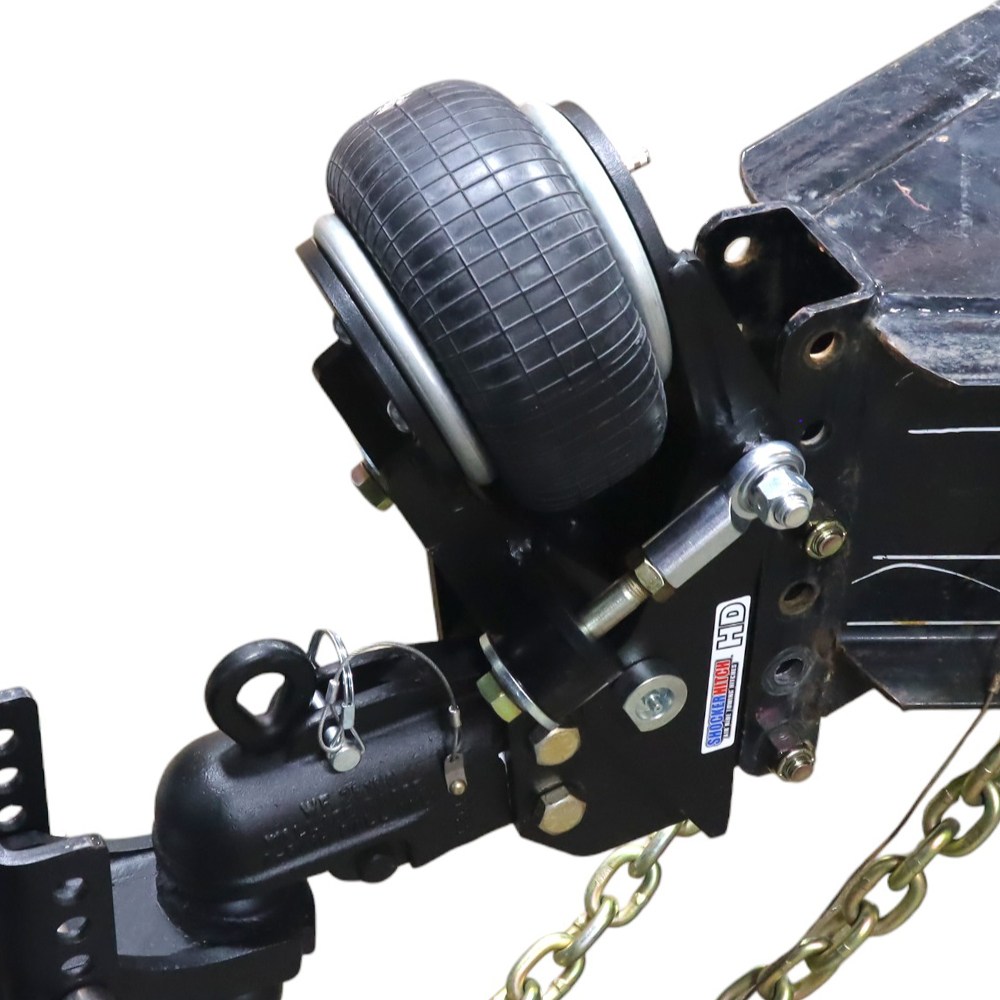

    Vertical Channel & Square Plate adaptor styles only: Remove your existing coupler and bolt on the air trailer tongue mount to your vertical channel or 4 bolt flat plate trailer tongue.  Replace the existing ball coupler on the tongue of trailer with the Shocker Hitch Tongue Mount Hitch. Verify or lengthen safety chains and wiring connections to ensure proper clearance when turning corners.

    Shocker Air Trailer Tongue Mount Install Video

    When used properly these products will make noticeable improvements in your trailer towing quality. Giving both truck and trailer a smoother ride with less trailer fatigue and breakage.

    Setting Shocker Air Pressure for Trailer Tongue Mount Coupler

    To Set Air

    Load trailer the way it will be towed. Inflate airbag on Shocker Air Trailer Tongue Mount hitch. CAUTION: Keep hands and clothing away from moving parts of hitch to avoid pinching and injury. As air pressure increases, the unit will rotate lifting the hitch and trailer tongue. Install air until green bushing has 1/4″ clearance from the red frame. Always inflate air bag to set the Shocker Hitch, never deflate air bag to set Shocker Hitch, unsatisfactory results may occur. When using Equalizer/ Weight Distribution Hitch: Follow directions above, then hook up equalizer bars, and continue inflating air bag until 1/4″ clearance on bump stops is achieved. Note: When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker. Usage: Under normal circumstances, tongue weight should be at least 10 percent of the total towing weight. NOTE: IT IS HIGHLY RECOMMENDED THAT THE HITCH BALL BE GREASED TO REDUCE WEAR AND IMPROVE SHOCKER ACTION. Maximum Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.
    Air Trailer Tongue Mount Hitch Diagrams
    Air Trailer Tongue Mount Hitch Diagrams

    Installation Issues

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 587-897-4625 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

    We’re here to help. Contact Us

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 587-897-4625 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Questions & Answers arrow

    Questions and answers of the customers

    There are no questions yet. Be the first to ask a question about this product.
