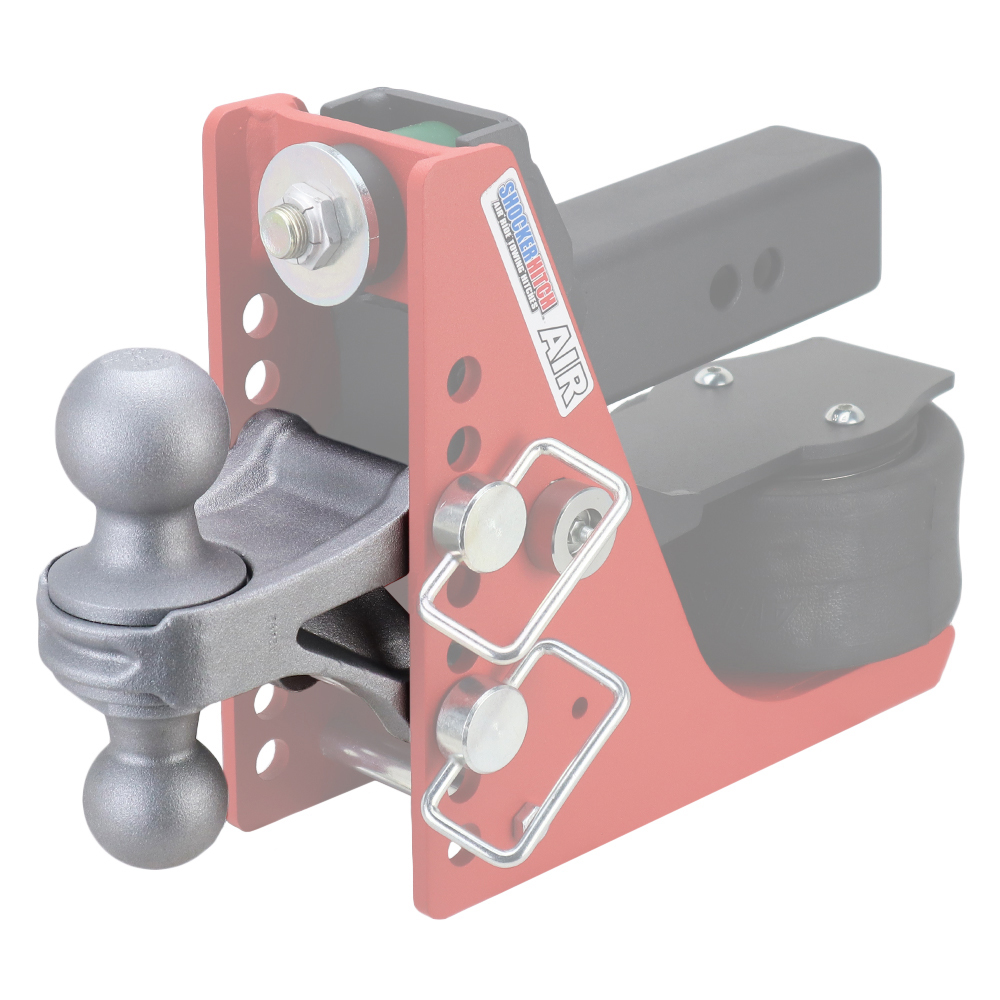

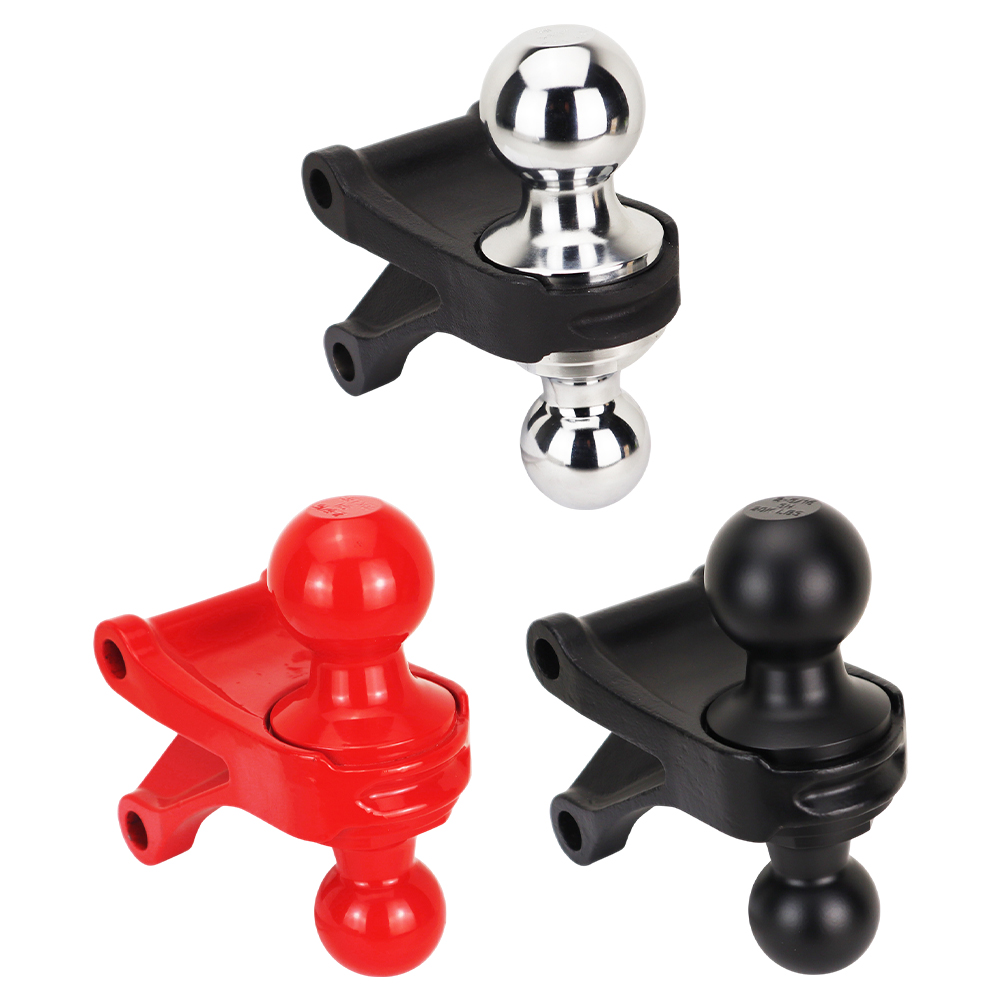

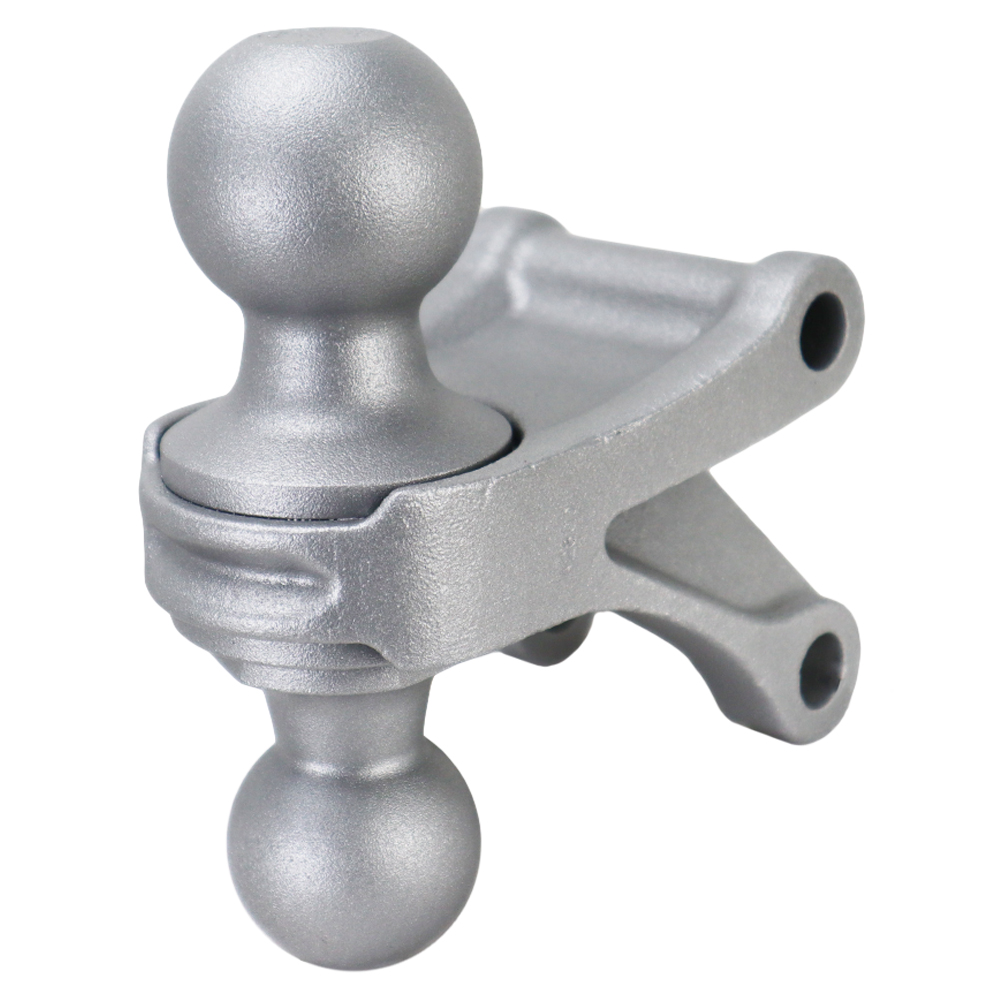

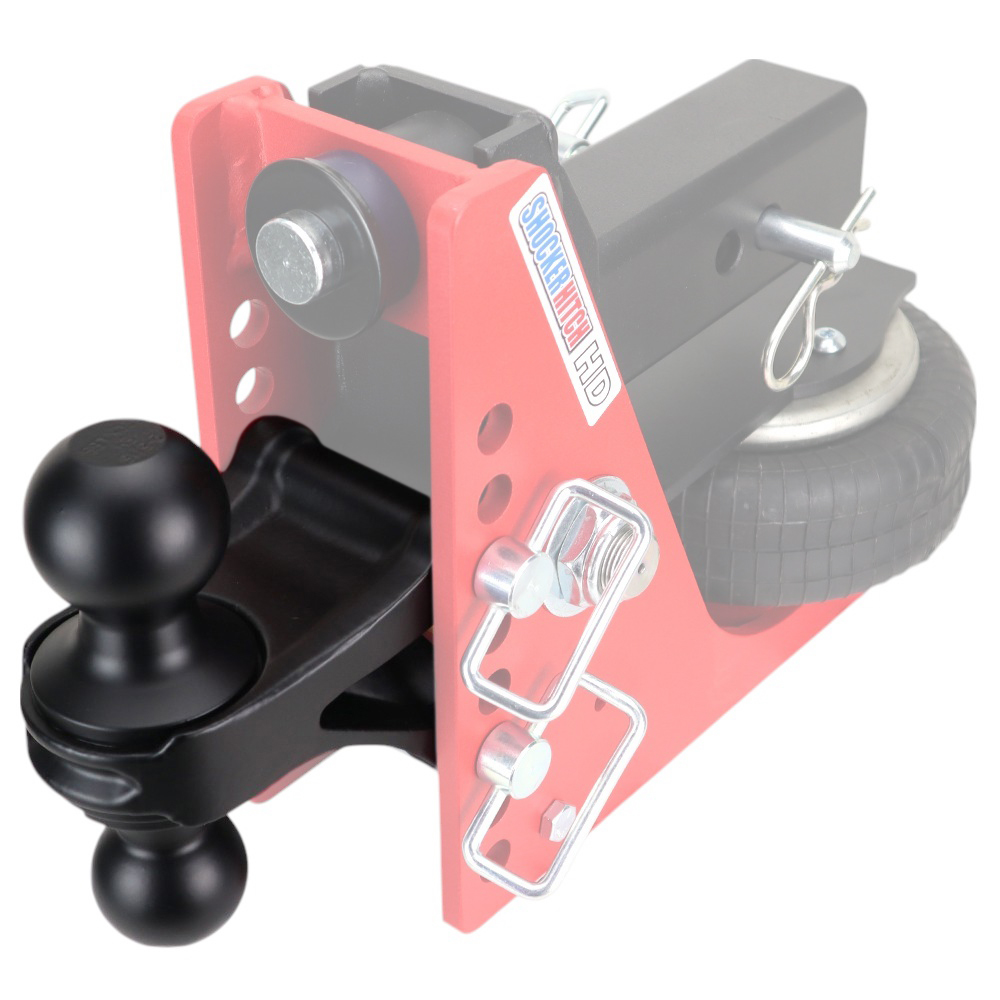

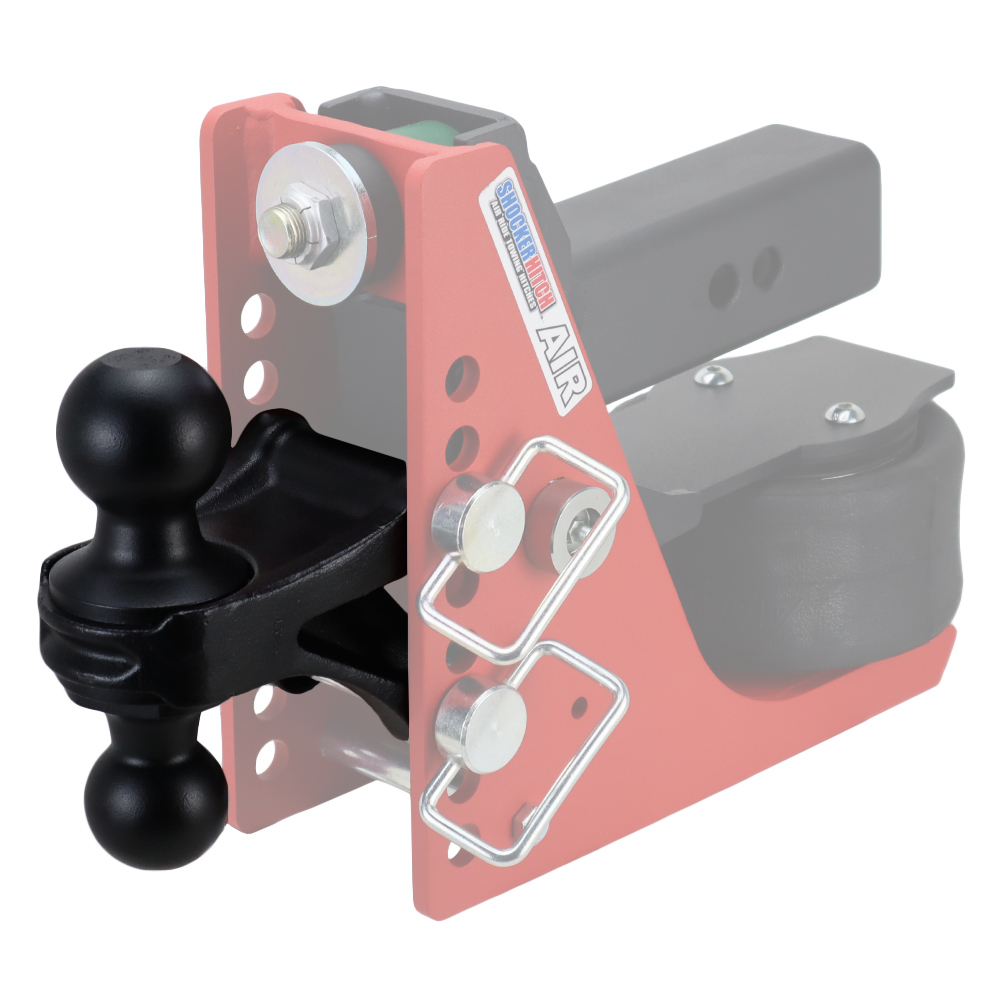

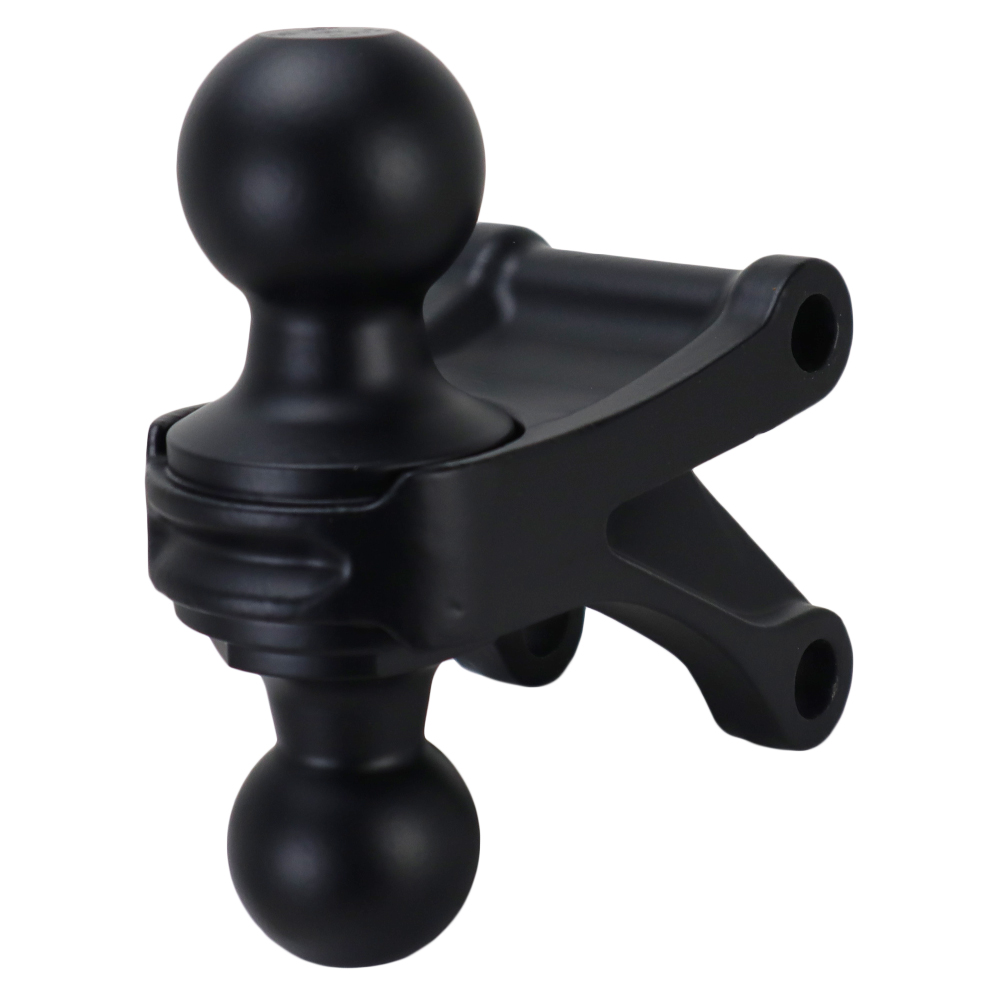

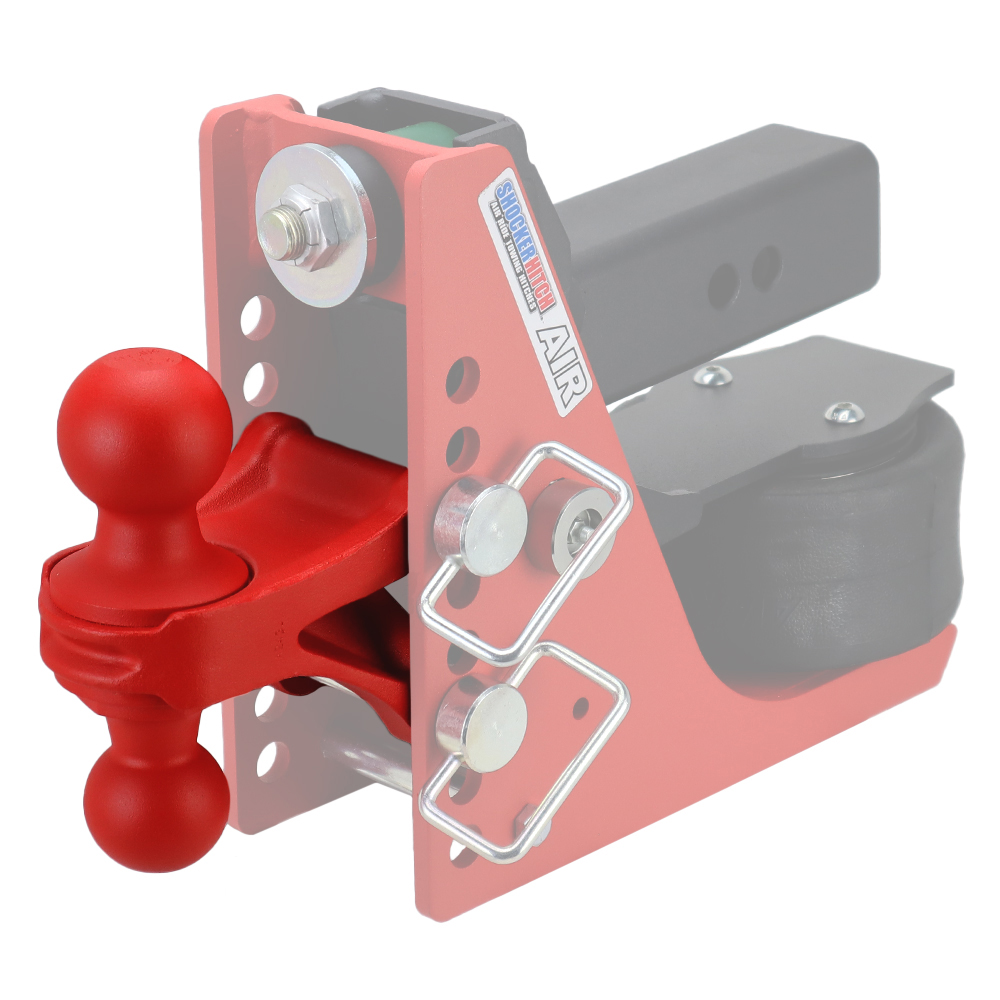

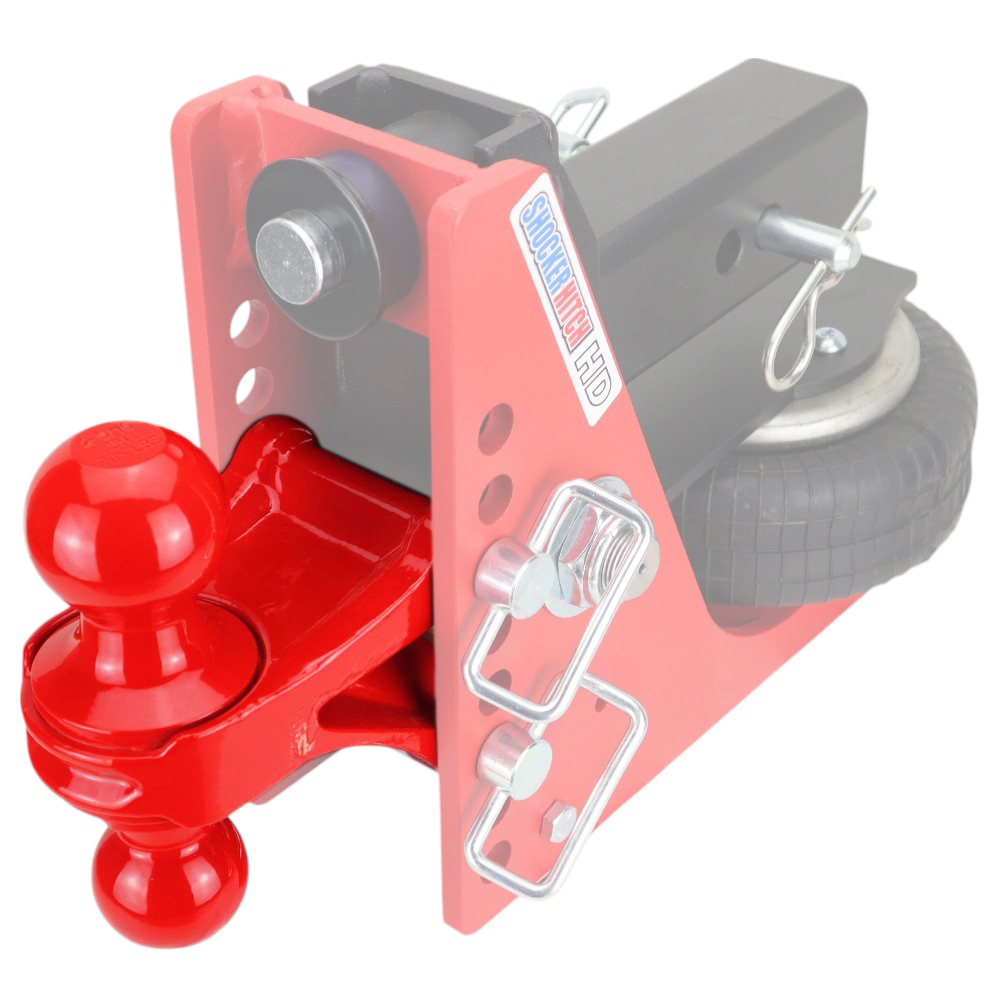

Shocker Combo Multi Ball Mount Attachment

Drop/Rise Guide

• Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide
  – Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  – Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  – Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  – Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
  – Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
  – Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
  – Clevis Mount: 3.5″ Drop to 7.5″ Drop | 20,000 lbs.
  – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.

• Impact Cushion Hitch Mount Drop & Rise + Rating Guide:
  – Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  – Drop Ball: 0″ Rise to 7.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  – Pintle Hook: 4″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
  – Pintle & Ball: 4″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
  – Drawbar: 4″ Rise to 4″ Drop | 20,000 lbs.
  – Clevis Mount: 1.5″ Rise to 5.5″ Drop | 20,000 lbs.
  – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.

• XR Series 8 Hole Hitch Mount Drop & Rise + Rating Guide: (Add 1.5″ if using 10-Hole Frame)
  – Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  – Drop Ball: 0″ Rise to 7-1/2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  – Pintle Hook: 6″ Rise to 6″ Drop | 10-Ton 20,000 lbs.
  – Pintle & Ball: 6″ Rise to 6″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
  – Drawbar: 4″ Rise to 4″ Drop | 20,000 lbs.
  – Clevis Mount: 1-1/2″ Rise to 6-1/2″ Drop | 20,000 lbs.
  – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above

Safety Notice: Towing capacity is limited by the lowest rated component.

Check out our guide to find out how much drop or rise you need.
