Product Description
- Weld on Outer Tube Sleeve & Inner Stem & Demco Gooseneck Coupler Kit: Available with outer tube sleeve diameters of 5″ & 4.5″.
- Heavy Duty Thick Wall Design Outer Sleeve & Stem for Superior Strength: Outer sleeve is 20″ in height with 2 set bolts with jam nuts along with safety through pin & clip. Available with Inner Diameter 4″ Square & 4.5″ Square gooseneck stems. Reinforced collar and fabricated & formed outer for added strength featuring 2 set bolts & jam nuts.
- Extra Plating for Welded Stem & Coupler Connection: Additional plating used to weld coupler to stem for long term strength and durability.
- Auto Latching Demco Gooseneck Coupler for 2-5/16″ Ball: Auto latches on to gooseneck ball. Easy to use handle, just lift up to release from gooseneck trailer ball.
- 30,000 lbs GTW & 6,000 lbs Tongue Weight Capacity: Built for the heavy duty gooseneck hauling. Both out and inner tubing is thick walled for extra strength.
- Raw Steel Option: Comes in raw steel and ready to weld onto the front of a gooseneck trailer. This is the set up gooseneck trailer manufactures use.
- Inner Stem has 4 Adjustment Holes & Gooseneck Coupler for 2-5/16″ Gooseneck Ball: Stem has 4 adjustment holes that holes are 2-3/4″ apart. Built for heavy duty hauling.
- 2 Kit Sizes to Choose From: 4.5″ OD Sleeve with 4″ Square Gooseneck coupler with straight pin holes, 5″ OD Sleeve with 4.5″ Square Gooseneck coupler with straight pin holes.
- Sold as a Set – Includes Outer Sleeve Tube, Inner Stem with welded on Gooseneck Coupler: Includes complete outer sleeve with two set bolts, two jam nuts, safety through pin with clip along with inner tube gooseneck stem & demco coupler for 2-5/16″ gooseneck ball.
- Professional Welding Required for Installation: Professional welding is required for proper installation and weight rating.
- Optional Demco Gooseneck Locks: Box style coupler & set bolt lock kit is part #: SH-GDSP-400GL-BLK. Puck lock style coupler lock for demco gooseneck coupler is part #SH-9100-350 and set bolt lock, part # SH-400GL-ISP-BLK. All lock options sold separately.
- What an air ride upgrade for your gooseneck trailer? Check out our Gooseneck Surge Air Hitches.
FAQ for Gooseneck Trailer Towing
- Do I Need an Offset Gooseneck Coupler?
- Advantages of Air Hitches
- Gooseneck Trailer Chucking
- Do I Have a Gooseneck or 5th Wheel?
- What is Towing Capacity?
- Shocker Gooseneck Hitch Uses
- Types of Trailers for Towing with a Pickup Truck
- Types of Gooseneck Balls
- Why Grease Your Hitch Ball?
- How to Back Up a Gooseneck Trailer?
- How To Level Trailer
- How To Fix Truck Squatting

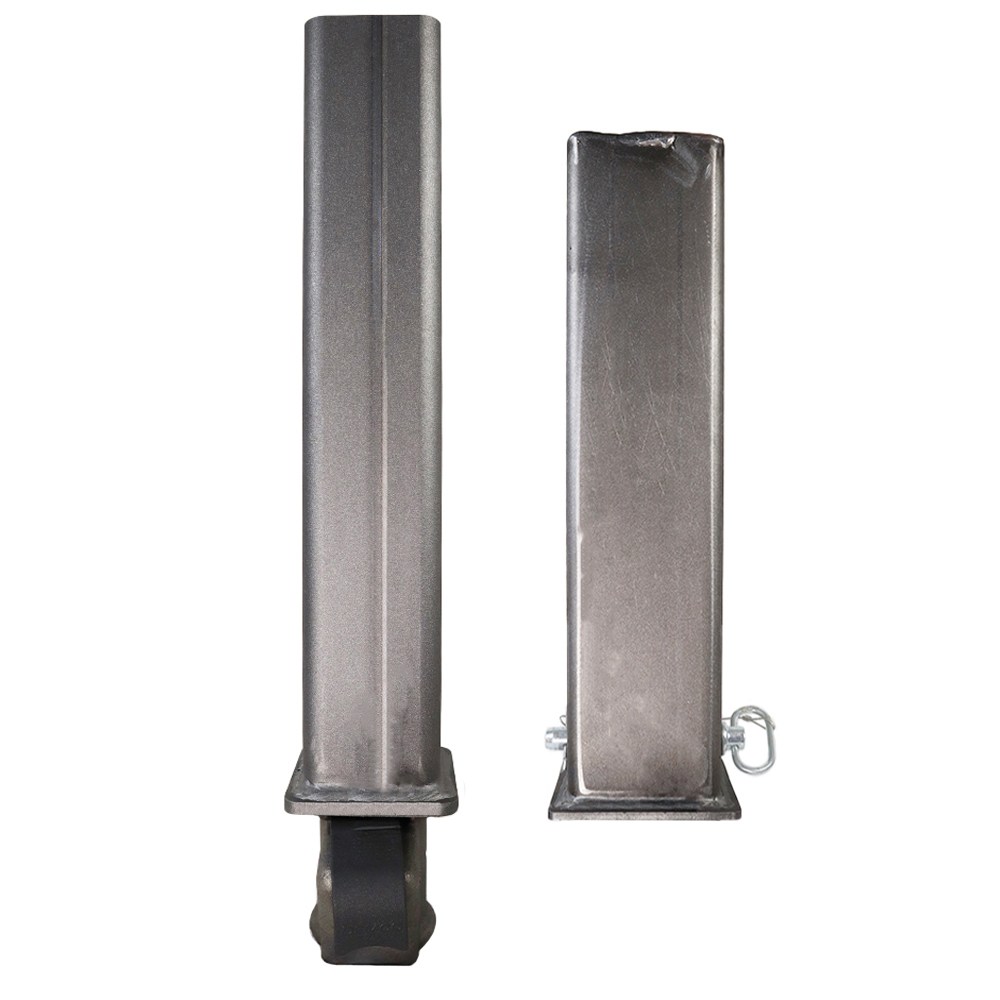

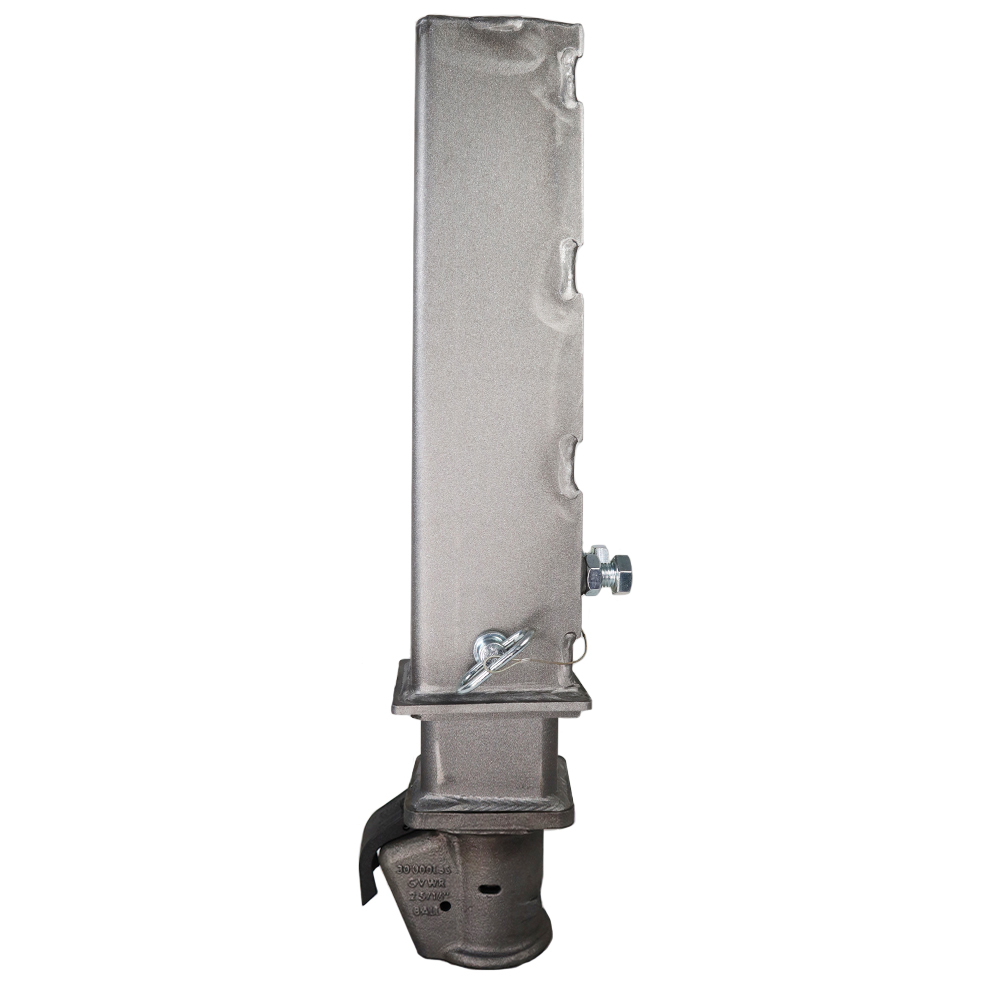

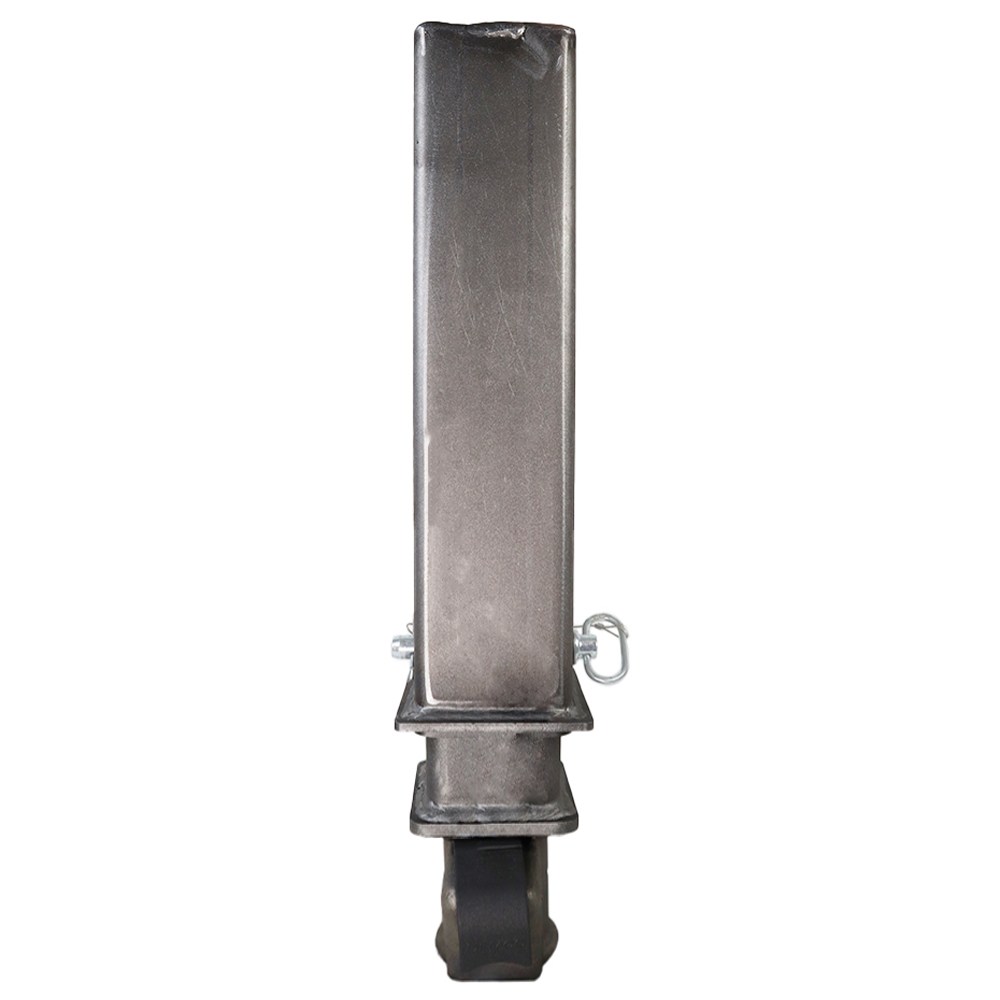

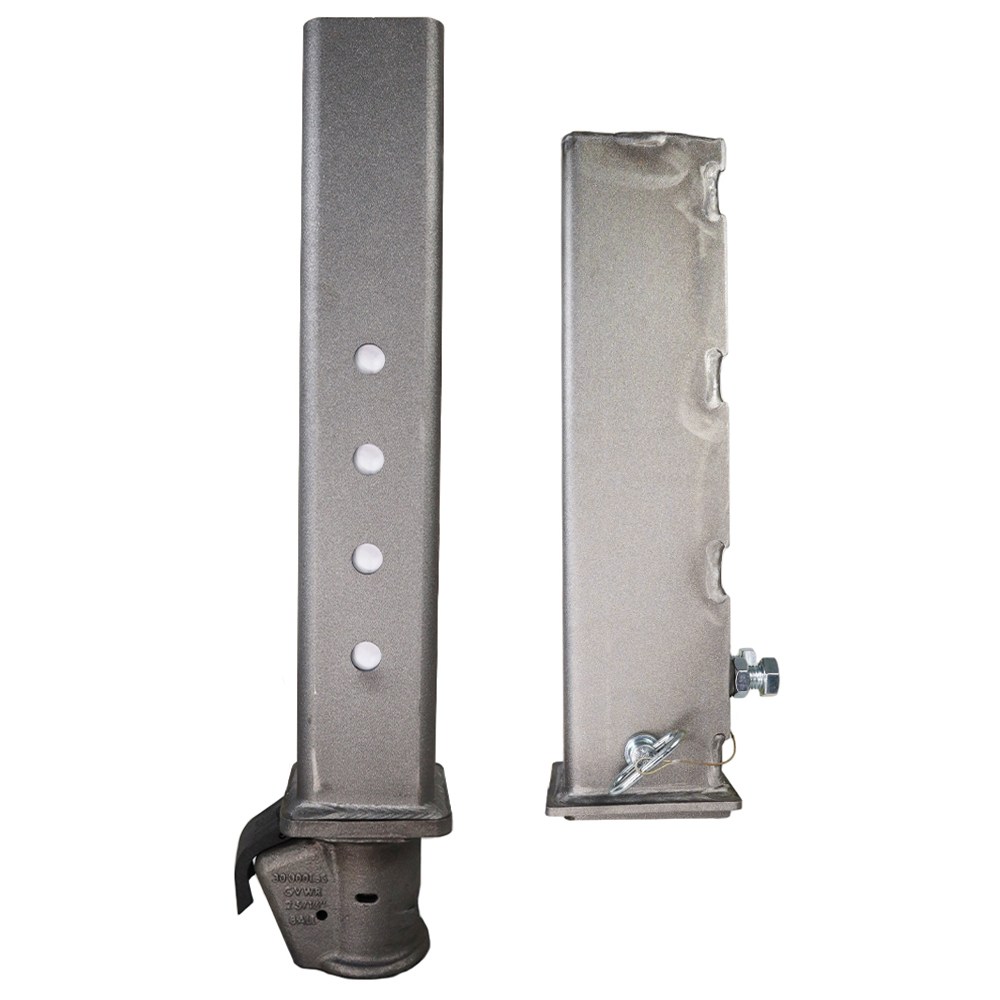

Weld on raw steel thick walled square outer tube sleeve and inner gooseneck stem and ez latch demco coupler for 2-5/16″ gooseneck ball. Design for offering 30,000 lbs gtw on a gooseneck trailer. The package set features both the thick wall inner stem & outer sleeve along with an adjustable height demco gooseneck coupler. Inner tube replacement gooseneck stem features the demco ez latching coupler that will auto latch onto the ball. Outer square sleeve is available in 2 sizes; 5″OD x 4.5″ ID and 4.5″ OD with 4″ ID. Available with inner square stem options of 4-1/2″ & 4″. Thick walled square inner stem tube options have extra heavy duty plating to weld coupler to stem for long term strength and durability. Upgrade your gooseneck trailer with the easy to use, patented demco coupler for gooseneck trailers. Available in raw steel. Professional welding required installation. Works great on gooseneck style trailers; dumps, flatbed, horse, race trailers and more. Square gooseneck outer sleeve, inner stem & coupler options can be ordered in raw steel as a set. This is commonly ordered by gooseneck trailer manufactures and professional welding is required to weld on the square outer sleeve tube on the gooseneck trailer tongue.
Looking for an air ride upgrade for your gooseneck trailer? We also manufacture Gooseneck Air Hitches.
